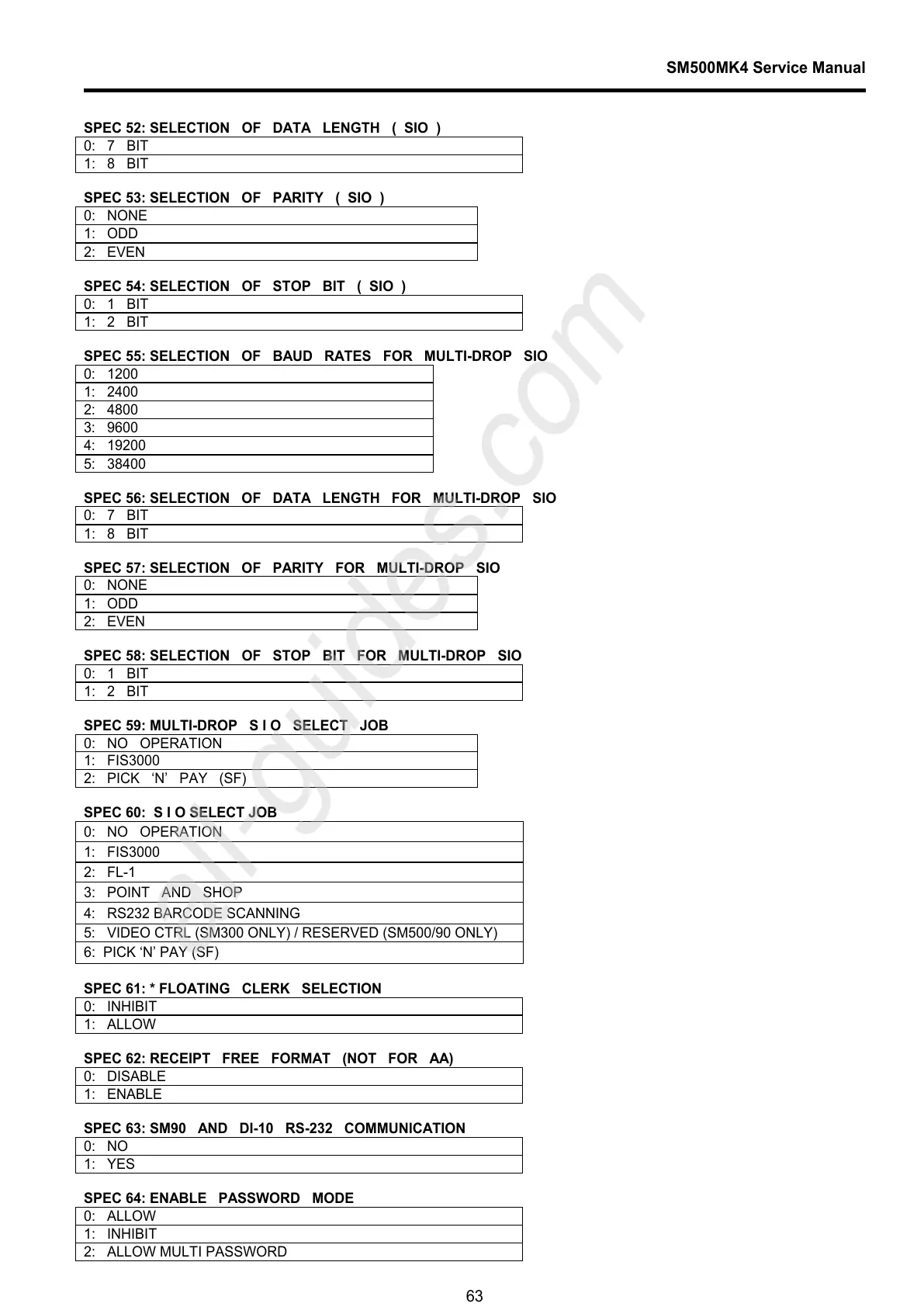

SM500MK4 Service Manual
63
SPEC 52: SELECTION OF DATA LENGTH ( SIO )
0: 7 BIT
1: 8 BIT
SPEC 53: SELECTION OF PARITY ( SIO )
0: NONE
1: ODD
2: EVEN
SPEC 54: SELECTION OF STOP BIT ( SIO )
0: 1 BIT
1: 2 BIT
SPEC 55: SELECTION OF BAUD RATES FOR MULTI-DROP SIO
0: 1200
1: 2400
2: 4800
3: 9600
4: 19200
5: 38400
SPEC 56: SELECTION OF DATA LENGTH FOR MULTI-DROP SIO
0: 7 BIT
1: 8 BIT
SPEC 57: SELECTION OF PARITY FOR MULTI-DROP SIO
0: NONE
1: ODD
2: EVEN
SPEC 58: SELECTION OF STOP BIT FOR MULTI-DROP SIO
0: 1 BIT
1: 2 BIT
SPEC 59: MULTI-DROP S I O SELECT JOB
0: NO OPERATION
1: FIS3000
2: PICK ‘N’ PAY (SF)
SPEC 60: S I O SELECT JOB
0: NO OPERATION
1: FIS3000
2: FL-1
3: POINT AND SHOP
4: RS232 BARCODE SCANNING
5: VIDEO CTRL (SM300 ONLY) / RESERVED (SM500/90 ONLY)
6: PICK ‘N’ PAY (SF)
SPEC 61: * FLOATING CLERK SELECTION
0: INHIBIT
1: ALLOW
SPEC 62: RECEIPT FREE FORMAT (NOT FOR AA)
0: DISABLE
1: ENABLE
SPEC 63: SM90 AND DI-10 RS-232 COMMUNICATION
0: NO
1: YES
SPEC 64: ENABLE PASSWORD MODE
0: ALLOW
1: INHIBIT
2: ALLOW MULTI PASSWORD
