Network configurations Network topologies
XBee®-PRO 900HP/XSC RF Modules
230

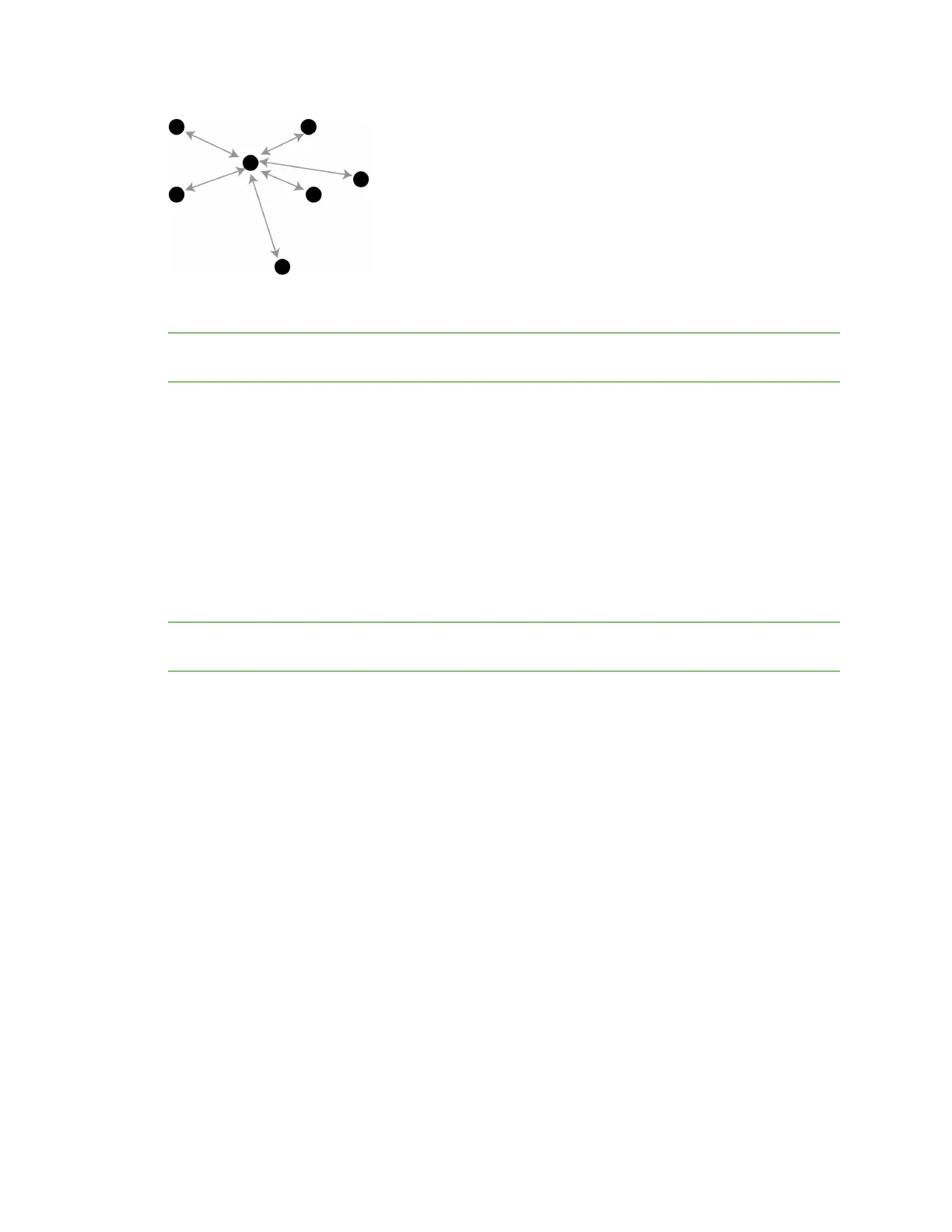

Sample network profile (Broadcast communications)
Note Assume default values for all parameters that are not in this list. These profiles do not reflect
addressing implementations.
Base:
1. Send MY 0 to set the source address to 0x00.
2. Send DT FFFF to set the destination address to 0xFFFF.
Remotes:
1. Use XCTU or another terminal program to send the AM command. See AM (Auto-set MY) for
details.
2. Send DT 0 to set the destination address to 0x00.
Sample network profile (Acknowledged communications)
Note Assume the default value for all parameters that are not in this list. These profiles do not reflect
addressing implementations.
Base:
1. Send MY 0 to set the source address to 0x00.
2. Send DT FFFF to set the destination address to 0xFFFF.
3. Send RR 3 to set the number of retries to 3.
Remotes:
1. Use XCTU or another terminal program to send the AM command.
2. Send DT FFFF to set the destination address to 0xFFFF.
3. Send RR 3 to set the number of retries to 3.
Basic RF modes
Streaming, Multi-Transmit, Repeater, and Polling.
Acknowledged RF mode
Acknowledged and Polling.
Peer to peer networks
This following section provides the RF communication type and RF mode for peer-to-peer networks.
