DigiDesign Mbox 2 User Manual

Appendix B: Configuring AMS (Mac OS X Only) 59
appendix b
Configuring AMS (Mac OS X Only)
Audio MIDI Setup
Pro Tools recognizes the ports on your MIDI in-
terface as generic ports. With Mac OS X, you use
Apple’s Audio MIDI Setup (AMS) utility to iden-
tify external MIDI devices connected to your
MIDI interface and configure your MIDI studio
for use with Pro Tools.
To configure your MIDI studio in AMS:
1 Do one of the following:
• Launch Audio MIDI Setup (located in Ap-
plications/Utilities).
– or –
• In Pro Tools, choose Setup > MIDI > MIDI
Studio.
2 Click MIDI Devices. AMS scans your system
for connected MIDI interfaces. If your MIDI in-
terface is properly connected, it appears in the
window with each of its ports numbered.
3 For any MIDI devices connected to the MIDI
interface, click Add Device. A new external de-
vice icon with the default MIDI keyboard image
will appear.
4 Drag the new device icon to a convenient lo-
cation within the window.

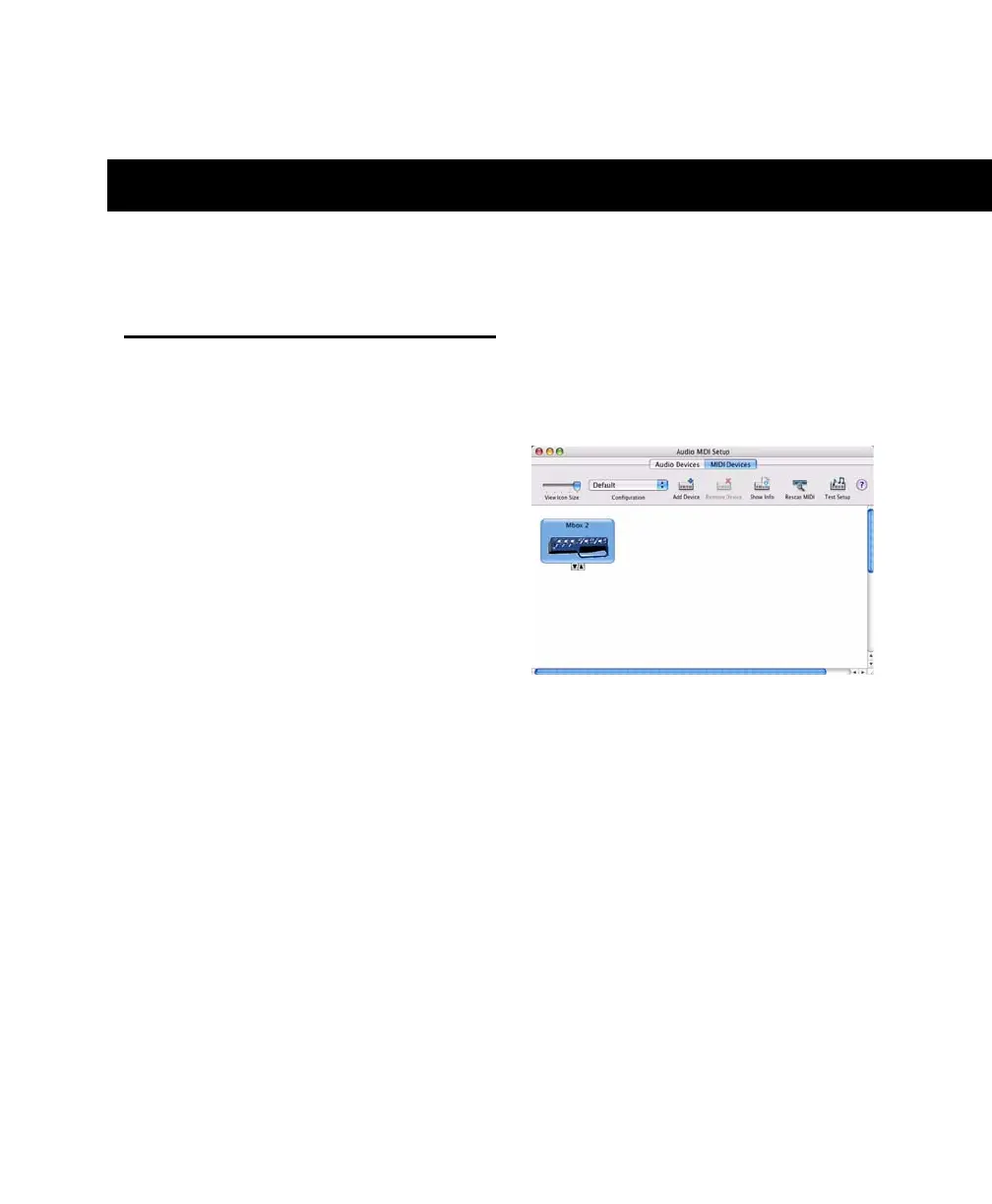

Audio MIDI Setup (MIDI Devices)
