DigiShot plus.4G - Page 162

UTM-00339 | Rev 19
Page 162 of 253
DetNet South Africa Copyright © 2021

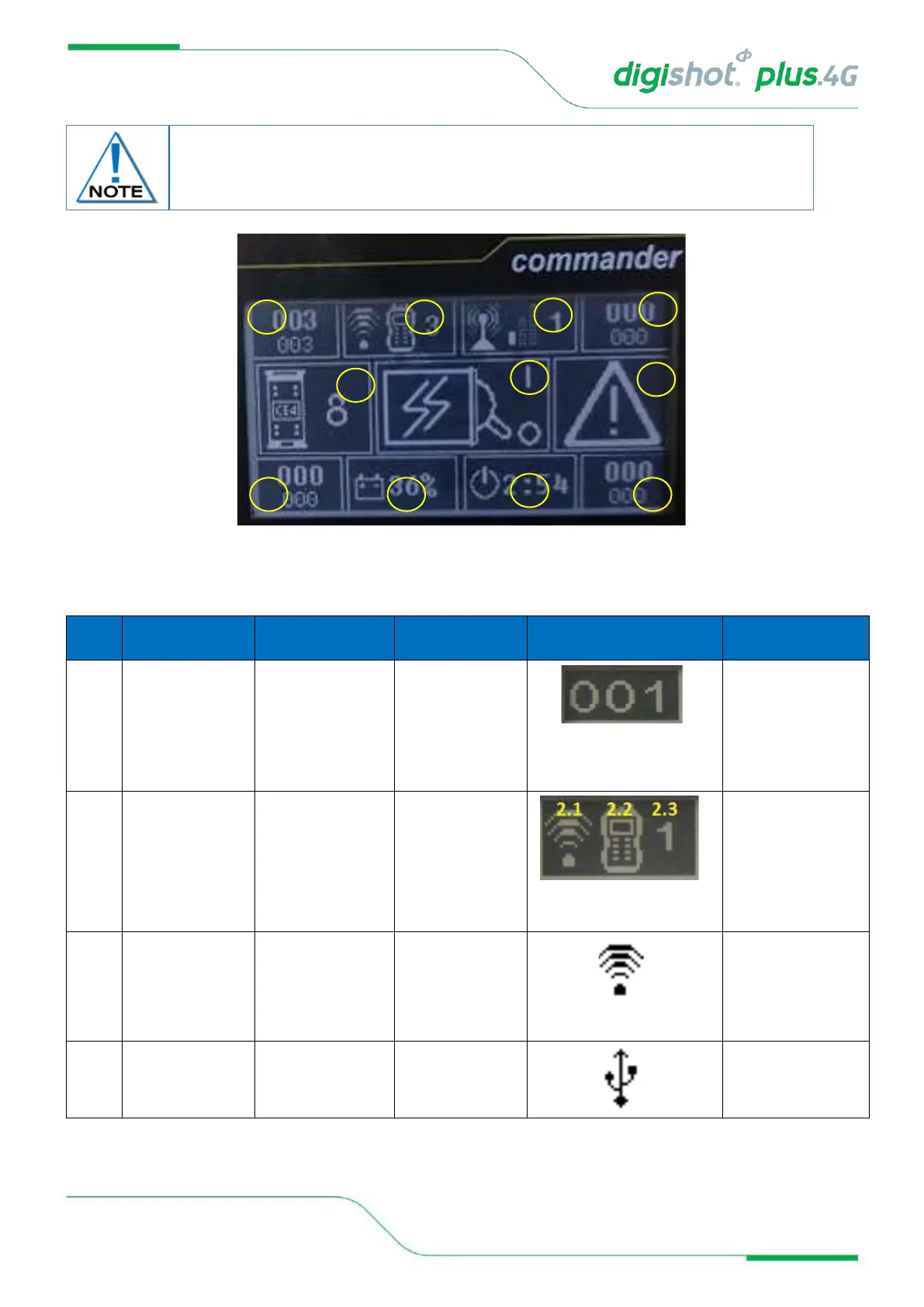

Figure 11: DigiShot
®
Plus 4G Commander Bench Mode Screen
Table 10: DigiShot
®
Plus 4G Commander Bench Mode Screen Icons
Item
#
Description
Detail
Indication
Icon
Options / Variants /
Description
1
Detonator count of
each of the Bench
Commander's
channels
Indicates the total
number of dets known
to the commander for
this channel. Not all
of the dets are
necessarily good.
Detcount
Det count; Min = 000,
Max = 400
2
Wi-Fi / USB
connectivity
indication area (CE4
Tagger or PC)
Indicates whether
Commander is
connected via Wi-Fi
or USB
Connected to
something
As simultaneous Wi-Fi
and USB connections
are allowed (one of
each), this section can
indicate a combination
of connections.
2.1
Connection type
Indicates the
connection type and
will also show the last
active connection type
when disconnected
Connected via Wi-Fi
Connected via USB
The Detail screen below is displayed as a black layout on a white background. The
illustration below has a black background only to improve the visibility of the icons
in this manual.
5
1
1
2
3
4
6
1
7
8
1
