23
ANDROID
I / O - USB
Mini USB Connector
Used to connect the X-One Android to a PC via ADB. You can use a standard USB “A” -> mini USB “B” cable.
13
26 25
11
24
10
23
9
22
8
21
7
20
6
19
5
18
4
17
3
16
2
15
12 1
14

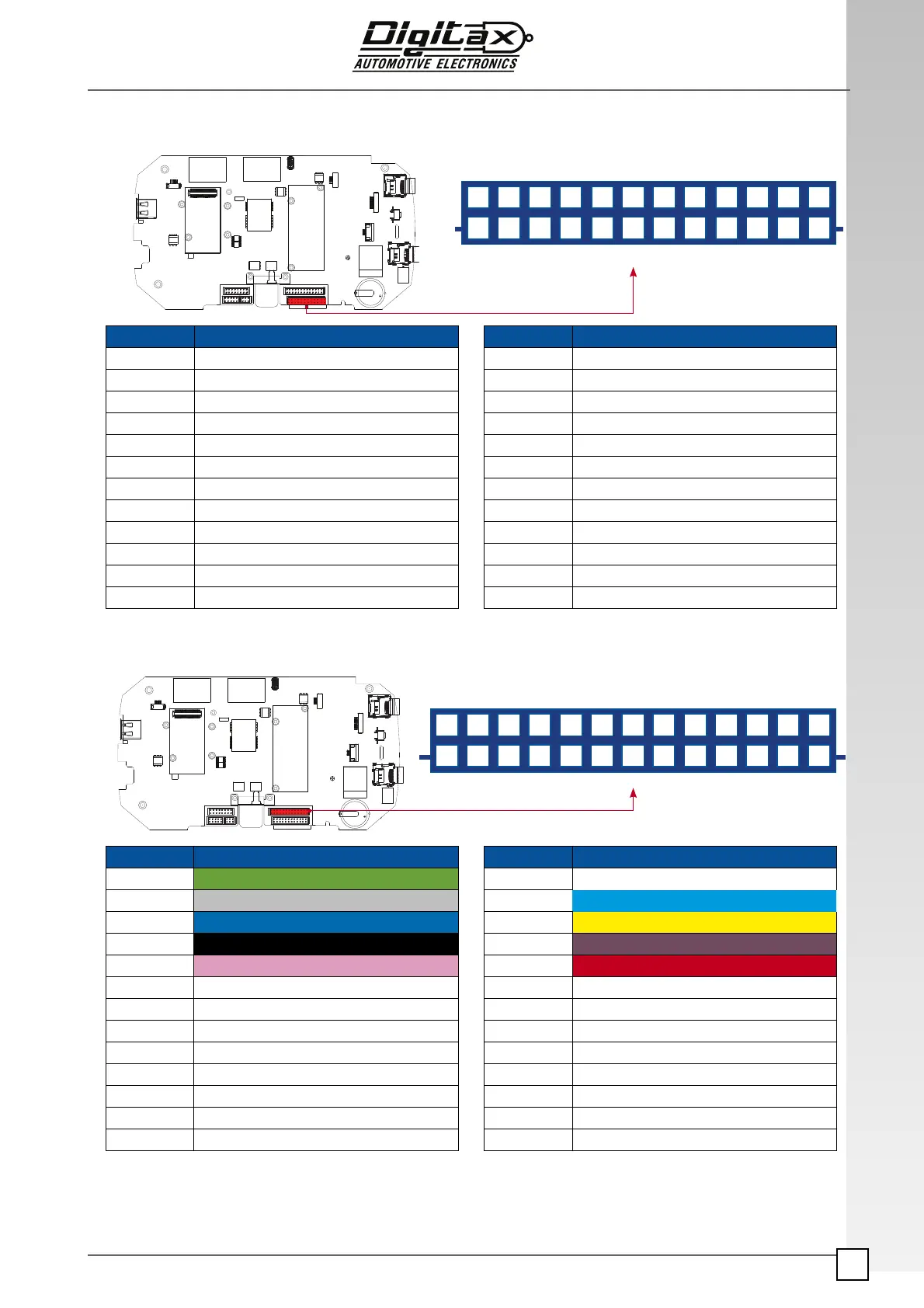

PIN FUNCTION PIN FUNCTION
1 INPUT 1 14 POWER OUT 1
2 INPUT 2 15 POWER OUT 2
3 INPUT 3 16 POWER OUT 3
4 GND 17 ANALOGIC INPUT 1
5 NO CONNECTION 18 ANALOG INPUT 2
6 NO CONNECTION 19 EXT. MICROPHONE GND
7 COM 12 - RXD - 485 Version Data - 20 EXT. MICROPHONE INPUT
8 COM 12 - TXD - 485 Version Data + 21 EXT. SPEAKER -
9 GND 22 EXT. SPEAKER +
10 USB 4 - POWER 5V 23 USB 3 - POWER 5V
11 USB 4 - M 24 USB 3 - M
12 USB 4 - P 25 USB 3 - P
13 USB 4 - GND 26 USB 3 - GND
PIN FUNCTION PIN FUNCTION
1 COM 5 - DSR 13 COM 5 - TXD
2 COM 5 - RI 14 COM 5 - RXD
3 COM 5 - DTR 15 COM 5 - RTS
4 COM 8 - TXD 16 COM 5 - CTS
5 COM 8 - RXD 17 COM 5 - DCD
6 GND 18 GND
7 COM 10 - TXD 19 COM 6
8 COM 10 - RXD 20 COM 6
9 GND 21 GND
10 COM 11 - TXD - 485 Version Data - 22 COM 7
11 COM 11 - RXD - 485 Version Data + 23 COM 7
12 GND 24 GND
Mod.
12
24
11
23
10
22
9
21
8
20
7
19
6
18
5
17
4
16
3
15
2
14
1
13
