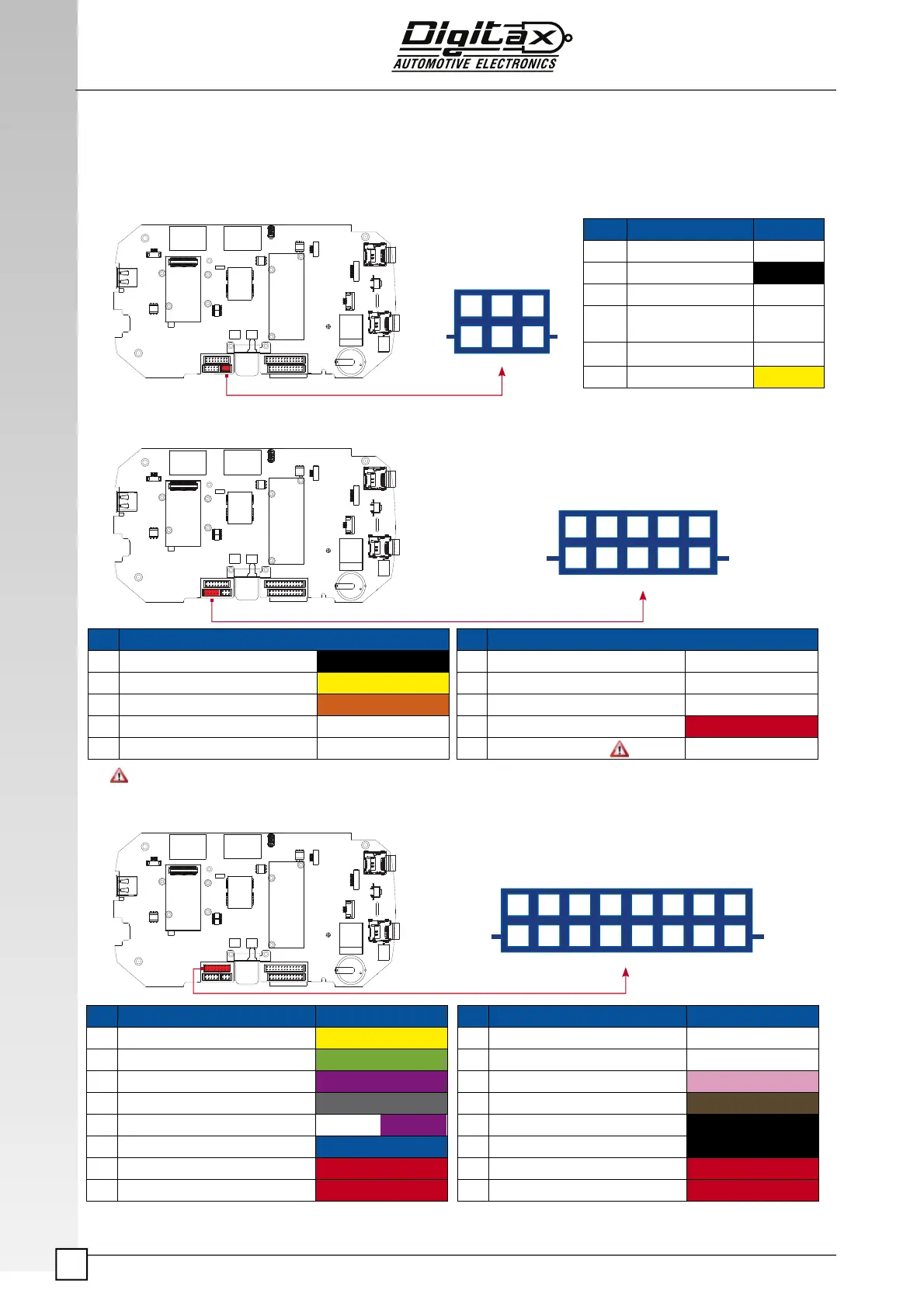

Connectors and Cables
PIN FUNCTION PIN FUNCTION
1 GND
BLACK
6 Taximeter COM1 TXD
2 Taximeter Printer / COM2 TXD YELLOW 7 Taximeter COM1 RXD
3 Taximeter Printer / COM2 RXD ORANGE 8 Taximeter PIO !, Dallas 1 Wire Net
4 Taximeter Aux2 Input, ac" ve low 9 +8/32V OUTPUT RED
5 Taximeter Aux1 Input, ac" ve low 10
Taximeter PIO 1 Input
PRINTER, I/O
POWER
ODOMETER / CAN
PIN FUNCTION CABLE COLOUR PIN FUNCTION CABLE COLOUR
1 POWER 4 Taximeter YELLOW 9 POWER 5 Taximeter
WHITE
2 POWER 3 Taximeter GREEN 10 POWER 5 Taximeter
WHITE
3 POWER 2 Taximeter VIOLET 11 PASSENGER Sensor Ac" ve Low PINK
4 POWER 1 Taximeter GREY 12 + Light Ac" ve High BROWN
5 PANIC BUTTON Ac" ve Low WHITE VIOLET 13 GND BLACK
6 ENGINE Ac" ve High BLUE 14 GND BLACK
7 +8/32V RED 15 +8/32V RED
8 +8/32V RED 16 +8/32V RED
3
6
2
5
1
4
5
10
4
9
3
8
2
7
1
6
8
16
7
15
6
14
5
13
4
12
3
11
2
10
1
9
ATTENTION: Printer requires ONLY max 16V input. Otherwise the Printer will be damaged.
PIN FUNCTION
1 SENS.MOV2/CAN2 H
2 GND BLACK
3 CAN H WHITE
4 ODOMETER/CAN2L WHITE
(Shielded)
5 +8/32V
6 CAN L
