DigiTech JamMan SOLO XT User Manual

9

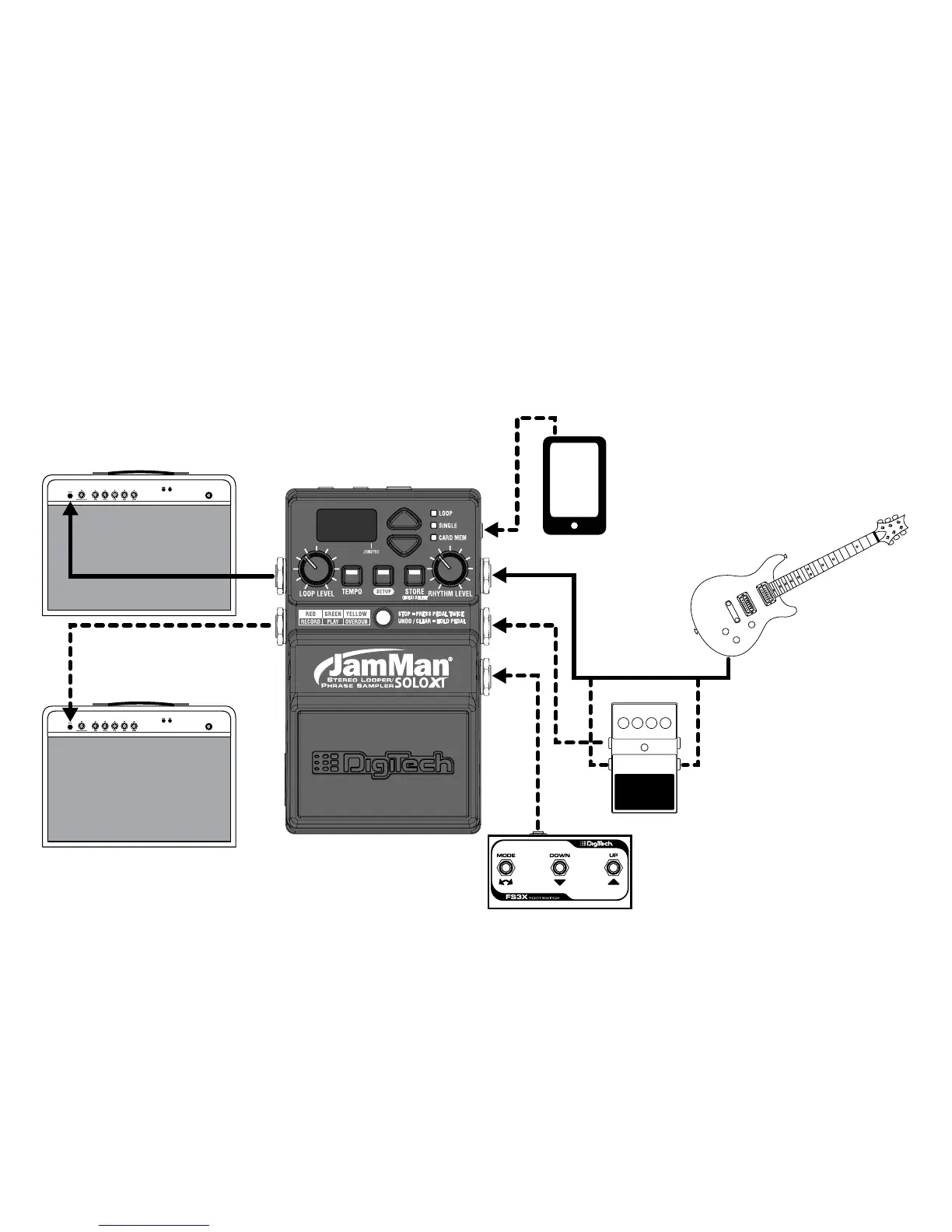

Connection Diagrams
Connecting to the Amp Input
JAMSYNC
20
In 1 (Mono)
In 2
Out 1 (Mono)
Out 2
Connect your guitar/bass to
the LEFT INPUT.
Connect a music player or some
other audio source to the AUX
IN jack (optional).
Connect optional FS3X to
the JamMan Solo XT’s FOOT-
SWITCH input for hands-free
control.
Connect other
pedals in front of the
JamMan Solo XT
(optional).
Connect the RIGHT OUT jack to a
second amp’s input (optional).
Connect the JamMan™ Solo XT’s
LEFT OUT jack to the amp’s input.

DigiTech JamMan SOLO XT Specifications

General

Sampling Rate	44.1 kHz
A/D/A Conversion	24-bit
Type	Looper Pedal
Storage	Internal, SD Card (optional)
Inputs	1 x 1/4" (instrument), 1 x 1/8" (aux in)
Outputs	1 x 1/4" (mono)
USB	1 x Mini-B
Power Supply	9V DC power supply
