Dinli DL702 - Rear Hub Servicing

【2-9】
WHEELS/TIRES

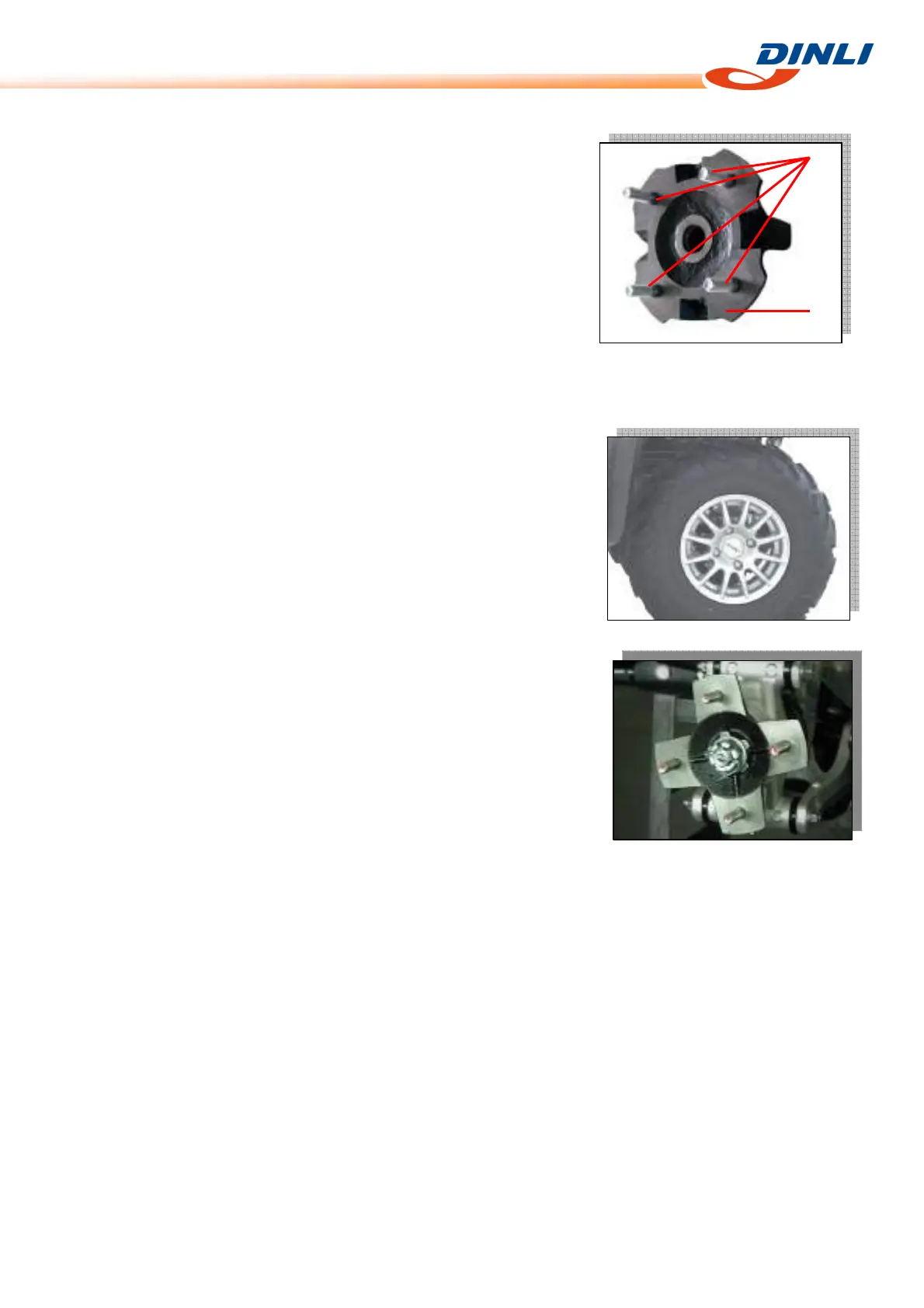

Front Hub Disassembly/Assembly
● Don not press the hub bolts out.
If any hub bolt [A] is damaged, replace the hub [B] and bolts as a
unit.
Rear Hub
Rear Hub Installation
● Grease the axle spindle.
● Apply non-permanent locking agent: Rear Axle Nuts
● Tighten:
Torque - Rear Axle Nut: 109 N-m (11.0 kgf-m, 80ft-lb)
● Insert a new cotter pin and bend it over the nut.
Rear Hub Disassembly/Assembly
● Do not press the hub bolts out.
If any hub bolt is damaged, replace the hub and bolts as a unit.
A
B
