【7-12】
E
LECTRICAL SYSTE
M
● Be sure the socket is clean.
● Insert the new bulb by aligning the tang with the notch in the
headlight unit.
● Push the holder in, turn it clockwise, and release it, it should lock
in position.
● Fit the dust cover completely.

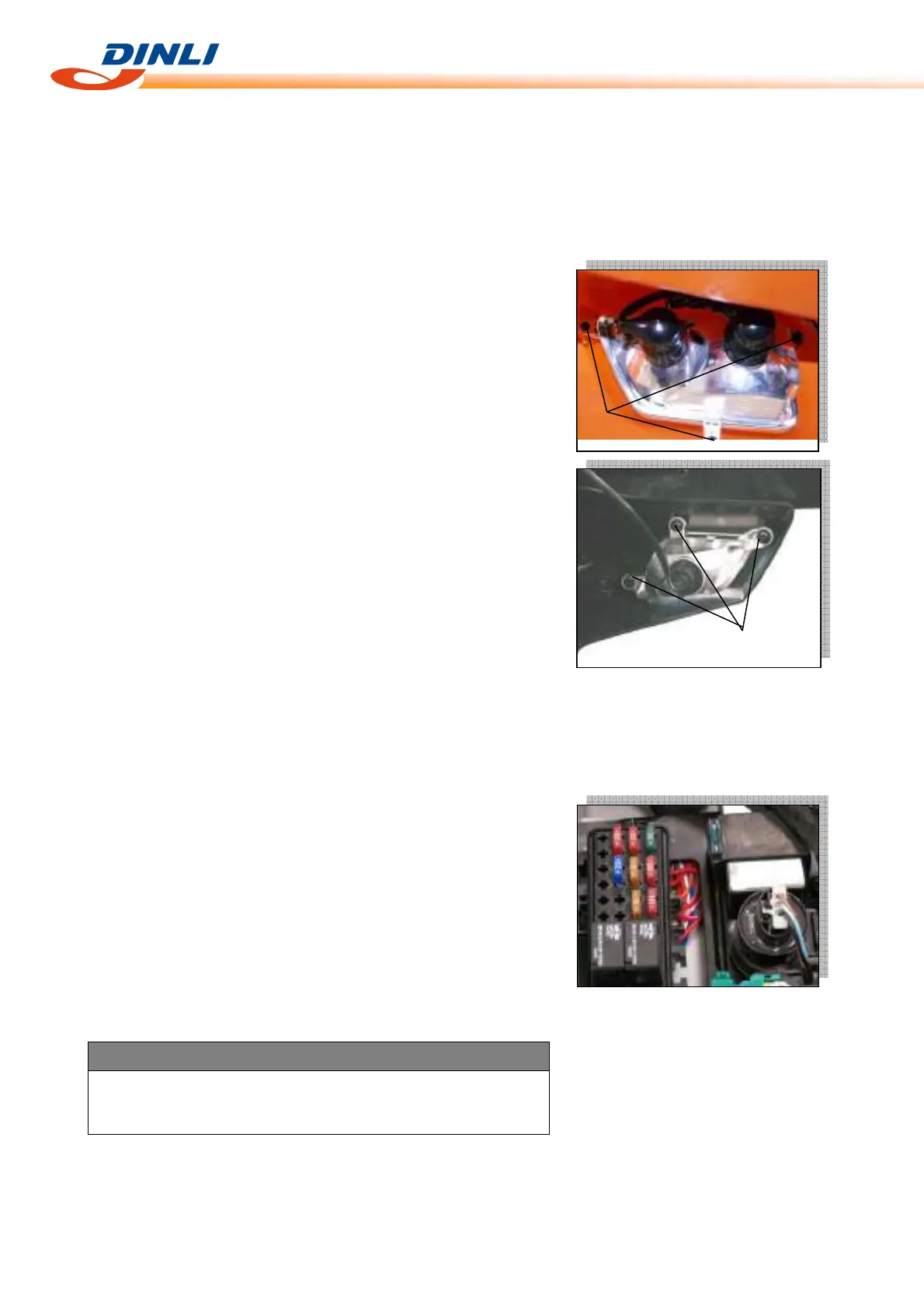

Taillight Bulb Replacement
● Remove:
Taillight Bracket Screw *3 [A]
Taillight Unit
● Insert the new bulb
Indicator Bulb Replacement
● Remove:
Indicator Screw [B]
● Insert the new bulb
Neutral Light Bulb Replacement
● Please refer the Headlight Bulb Replacement
FUSES
Main Fuse Removal
● Remove the seat (see Frame chapter)
● Remove the fuse case cap [A] and take out the fuse [B].
Fuse Inspection
● Inspect the fuse element.
 If it is blown out, replace the fuse. Before replacing a blow fuse,
always check the amperage in the affected circuit. If the
amperage is equal to or greater than the fuse rating, check the
wiring and related components for a short circuit.
A
B
CAUTION
When replacing a fuse, be sure the new fuse matches the
specified fuse rating for that circuit. Installation of a fuse with a
higher rating may cause damage to wiring and components.
