Dinli DL702 - Timing Gear

【6-20】
E
NGINE
TIMING GEAR
Timing gear adjust

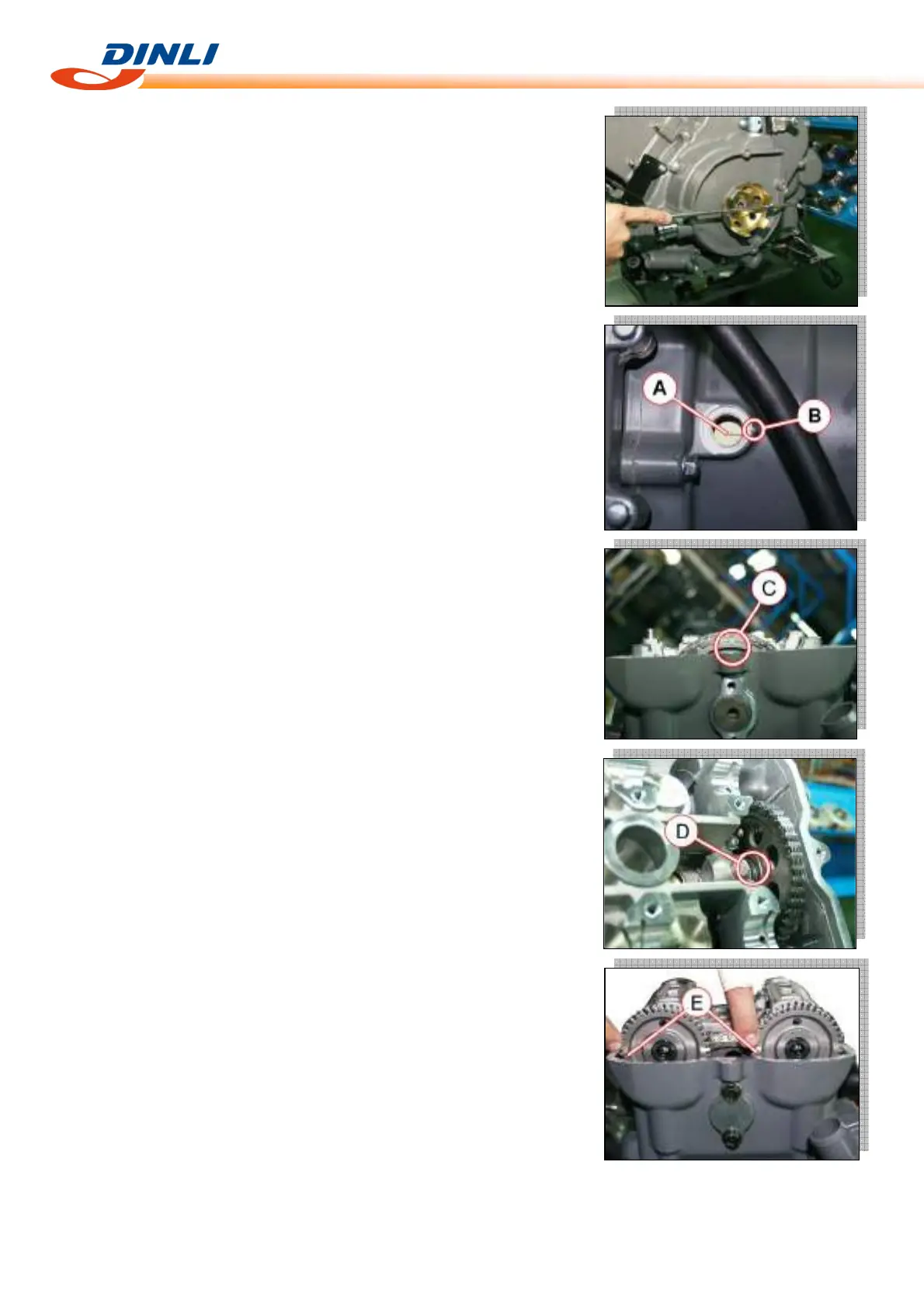

● Remove the Cylinder head cover and camshaft.
● Remove the Recoil starter.
● Leave the Starter cup on the left crankcase.
● Use tool to adjust the Start cup to align the TDC line [A] with the
index mark [B] of the crankcase to make the piston to the highest
position.
● Make the mark [C] on the Timing chain driver gear to the highest
position. Meanwhile the mark on the opposite side the Timing
chain driver gear is also aligned with the mark position [D].
● Assemble the camshafts by aligning the engraved marks [E] with
the mating surface of the cylinder head cover.
