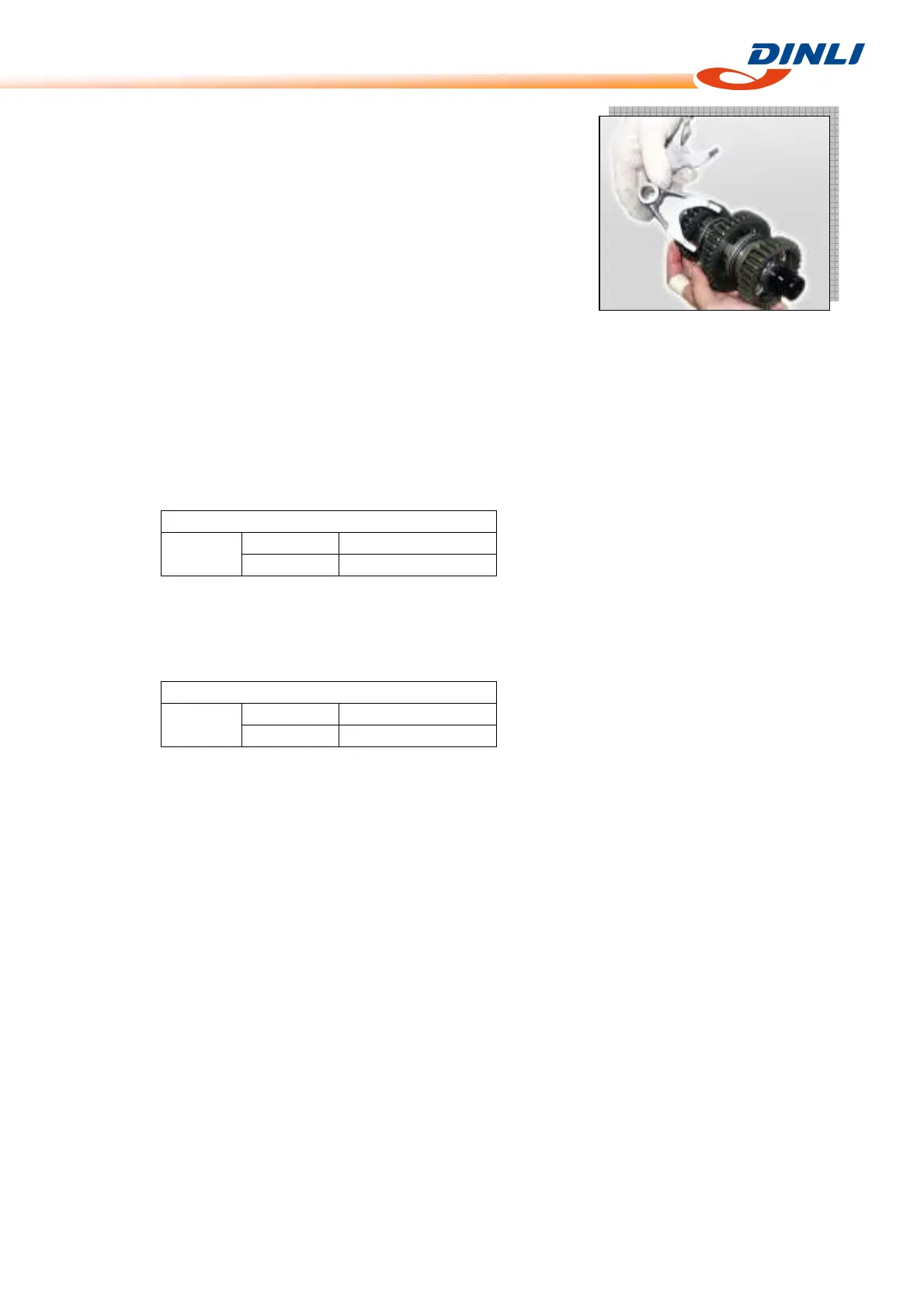

【6-27】
NGINE
TRANSMISSION
Visual checking – Shift Fork and Drum
● Check for ware and damage.
● If any ware on the Fork craw portion, replace with new one.
Visual checking – Main Shaft and Counter Shaft Assy.
● After disassembling, check for ware and damage on dug clutch
portion, gears and spline portions.
● If any ware and damage, replace with new one.
Width of Shift Fork groove
● Check for ware and scratch in the Fork groove.
● Measure the width of Shift Fork groove with caliper gauge.
Width of Shift Fork groove
Standard
Reverse 5.60 to 5.67 mm
High 5.60 to 5.67 mm
Thickness of Shift Fork craw
● Measure the thickness of Shift Fork craw with micrometer.
Thickness of Shift Fork craw
Standard
Reverse 5.40 to 5.50 mm
High 5.40 to 5.50 mm
REASSEMBLY
Please reverse the disassembly steps to reassembly.
