【6-5】
NGINE

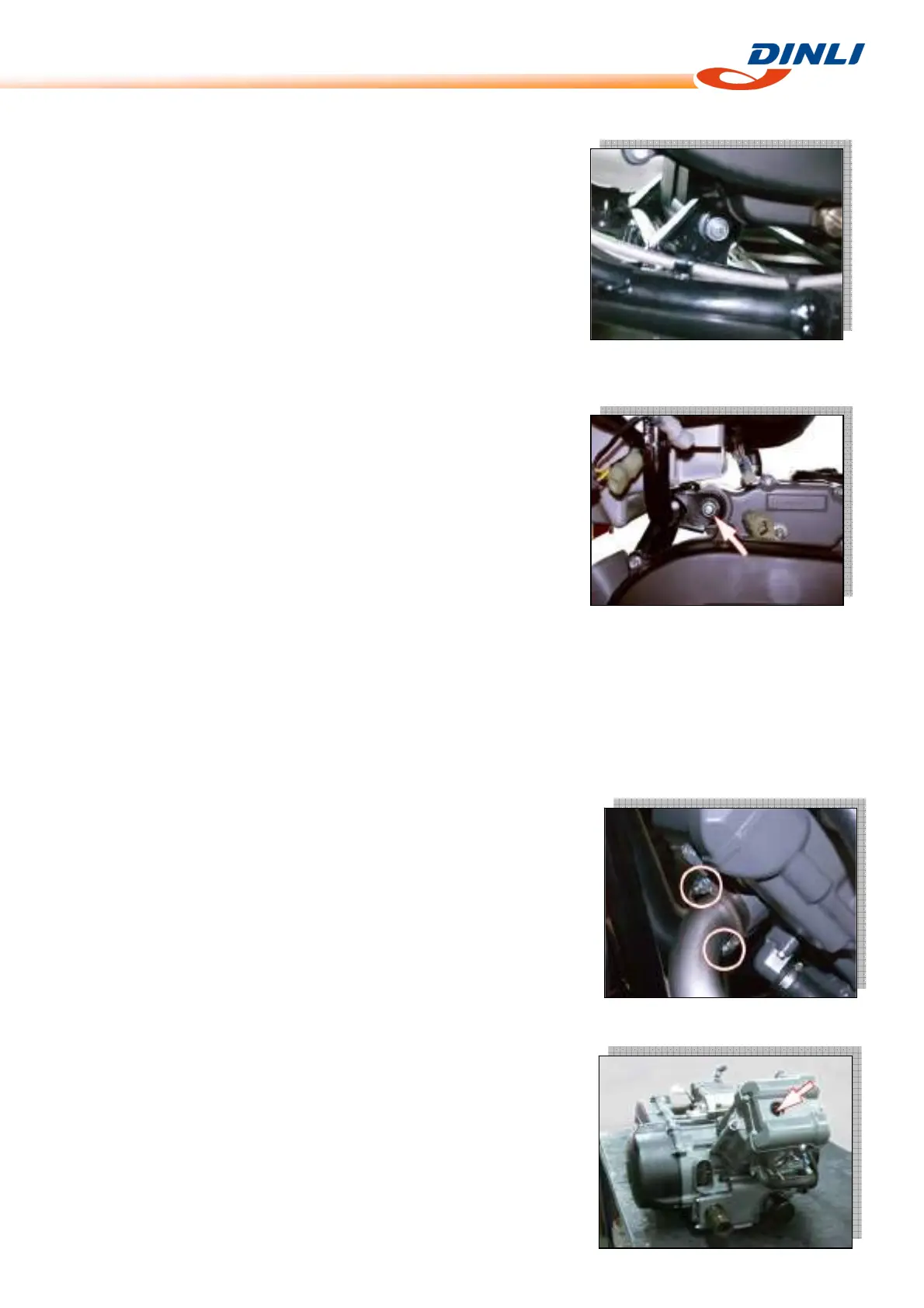

● Remove the foot brake pedal.
● Remove the front differential mounting bolts/nuts
● Slide the front differential assy forward.
● Remove the front propeller shaft spring.
● Remove the engine mounting bolts/nuts.
● Remove the engine from the right side.
Engine Installation
Remount the engine in the reverse order of engine removal.
Pay attention to the following points:
● Tighten the engine mounting nuts to the specified torque.
Tightening Torque: 60N-m
● Tighten the front differential gear mounting nuts to the specified
torque.
Tightening Torque: 50N-m
● Apply thread lock to the nuts.
● When installing the shift lever rod, align the both serrations.
● Apply thread lock to the foot board bracket bolts, and tighten them
to the specified torque.
Tightening Torque: 55N-m
● Install the new gasket and tighten the muffler bolts and exhaust
pipe nuts to the specified torque.
Tightening Torque: 23N-m
Engine Disassembly
Engine Top Side
● Remove the front propeller shaft.
● Remove the spark plug
