【3-10】
BRAKE
Foot Brake

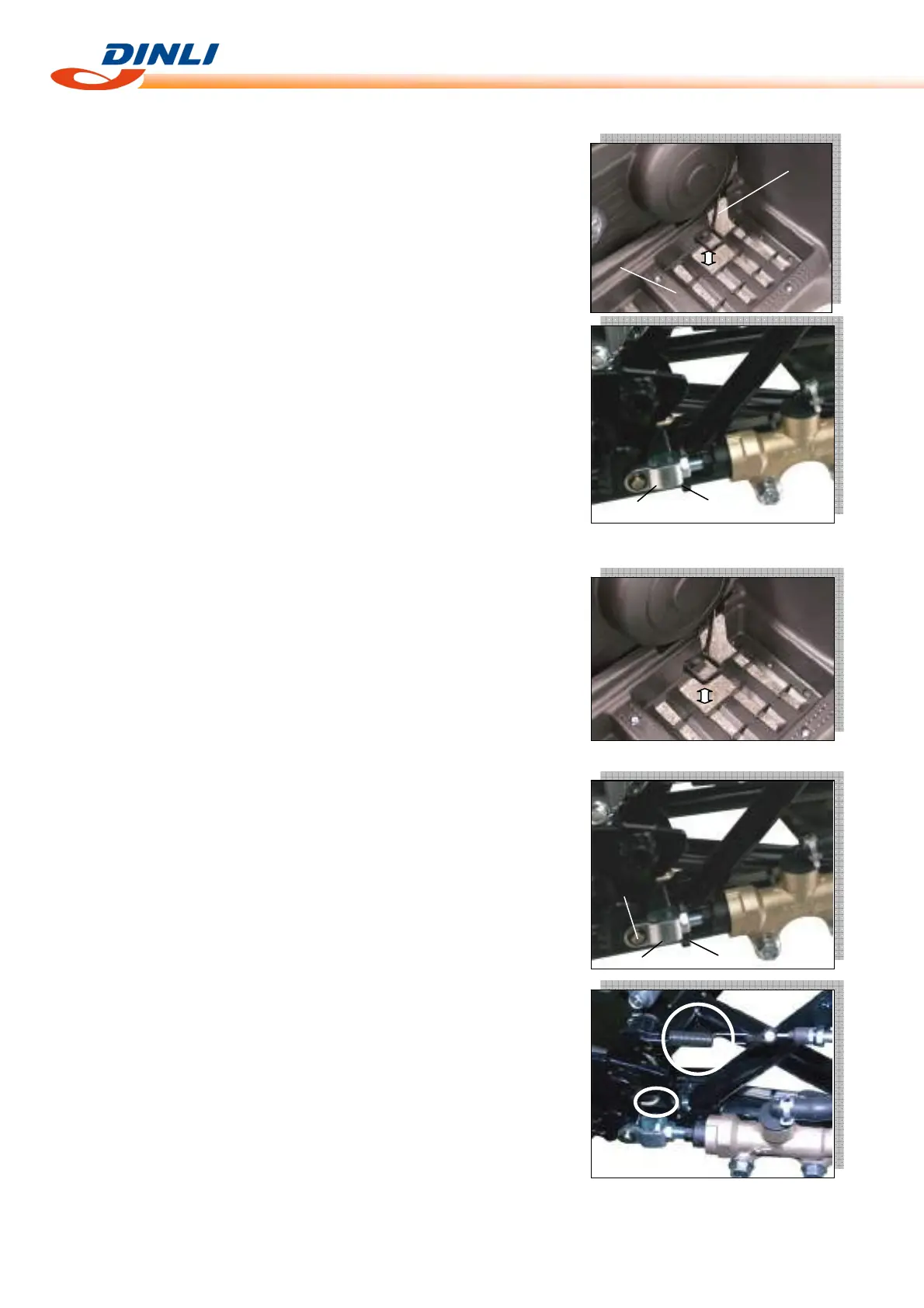

Brake Pedal Position Inspection
●Check that the brake pedal [A] is in the correct position as shown.
Pedal Position [C]
Standard: 72 ~ 80 mm above footrest
If it is correct, adjust the brake pedal position.
Brake Pedal Position Adjustment
● Remove the brake pedal (see Brake Pedal Removal).
● Loosen the nut [A], and turn the bracket [B] until pedal is
correctly positioned.
● Tighten the nut [A].
● Check the brake pedal free play (see Brake Pedal Free Play
Inspection).
Brake Pedal Free Play Inspection
● Check the brake pedal free play [A].
○ Depress the brake pedal lightly by hand until the brake is applied.
If the free play is incorrect, adjust it.
Pedal Free Play
Standard: 2.2 ± 0.5 mm
Brake Pedal Removal
●Remove:
Cir-clip [B]
Pin [C]
Master Cylinder Joint [A]
●Pulling down the springs (where circled), remove the brake pedal.
Brake Pedal Installation
● Reverse the Removal steps to install the brake pedal.
A
A
B
C
A
B
A
A
B
C
