Dinli DL702 - Steering System Servicing

【4-4】
S
USPENSION/STEERING
Steering

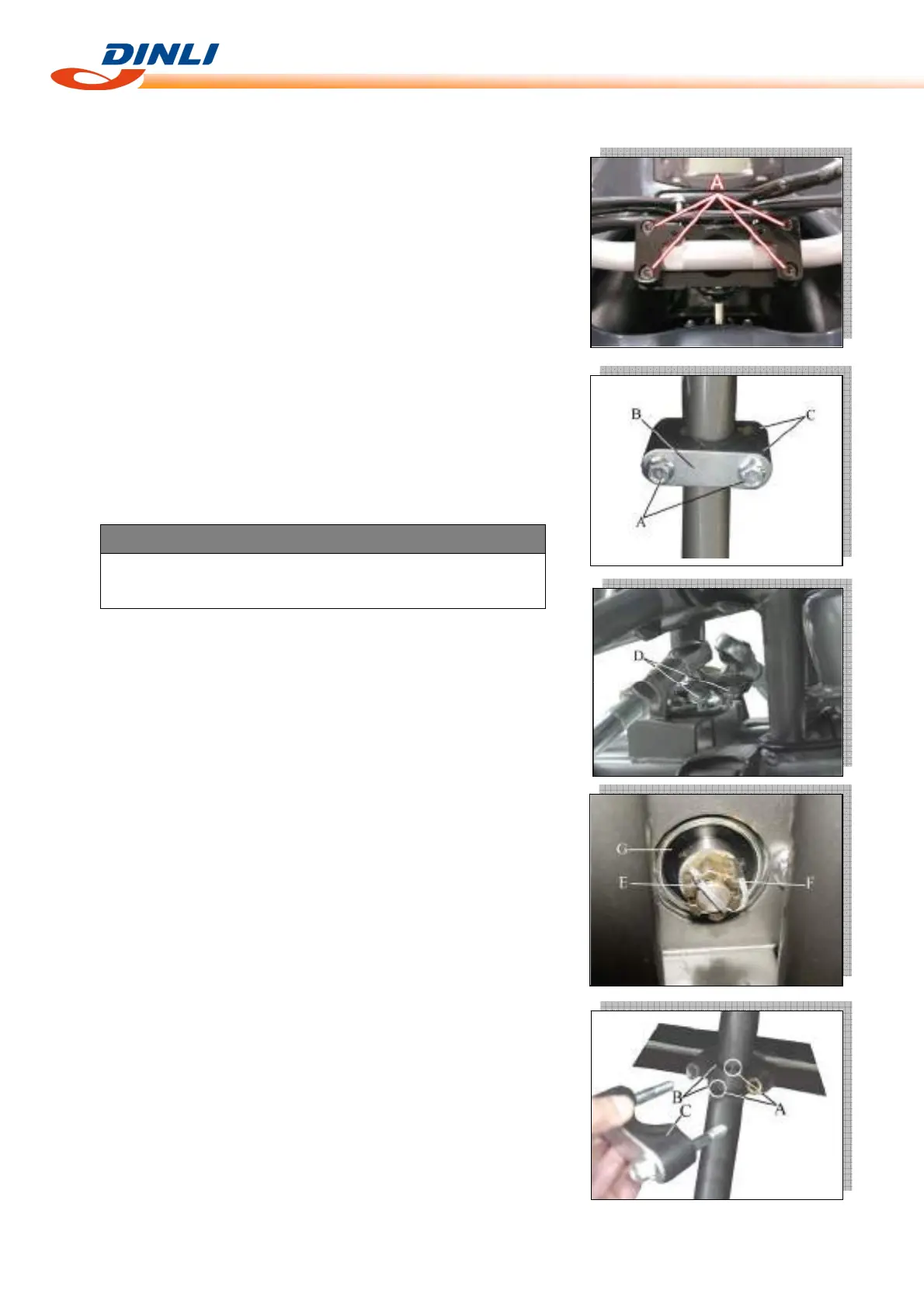

Steering Stem Removal
● Remove:
Handlebar Holder Bolts ×2
Handlebar Holder Cover
Upper Handlebar Clamp bolts [A] ×4
Upper Handlebar Clamp
Handlebar (see Handlebar Removal)
Oil Tank Cover(see Frame Chapter)
Instrument Panel
● Remove:
Steering Clamp Bolts [A]
Steering Clamp Support Plate [B]
Steering Clamp [C]
Tie-Rod End Nuts [D]
Steering Stem Cotter Pin [E] and Nut [F]
● To remove the steering stem bearing [G], remove the cotter pin
and nut from the bottom end of the steering stem.
● Pull the steering stem out of the frame.
Steering Stem Installation
● Lubricate the steering stem clamp, grease seals (See Steering
Lubrication).
● Install the grease seals [B] facing the end [A] rearward to prevent
the entry of dirt.
● Install the steering stem clamps on both grease seals, fit into the
groves on the steering stem clamps [C].
A
CAUTION
Do not loosen the locknut at the ends of the tie-rod adjusting
sleeve, or the toe-in of the front wheels will be changed.
