【4-8】
S
USPENSION/STEERING

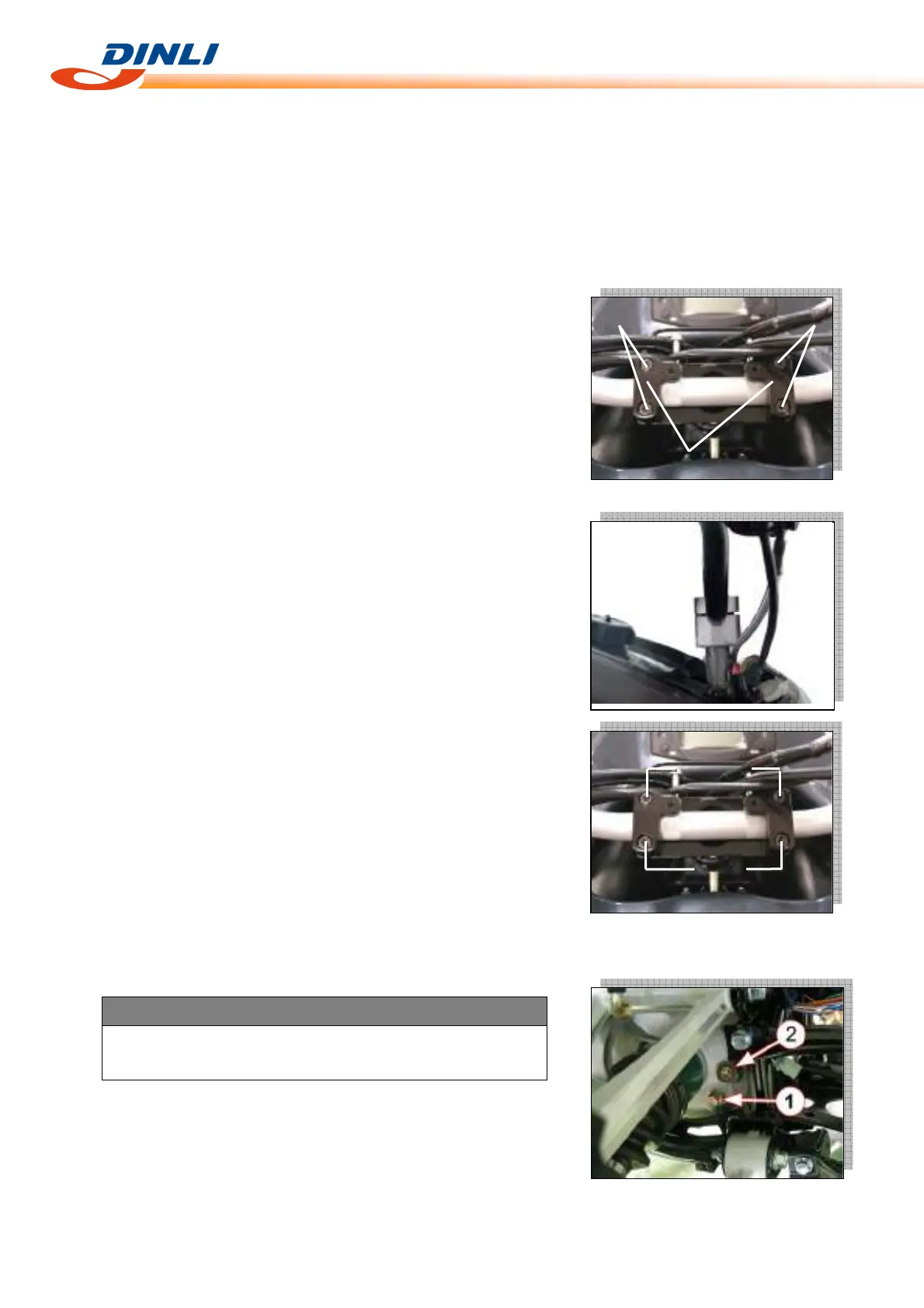

Handlebar
Handlebar Removal
● Remove:
Throttle Switch
Front Brake Master Cylinder
Left Lever Switch Housing
Right Lever Switch
Handlebar Cover Screw
Handlebar Cover
● Remove:
Handlebar Holder Bolts [A]
Handlebar Holders [B]
Handlebar [C]
Handlebar Installation
● Install the handlebar so that the angle of the handlebar matches
the angle of the steering stem as shown.
● Tighten the holder rear bolts first and then the front bolts.
Torque –
Handlebar Holder Bolts: 27 N-m (2.8 kgf-m, 20 ft-lb)
○ If the holder is correctly installed, there will be no gap at the rear
and an even gap at the front after tightening.
Transmission
Differential Gear Oil Inspection
● Place the vehicle on level ground.
● Remove the oil level plug [1] and oil filler plug [2], and inspect
the oil level. If the oil level is below the level hole, add fresh oil
until oil flows from the level hole.
A
A
B
C
F
F
i
i
r
r
s
s
t
t
S
S
e
e
c
c
o
o
n
n
d
d
NOTE
○ Inspect every 2,000 km ( 100 hours, 6 months). Replace every
2 years.
