【5-2】
RAME
Seat
Seat Removal

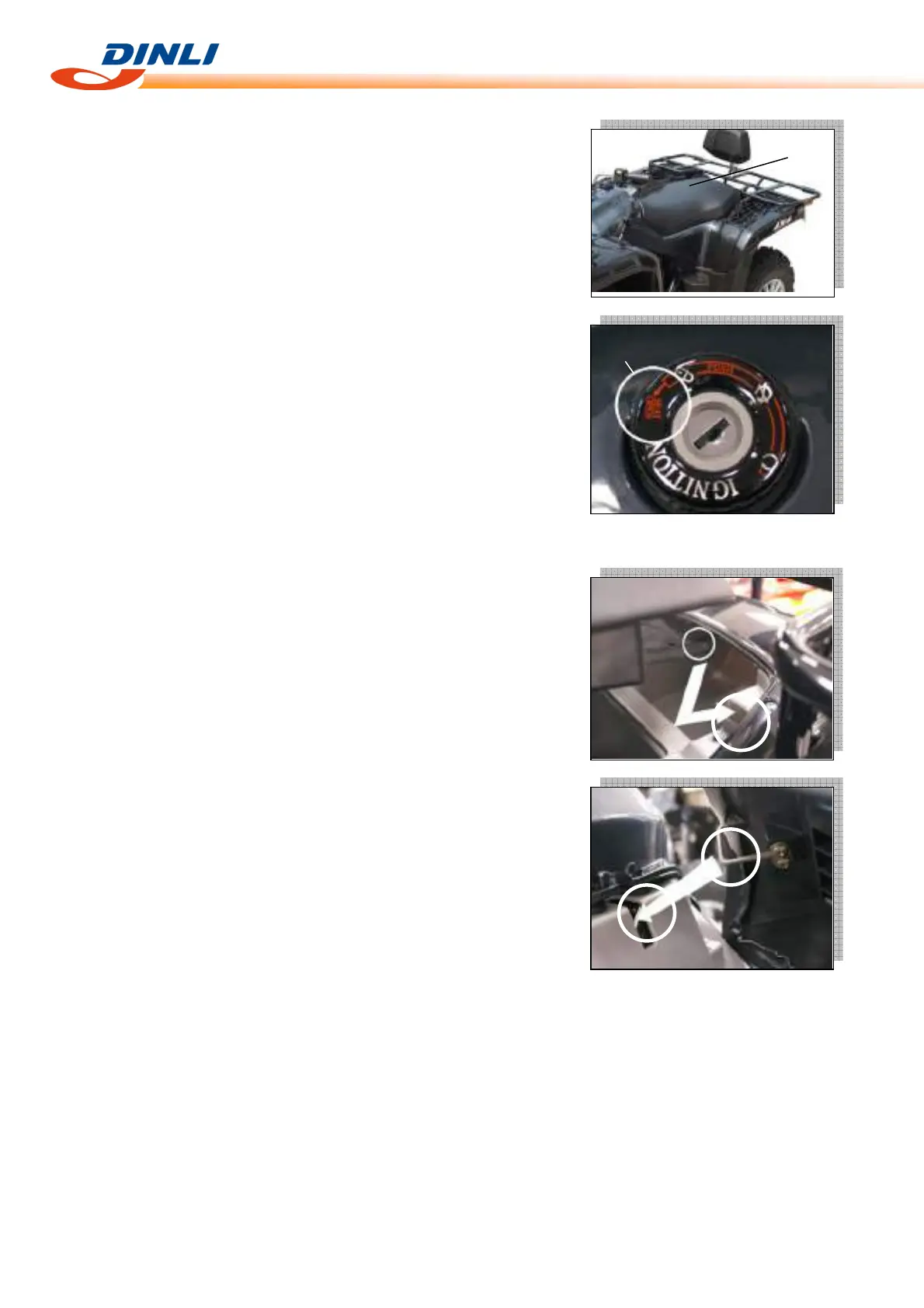

● To remove seat [A], insert the key to the main switch.
● Push inward the key and turn it counter-clockwise to seat open
position [B].
● Lift the seat front slightly, pull it toward the front and remove the
seat.
Seat Installation
● Align the catch [A] at the back of the seat with the receiver [B] on
the frame.
● Slip the seat hook [C] under seat into lock [D].
● Push the front of the seat until you hear the click sound to lock
the seat.
Front and Rear Fenders
Front Fender Removal
● Remove:
Seat
Handlebar holder cover
Disconnect Instrument Panel
Fuel tank decoration
Front rack
A
B
A
B
C
D
To Next Page
