DAG2000 Series FXS Voice Gateway User Manual
15
Dinstar Technologies Co., Ltd.
4.3.4 RTP Session Statistics

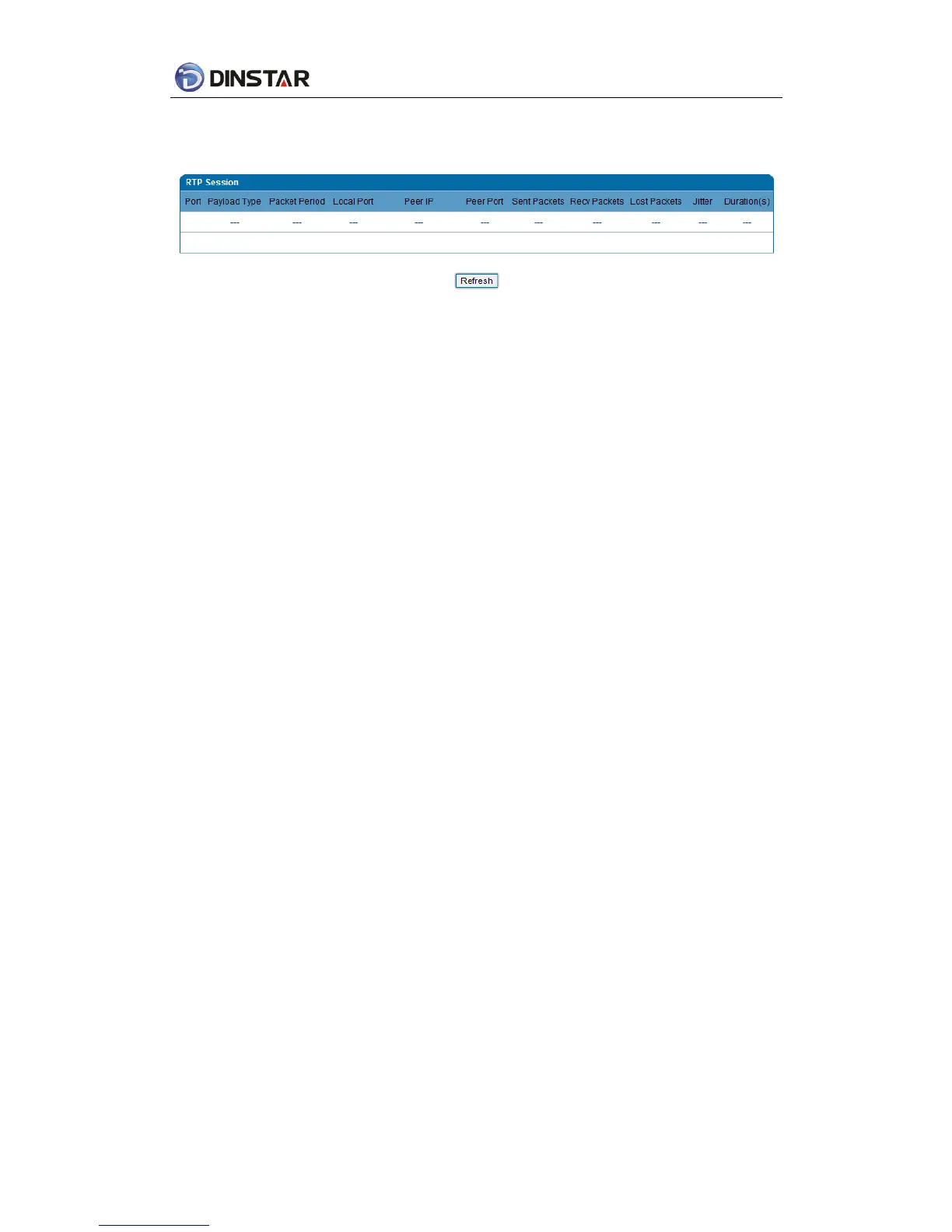

Figure 4.3-4 RTP Session Statistics
Figure 4.3-4 display real-time RTP conversation flow data information, includes:
Port, voice codec, packet period, local port, peer IP, peer port, sent packets, receive
packets, lost packets, jitter and duration.
4.4 Quick Setup Wizard
Quick configuration guide will guide users to configure the device step by step. Users only need
to configure network, SIP server and sip port in quick setup wizard. Basically, after these three
steps, users are able to make voice call through device.
4.5 Network Configuration
4.5.1 Local Network
DAG 2000 series have 4 Ethernet ports, and similar to a smaller switches. Network
configuration below:
