Dinstar DAG2000-32 - 1.4 Network Applications; 1.5 Functions and Features

DAG2000 Series FXS Voice Gateway User Manual
2
Dinstar Technologies Co., Ltd.
Power parameters:
Input: 100-240V, 50-60Hz
1.4 Network Applications

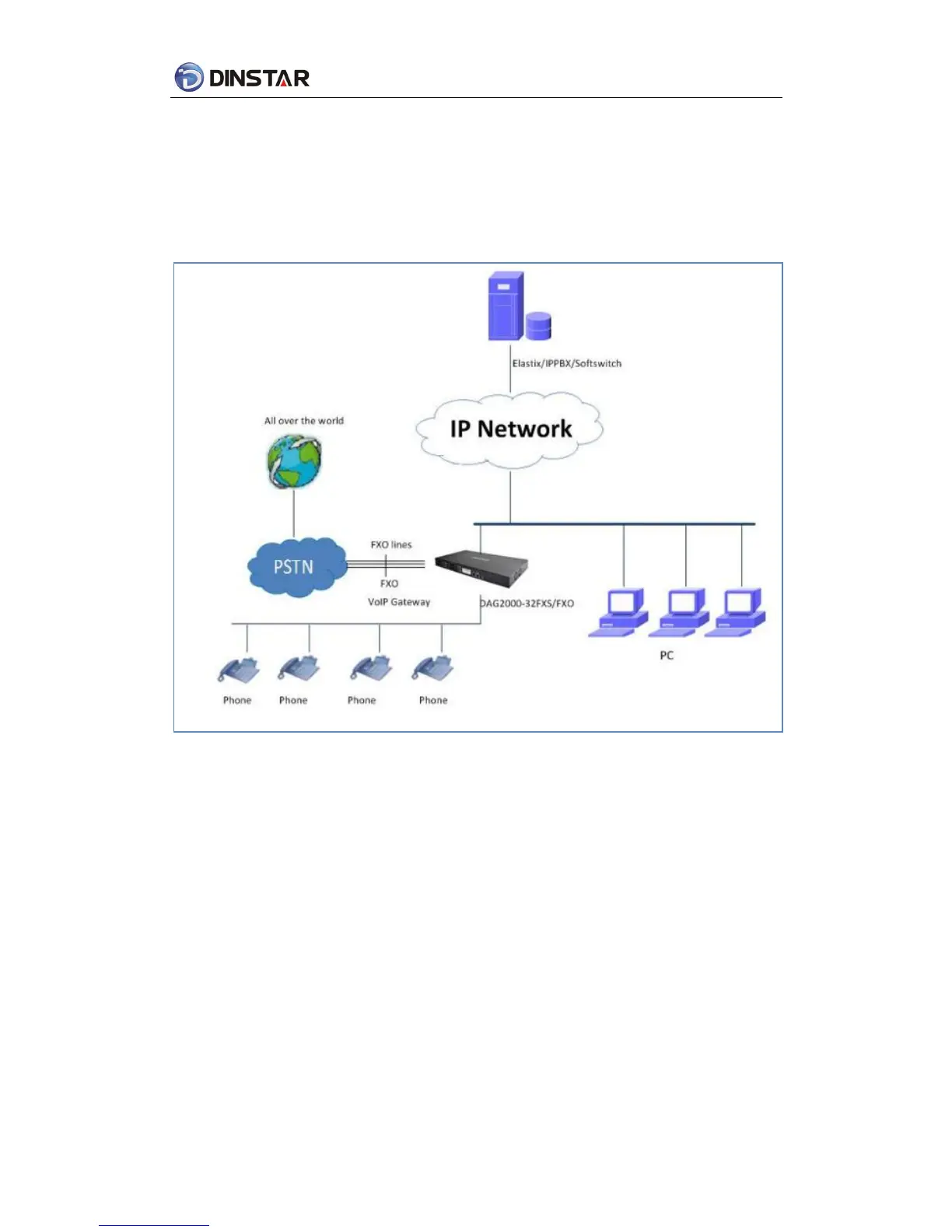

Figure 4-1：Network Applications
1.5 Functions and Features
1.5.1Protocol standard supported
• SIP V2.0 (RFC 3261,3262,3264)
• SDP (RFC 2327)
• REFER (RFC 3515)
• RTP/RTCP (RFC 1889,1890)
• STUN (RFC 3489)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• TFTP/HTTP/HTTPS
