18
© 2009 Directed Electronics. All rights reserved.
H1/7
BLUE (-) TRUNK PIN/INSTANT TRIGGER ZONE 1
This input responds to a negative input with an instant trigger and is ideal for
a trunk pin. It can also be used with Directed single-stage sensors. This wire
reports Zone 1.
H1/8

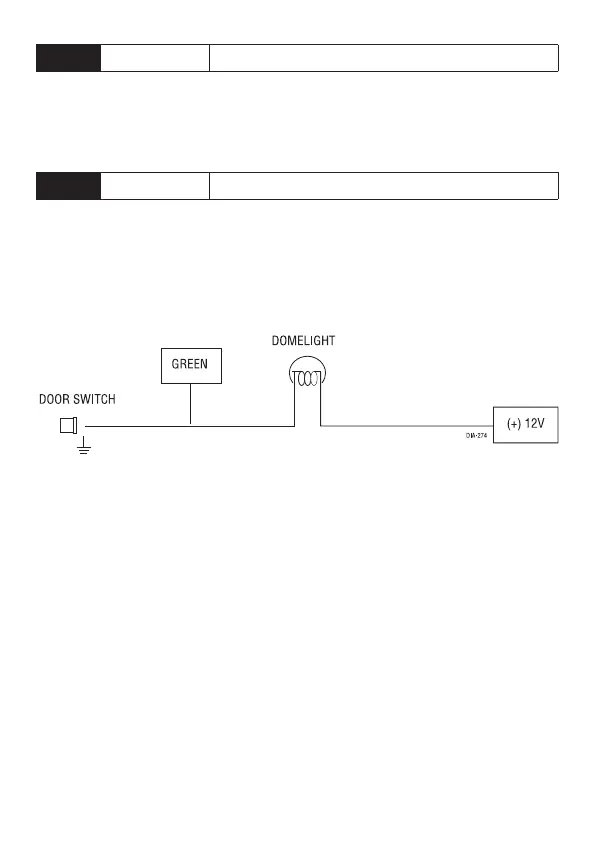

GREEN (-) DOOR TRIGGER INPUT, ZONE 3
Most vehicles use negative door trigger circuits. Connect the green wire to a
wire which shows ground when any door is opened. In vehicles with factory
delays on the dome light circuit, there is usually a wire that is unaffected by the
delay circuitry. This wire reports Zone 3.
