19
© 2009 Directed Electronics. All rights reserved.
H1/9

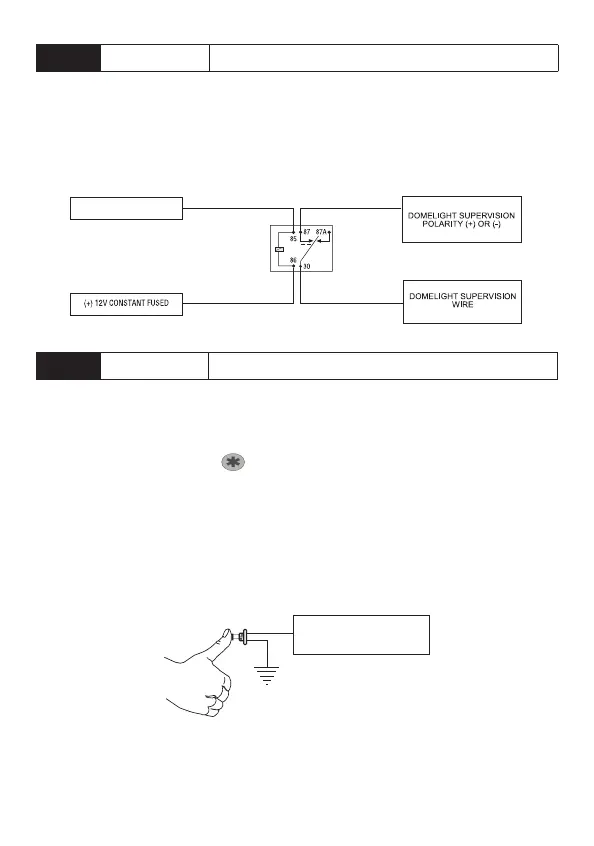

BLACK/WHITE (-) 200mA DOME LIGHT OUTPUT SUPERVISION OUTPUT
Connect this wire to the optional dome light supervision relay as shown below:
Important! This output is only intended to drive a relay. It cannot be connected
directly to the dome light circuit, as the output cannot support the current draw
of one or more light bulbs.
H1/10
WHITE/BLUE (-) REMOTE START ACTIVATION INPUT
This input comes from the factory set to 1 activation pulse. This means that it is
necessary to have 1 ground pulse on the white/blue wire for the remote start to
activate or to deactivate. The same holds true for the remote control activation
it is necessary to press the button once for the remote start to activate or
deactivate.
Note
:
The number of activation inputs can be programmed to 1 or 2 pulses with
an optional momentary switch. This setting affects both the input wire and the
remote control when operating the remote starter.
To white/blue activation
input on system
