20
© 2009 Directed Electronics. All rights reserved.
H1/11
WHITE (+/-) SELECTABLE LIGHT FLASH OUTPUT
This wire is connected to the (+) parking light wire in the vehicle. If the light flash
polarity jumper on the side of the unit is moved to the opposite position (See
Internal Programming Jumper section of this guide) the wire supplies a (-) 200
mA output.

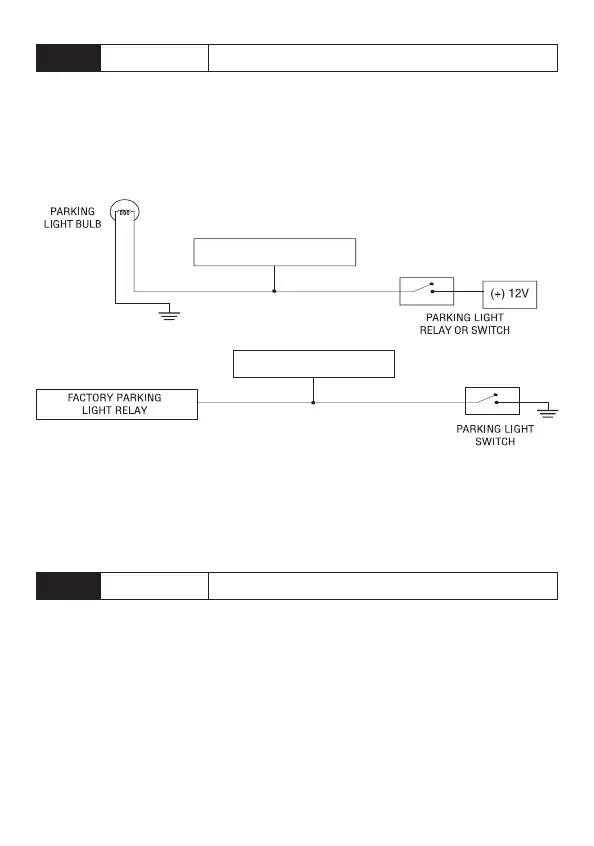

(+) Positive Light Flash Output
(-) Negative Light Flash Output
WHITE H1/11
(+) LIGHT FLASH OUTPUT
WHITE H1/11
(-) LIGHT FLASH OUTPUT
Note: For parking light circuits that draw 10-amps or more, the internal jumper
must be switched to a (-) light flash output. (See Setting the light flash polarity
section of this guide.) P/N 8617 or a standard automotive SPDT relay must be
used on the H1/11 light flash output harness wire.
H1/12
ORANGE (-) 500mA GROUND WHEN ARMED OUTPUT
This wire supplies a (-)500 mA ground as long as the system is armed or when
the remote start is active. The output ceases as soon as the system is disarmed
or when the remote start is de-activated. The orange wire may be wired to an
optional Directed Electronics 8618 starter kill relay or to an optional accessory
that requires a ground when armed to activate.
