Controls - 44 JT100/JT100 All Terrain Operator’s Manual

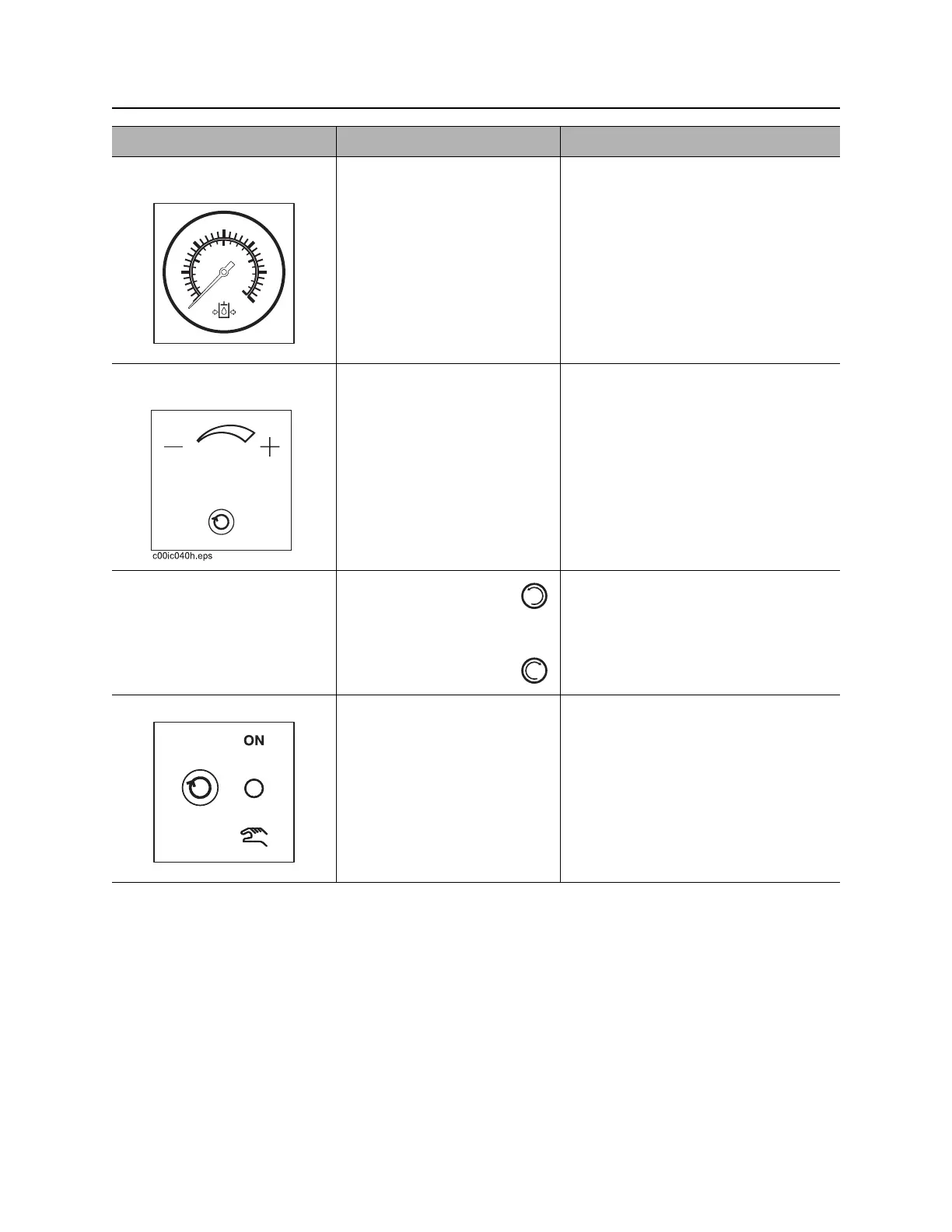

Left Control Console
6. Inner spindle rotation
pressure gauge
Displays inner spindle
rotation pressure.
7. Inner rotation speed
control
To increase, turn clockwise.
To decrease, turn
counterclockwise.
8. Manual inner rotation
switch
To rotate
counterclockwise, move
switch to left.
To rotate clockwise,
move switch to right.
IMPORTANT: Inner spindle switch
must be in manual position.
9. Inner spindle switch To turn on, press top.
To turn off, move to center.
To manually dither, press
bottom and toggle manual
inner rotation switch left and
right.
IMPORTANT: To restart inner rotation
after operator has left seat, turn inner
rotation off and then on.
Item Description Notes
c00ic088t.eps
1
2
3
4
5
6
0
0
1
2
3
4
psi x 1000
bar
x 100
To Next Page
