JT100/JT100 All Terrain Operator’s Manual Controls - 55

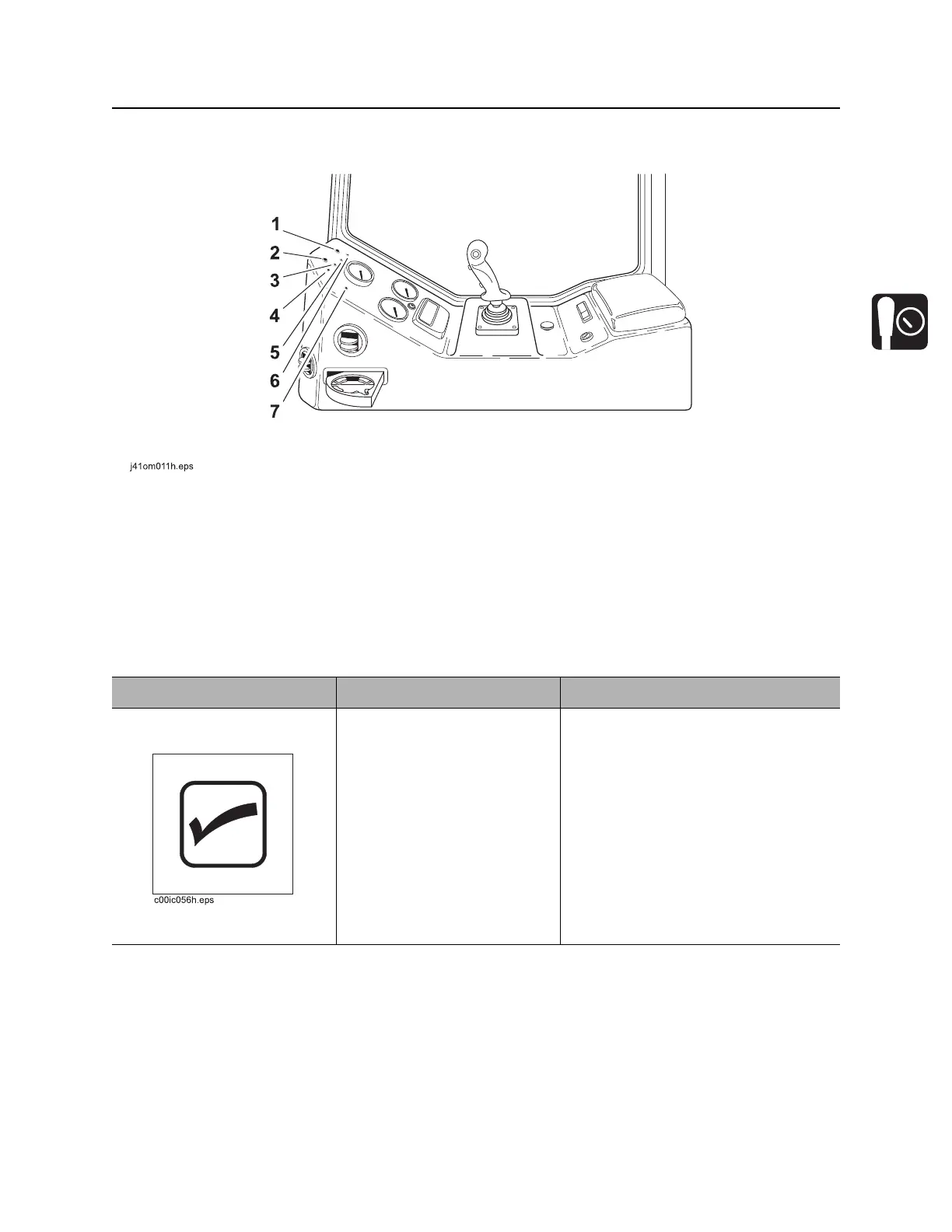

Right Control Console
Lights
1. Control cycle light (green)
2. Diagnostic light (red)
3. Shuttle home status light
4. Rear home status light
5. Front home status light
6. Front wrench status light
7. Drilling fluid pump status light
Item Description Notes
1. Control cycle light
(green)
If nothing is being controlled,
light is off.
If system is waiting for an
action before starting cycle,
light flashes on and off.
If something is being
controlled, light is on.
If control cycle is interrupted,
light flashes twice quickly.
See “Diagnostic Codes” on page 178.
