7. Application examples
7.1 Automations with two swinging gates
7.2 Automations with one swinging gate wing
When the Ditec LCU40H control panel is used in applications for automations
with one swinging gate wing, the following connections can be made:
When the Ditec LCU40H control panel is used in applications for automations
with two overlapping swinging gate wings, the following connections can be
made:

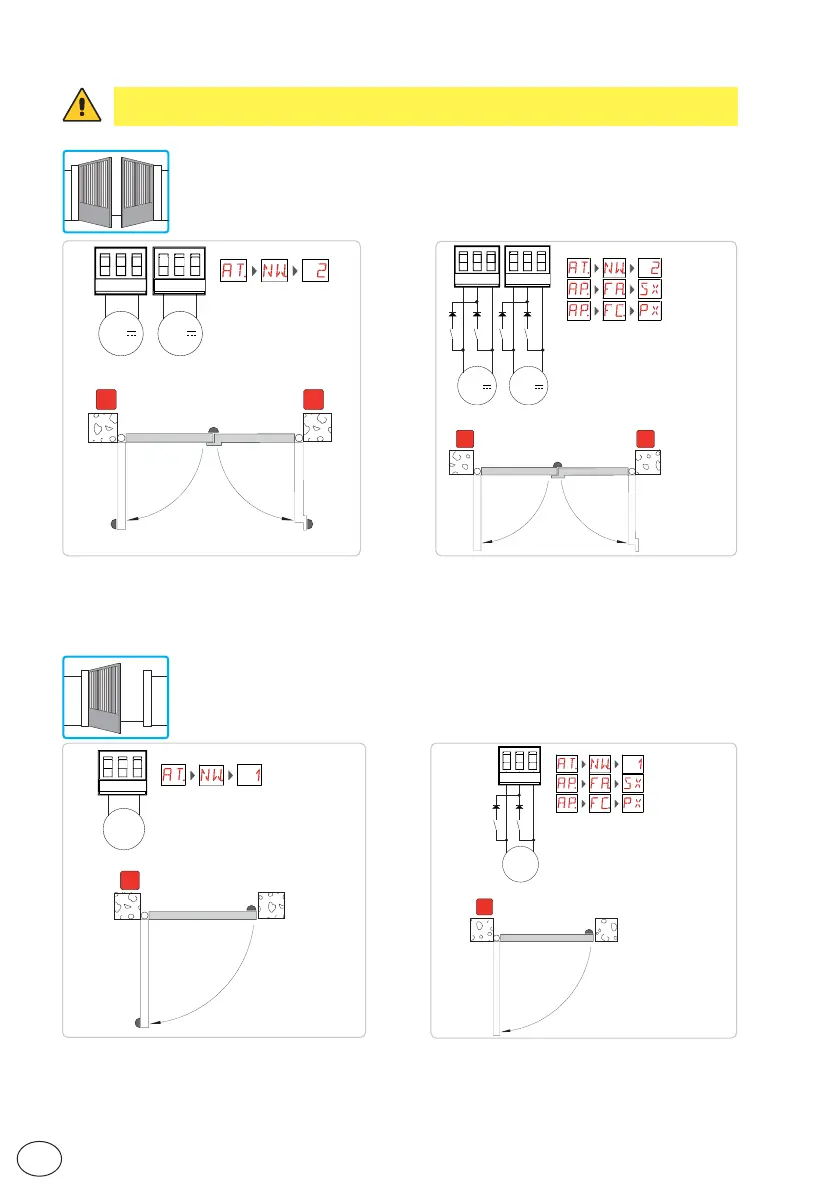

(Fig. 7.1) Installation with mechanical end stops for opening and closure, and without the use of electric limit
switches.
(Fig. 7.2) Installation with mechanical end stop for closure, and with the use of electric limit switches (stop
during opening and proximity during closure).
(Fig. 7.3) Installation with mechanical end stops for opening and closure, and without the use of electric limit
switches.
(Fig. 7.4) Installation with mechanical end stop for closure, and with the use of electric limit switches (stop
during opening and proximity during closure).
WARNING: Ensure that the forces exerted by the door wings are compliant with
EN12453-EN12445 regulations.
24V24V
Motore 1Motore 2
12
363534 333231
24V24V
Motore 1Motore 2
12
3635 34 3332 31
Fig. 7.1
Fig. 7.3
Fig. 7.2
Fig. 7.4
Motor 1
Motor 1
Motor 2
Motor 2
24V=
1
Motore 1
3332 31
1
24V=
Motore 1
3332 31
Motor 1
Motor 1
