DITEC LCU40H - 5 Programming; Switching the Display on and off; Navigation Keys

9
IP2246EN
EN

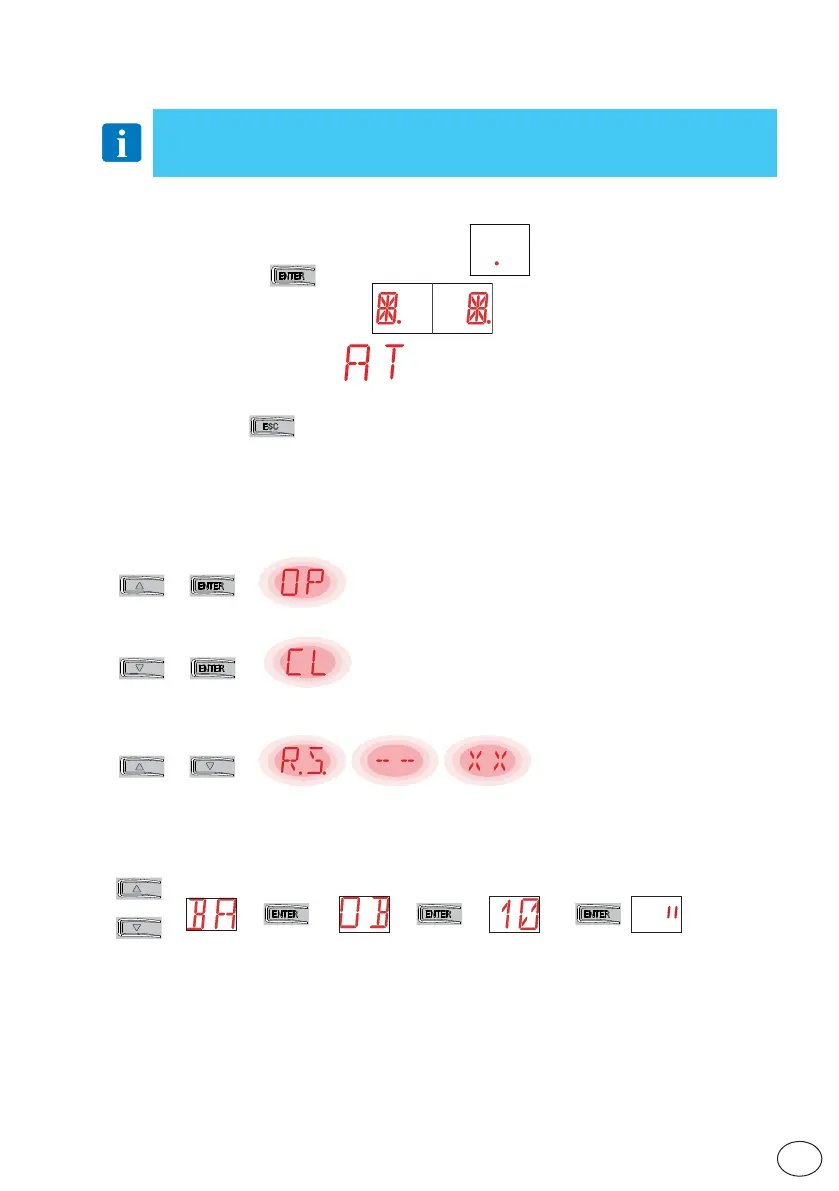

The procedure to switch on the display is as follows:
• press the ENTER key
• the display functioning check starts
• the first level menu is displayed
The procedure to switch off the display is as follows:
• press the ESC key
NOTE: the display switches off automatically after 60s of inactivity.
5. Programming
5.1 Switching the display ON and OFF
NOTE: pressure on the keys may be quick (less than 2s) or prolonged (longer than 2s).
Unless specified otherwise, quick pressure is intended. To confirm the setting of a
parameter, prolonged pressing is necessary.
5.2 Navigation keys
• The simultaneous pressing of the ↑ and ENTER keys produces an opening command.
+ →
• The simultaneous pressing of the ↓and ENTER keys produces a closing command.
+ →
• The simultaneous pressing of the ↑ and ↓ keys produces a POWER RESET command (power
supply interruption and automation restart).
+ →
• Keep the UP ↑ or DOWN ↓ key pressed to begin fast menu scrolling.
• In some menus, the parameter measurement unit can be viewed by pressing the ENTER key
once the value has been displayed.
Example: setting of 10 seconds for parameter OB.
→ → → → → →
