4
IP2246EN
EN
ASSA ABLOY Entrance Systems AB declares that the Ditec LCU40H control panel complies with
the fundamental requisites and other relevant requirements laid down by the following EC di-
rectives:
EMC Directive 2014/30/EU;
Low Voltage Directive 2014/35/EU;
RED Directive 2014/53/EU.
L a n d s k r o n a , 1 8 - 0 5 - 2 0 2 1 M a t t e o F i n o
President B.A. PGA)
2. EC Declaration of Conformity

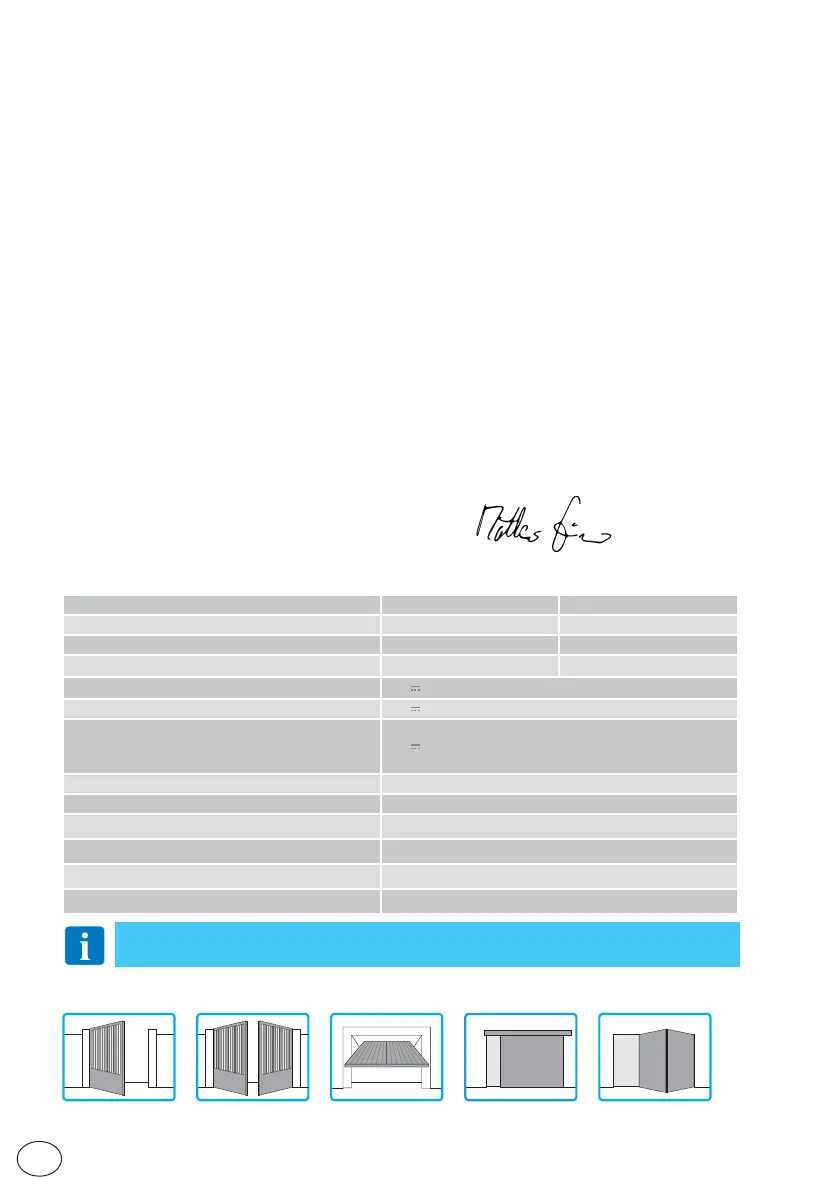

3. Technical specifications
NOTE: the given operating and performance features can only be guaranteed with the
use of DITEC accessories and safety devices.
3.1 Applications
1.1 Safety functions
The Ditec LCU40H control panel has the following safety functions:
- obstacle recognition with force limiting;
The maximum response time of the safety functions is 0.5s. The reaction time to a faulty safety
function is 0.5s.
The safety functions comply with the standards and performance level indicated below:
EN ISO 13849-1:2015 Category 2 PL=c
EN ISO 13849-2:2012
The safety function cannot be bypassed either temporarily or automatically. Fault exclusion
has not been applied.
LCU40H LCU40HJ
Power supply 230V~ 50/60Hz 120V~ 50/60Hz
Power absorption 0,6A 1,2A
Fuse F2A 4A
Motor output 24V
12 A max (X 2)
Permanent power supply to accessories 0-30 24V 0,15A
Power supply to accessories 0-1
(in any case, the total of accessories 0-30 and 0-1
must not exceed 0.5A).
24V
0,5A continuous
Ambient temperature -20°C - +55°C
Storable radio codes 100 / 200 see RO → MU → 20/10 (paragraph 11.6)
Radio frequency 433,92MHz
Degree of protection of the container IP55
Product size 238 x 357 x 120
Operating cycles Refer to the characteristics of the actuator used.
