32
IP2246EN
EN

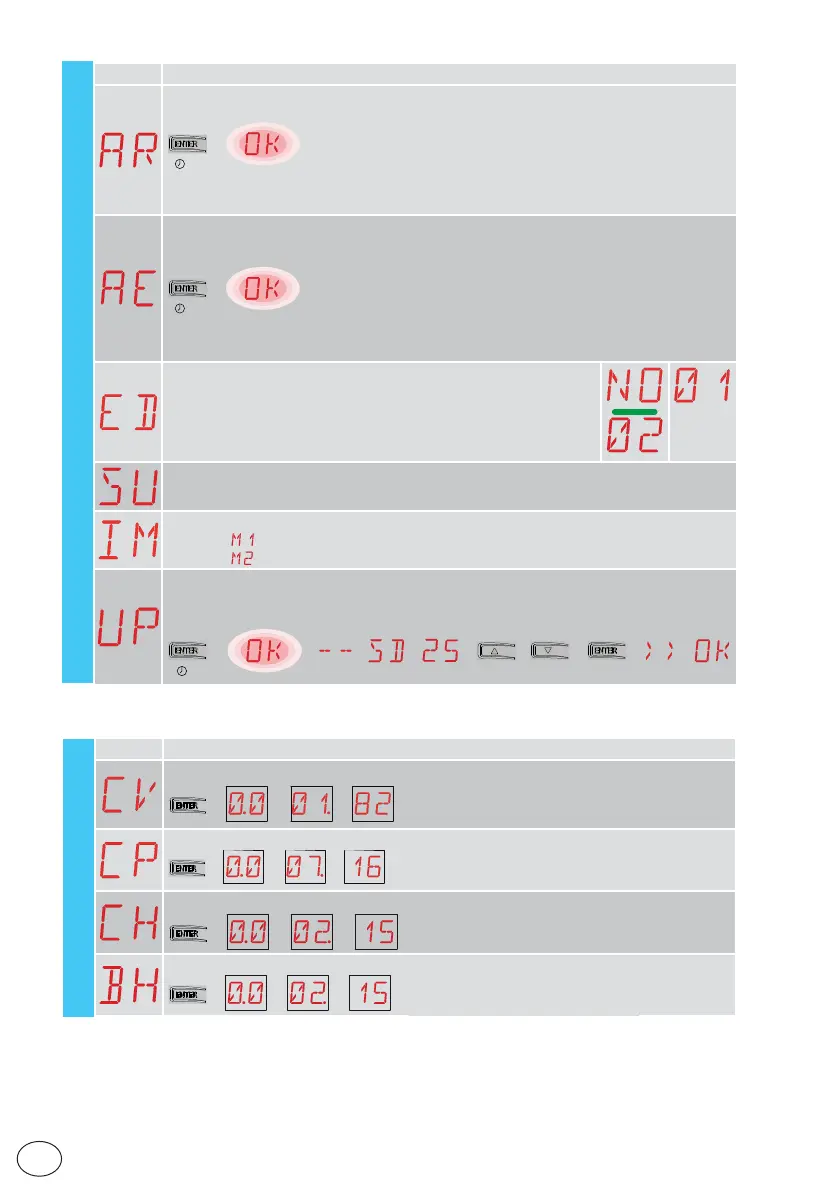

Display Description
AR - Alarm reset
Resets all the alarms in the memory (counters and log).
2”
NOTE: when the installation has been completed, you are advised to delete the alarms in
order to facilitate future checks.
AE - Writing of alarms on microSD card
Creates a text file on the microSD memory, containing some information about the control panel:
the firmware version, operation counters, hour counters, configuration parameters, alarms.
2”
NOTE: the alarm counters and alarm log are associated with the number of the operation
that was in progress when they were triggered.
ED - Enabling of diagnostics
Enables the periodic saving of data on the micro SD card, for diagnostic use.
NO - Disabled
01 - Internal use (DO NOT USE)
02 - List of events on microSD card
SU - Safe removal of the microSD card
IM - Motor current visualisation
Selecting
, the display will show the current absorbed by motor 1.
Selecting
, the display will show the current absorbed by motor 2.
UP - Firmware update
The FW update can be carried out using USBPROG (possible from card version 2.4).
Via microSD card the procedure is:
→→
2”
/
11.7 Second level menu - CC (Cycles Counter)
Display Description
CV - Display of total operations counter
→→→ 182 manovre [esempio]
CP - Display of partial operations counter
→→→ 716 manovre [esempio]
CH - Display of power supply hour counter
→→→
215 ore di funzionamento
in batteria [esempio]
BH - Visualisation of counter for power supply hours via battery
→→→
215 ore di funzionamento
in batteria [esempio]
182 operations (example)
716 operations (example)
256 power supply hours (example)
215 operating hours via
battery (example)
SF - Special functions
CC - Cycles counter
