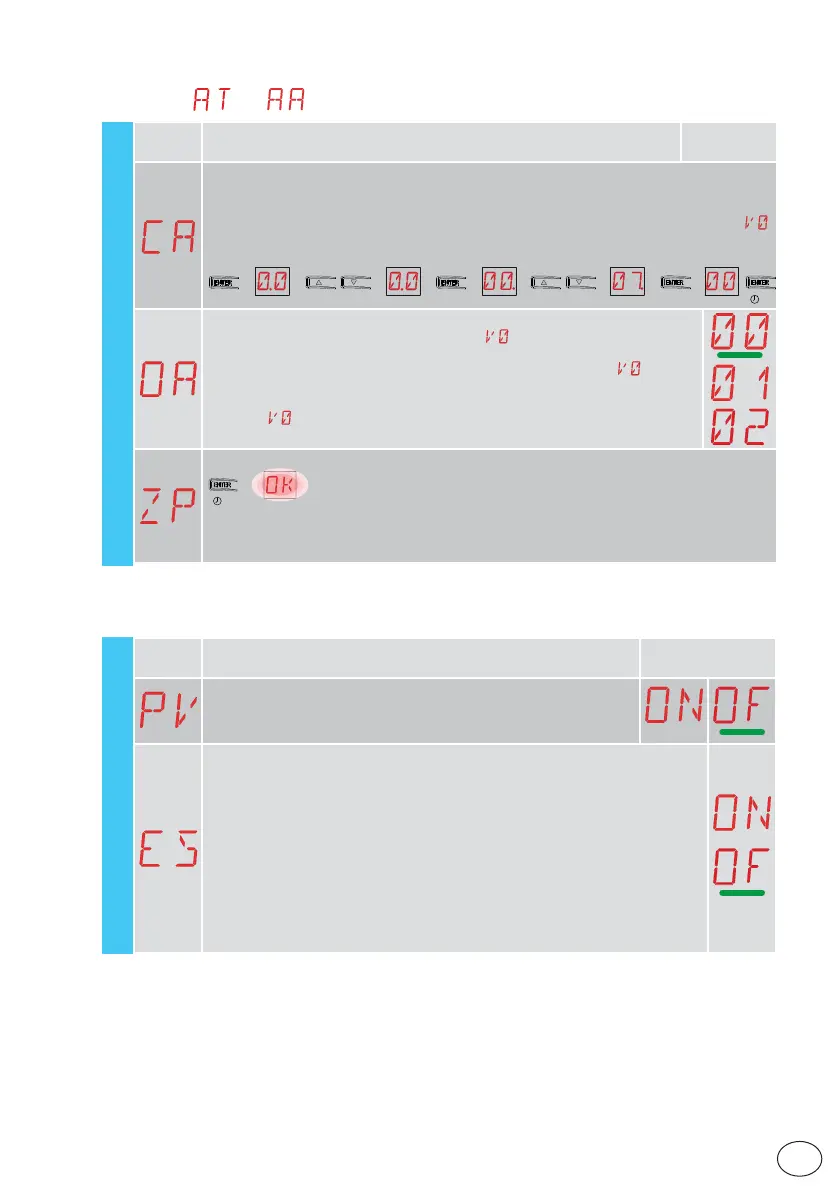

Display Description
Selections
available
CA - Setting the maintenance alarm (factory setting - alarm deactivated: 0.0 00. 00).
You can set the required number of operations (regarding the partial operations counter) for
signalling the maintenance alarm.
When the set number of operations is reached, the alarm message appears on the display
.
Example:
Setting the maintenance alarm after 700 operations (00) (07) (00)
→→→ →→
→→→→
2”
OA - Selecting maintenance alarm display mode
00 - Visualisation on display (alarm message
).
01 - Visualisation on flashing light (with the automation idle, 4 flashes are made
and then repeated every hour) and on display (alarm message
).
02 - Visualisation on "open gate" indicator light (with the automation closed, 4
flashes are made and then repeated every hour) and on display (alarm mes-
sage
).
ZP - Reset of partial operations counter
→
2”
For correct functioning, you are advised to reset the partial operations counter:
- after maintenance work;
- after setting the maintenance alarm interval.
11.7.1 Additional CC level parameters that can be configured (available
with
→ enabled)
11.8 Second level menu - EM (Energy Management)
Display Description
Selections
available
PV - Solar panel power supply (panels not supplied)
ON - Enabled
OF - Disabled
ES - “Green Mode” (energy-saving) (disconnection of accessories connected to
terminals 0-1 when the automation is in standby)
ON - Enabled (the red point on the right of the display flashes every 5s. Outputs
+LP-, -LK+ and 30-13 are not managed in low-consumption mode)
OF - Disabled
Power supply disconnection mode is activated after 15 s with the gate closed, or
when the gate is idle and automatic closure is not enabled.
The automation resumes its normal operation when a command is received on
the radio board (ZENRS-ZENPRS) or following a contact 30-5, 30-20, 30-3 or 30-4.
WARNING: if you use accessories that need to remain powered even with Green
Mode enabled (e.g. LAN4 or GOPAV), set the jumper AUX1-2 relating to the slot
used on power supply 0-30.
CC - Cycles counter
EM - Energy management
