DITEC LCU40H User Manual

17
IP2246EN
EN

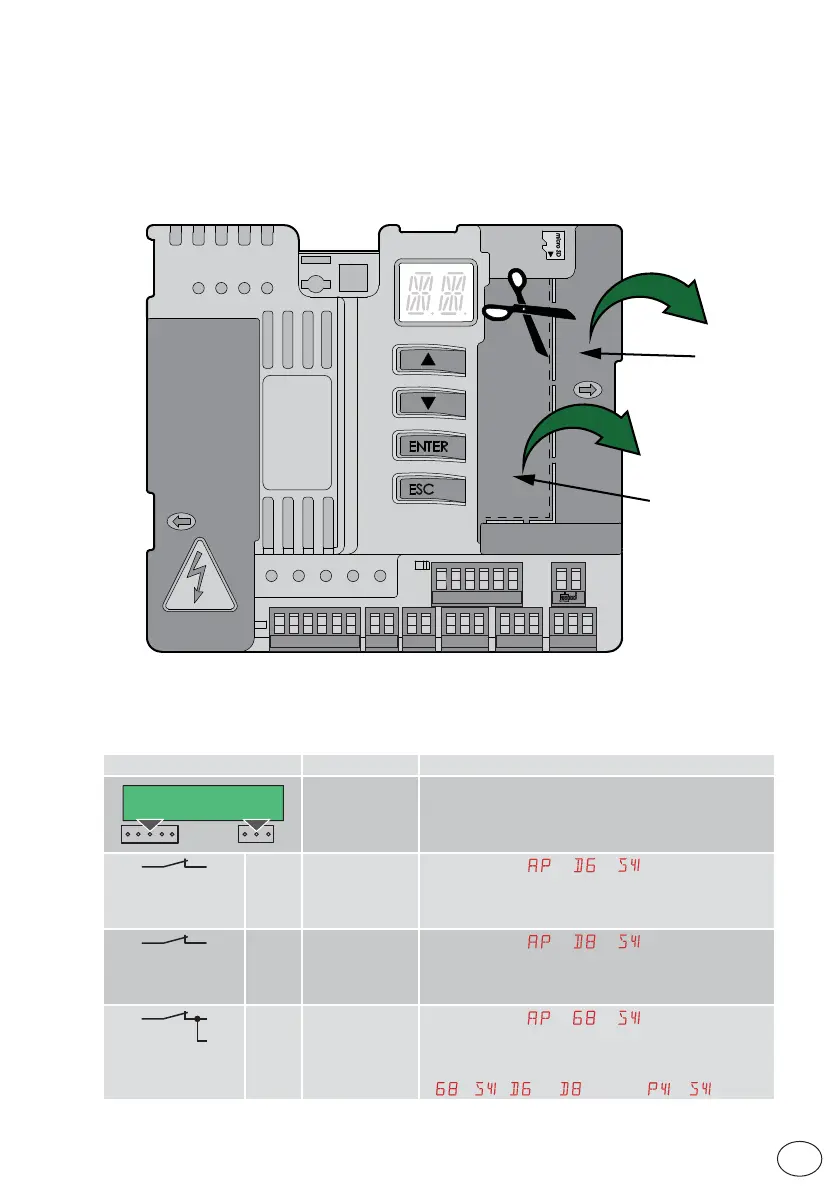

8.1 Inserting plug-in boards (AUX)
To access the slots for plug-in boards (AUX):
• If you want to insert just one board, cut the control panel cover and remove it as
shown in the figure.
• If both slots are needed, remove the cover completely.
8.2 SOFA1-SOFA2 or GOPAVRS self-controlled safety edge
Command Function Description
GOPAV
SOFA1-SOFA2
SAFETY TEST
Insert the SOFA1-SOFA2 or GOPAVRS device in the slot
for plug-in boards AUX1 or AUX2.
If the test fails, an alarm message appears on the
display.
1
6
NC SAFETY STOP
When selecting
→ → , connect the output
contact of the safety device to terminals 1-6 on the con-
trol panel (in series with the photocell output contact,
if installed).
1
8
NC
CLOSING SAFE-
TY DEVICE
When selecting
→ → , connect the output
contact of the safety device to terminals 1-8 on the con-
trol panel (in series with the photocell output contact,
if installed).
1 6
8
NC
CLOSING/
OPENING
SAFETY DEVICE
When selecting
→ → , connect the output
contact of the safety device to terminals 1-6-8 on the
control panel (in series with the photocell output con-
tact, if installed).
If
→ , and cannot be or .
36 35 34 33 32
31
+-LP - +LK
30 5 20 0 1 6 0 1 8
30 2 3 4 9
13
AUX1
AUX2
