DITEC LCU40H User Manual

7
IP2246EN
EN

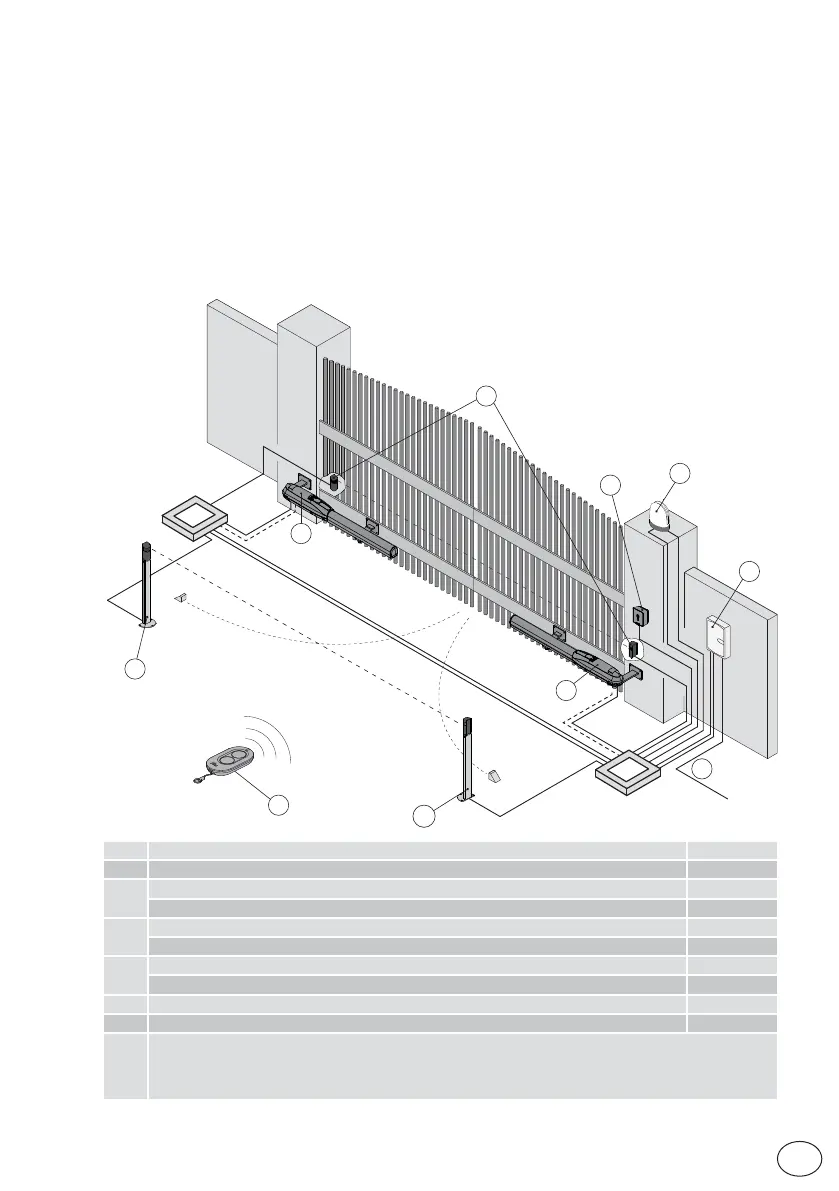

4.2 Standard installation
4.1 Maintenance
Ref. Description Cable
1 Transmitter /
2
Flashing light 2 x 1mm²
Antenna (integrated in the flashing light) coaxial 50 Ω
3
Key selector switch 4 x 0.5mm²
Digital combination wireless keypad /
4
Actuator 2 x 1.5mm²
Actuator with limit switch 3 x 1.5mm²
5 Photocells 4 x 0.5mm²
6 Control panel 3G x 1.5mm²
A
Connect the power supply to a type-approved omnipolar switch, with a contact opening distance of at
least 3mm (not supplied).
Connection to the mains must be via an independent channel, separated from the connections to the
command and safety devices.
The control panel needs no special maintenance.
Make regular checks to ensure the good condition of the box seals and the electrical connections.
1
4
6
A
3
2
5
5
4
5
