IP2246EN

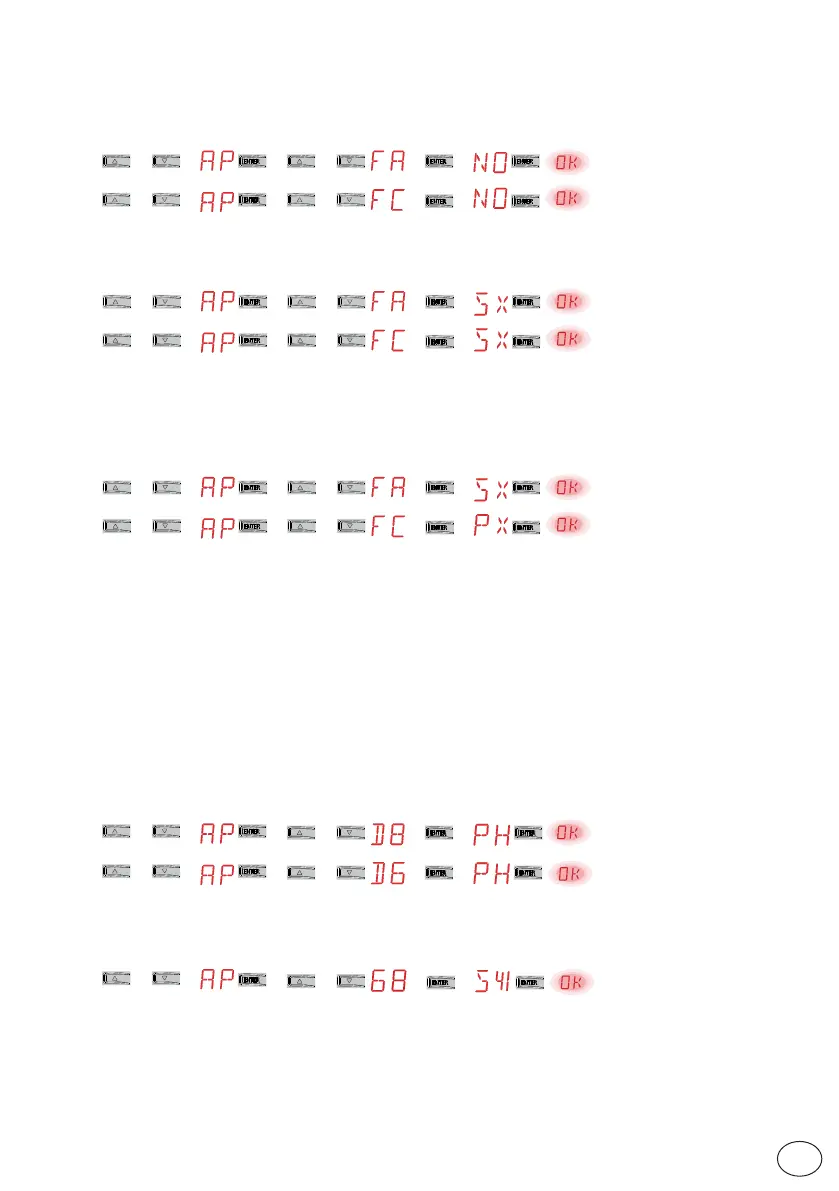

6.5 Configuration of the limit switches

6.6 Configuration of the safety devices

Set

With these settings, if an obstacle is detected while the gate wing is opening, it stops with a dis-

engagement operation; during closure, the gate wing reopens).

With these settings, the gate wing stops against its respective mechanical closing end stop and

the opening limit switch.

If an obstacle is detected during the opening and before the activation of the stop limit switch, the

gate wing stops with a disengagement operation.

If an obstacle is detected during closure and before the activation of the proximity limit switch,

the gate wing reopens; once the proximity limit switch has been activated, the gate wing stops

against the obstacle.

Example 1 - Door wing stops against mechanical end stops (standard setting)

Example 1 - Configuration of the photocells connected to terminals 1-8 and 1-6 [standard settings]

Example 2 - Configuration of the safety edge with safety test simultaneously connected to ter-

minals 1-6 and 1-8

Example 2 - Door wing stops against limit switches

Example 3 - Door wing stops against mechanical end stops and reverses motion if an obstacle

is detected

→
