11.4.1 Additional BA level parameters that can be configured (availa-
ble with
enabled)

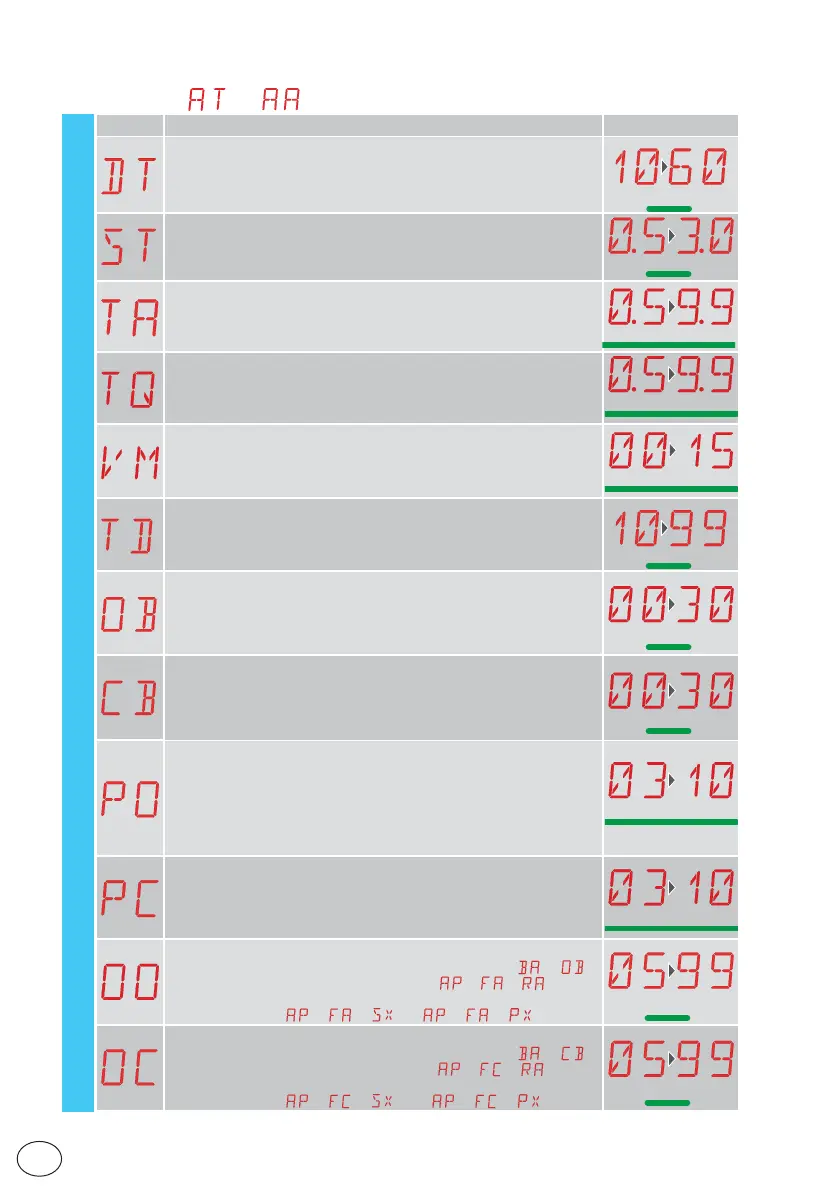

Display Description Selections available
DT - Adjustment of obstacle recognition time [s/100]
10 - Minimum
60 - Maximum
NOTE: the parameter is adjusted in hundredths of a second.
40
ST - Adjustment of start time [s]
0.5 - Minimum
3.0 - Maximum
2.0
TA - Adjustment of acceleration time during opening [s]
0.5 - Minimum
9.9 - Maximum
TQ - Adjustment of acceleration time during closure [s]
0.5 - Minimum
9.9 - Maximum
See paragraph 11.2.1
VM - Initial movement speed [V]
00 - Minimum
15 - Maximum
See paragraph 11.2.1
TD - Adjustment of deceleration time [%]
Adjusts the deceleration ramp slope
10 - Minimum
99 - Maximum
50
OB - Setting of deceleration time during opening [s]
Indicates the time between the start of the deceleration ramp and the
end of the opening stroke
00 - Minimum
30 - Maximum
10
CB - Setting of deceleration time during closing [s]
Indicates the time between the start of the deceleration ramp and the
end of the opening stroke
00 - Minimum
30 - Maximum
10
PO - Adjustment of approach speed during opening [V]
Indicates the speed from the end of the deceleration ramp to the end
of the opening stroke
03 - Minimum
10 - Maximum
NOTE:
gradually increase the approach speed if there is a series of quick
vibrations (chattering) in heavy gates installed with a slight incline.
See paragraph 11.2.1
PC - Adjustment of approach speed during closing [V]
Indicates the speed from the end of the deceleration ramp to the end
of the closing stroke.
03 - Minimum
10 - Maximum
See paragraph 11.2.1
OO - Obstacle detection limit during opening [%]
Indicates the percentage of the distance travelled during
or
after the detection of the opening limit switch
on which
the disengagement is deactivated.
NOTE: not active if
or if .
99
OC - Obstacle detection limit during closure [%]
Indicates the percentage of the distance travelled during
or
after the detection of the closing limit switch
on which
the reversal is deactivated.
NOTE: not active if
and if .
99
BA - Basic adjustment
See paragraph 11.2.1
