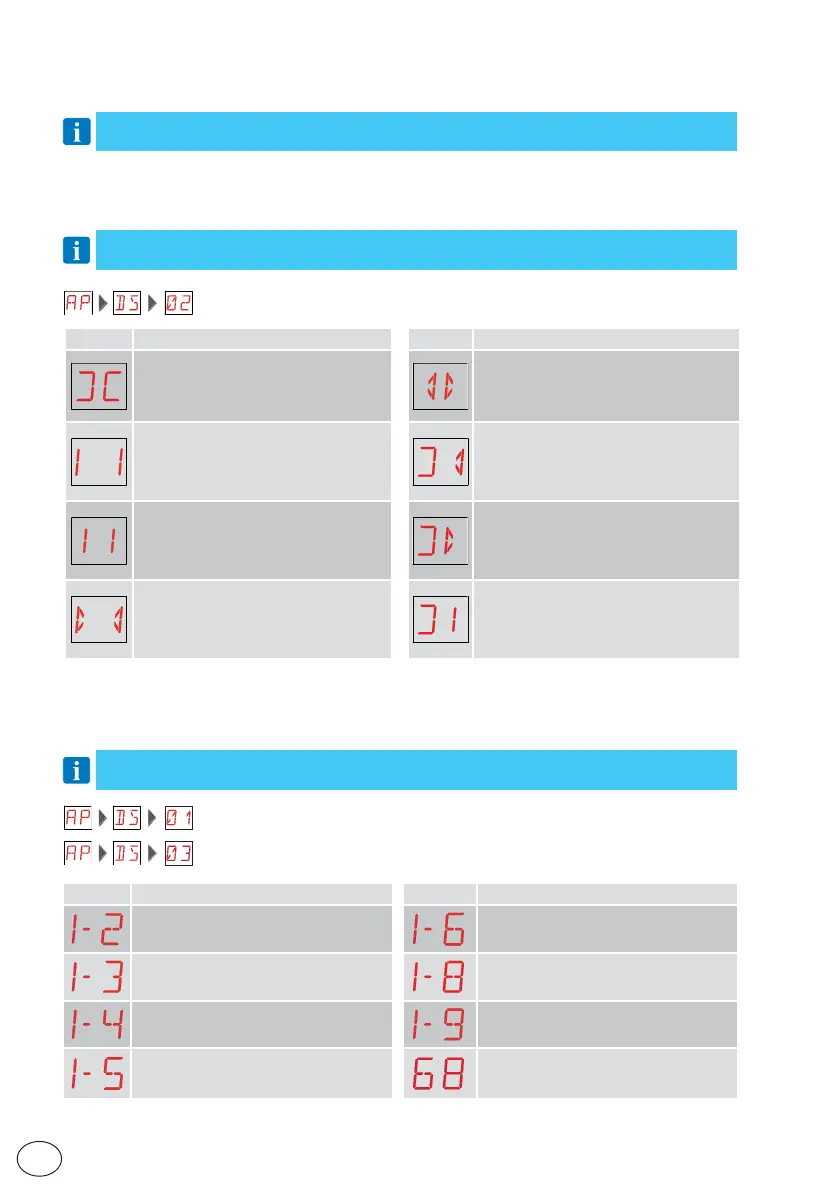

13. Signals visualised on the display
NOTE: depending on the type of automation and control panel, certain visualisations
may not be available.
13.1 Display of automation status
NOTE: the automation status display mode is only visible with Display visualisation mode
set to 02.
Display Description Display Description
Automation closed Automation opening
Automation open Automation closing, from partial opening
Automation stopped in intermediate
position
Automation in partial opening
Automation closing Automation partially open
13.2 Display of safety devices and commands
NOTE: the safety device and command visualisation mode is only visible with Display
visualisation mode set at 01 or 03.
Display Description Display Description
1-2 - Automatic closing activation com-
mand
1-6 - Safety device with opening and clos-
ing stop
1-3 - Opening command 1-8 - Safety with closing reversal
1-4 - Closing command 1-9 - STOP command
1-5 - Step-by-step command 68 - Selection of the device simultane-
ously connected to terminals 1-6 and
1-8
