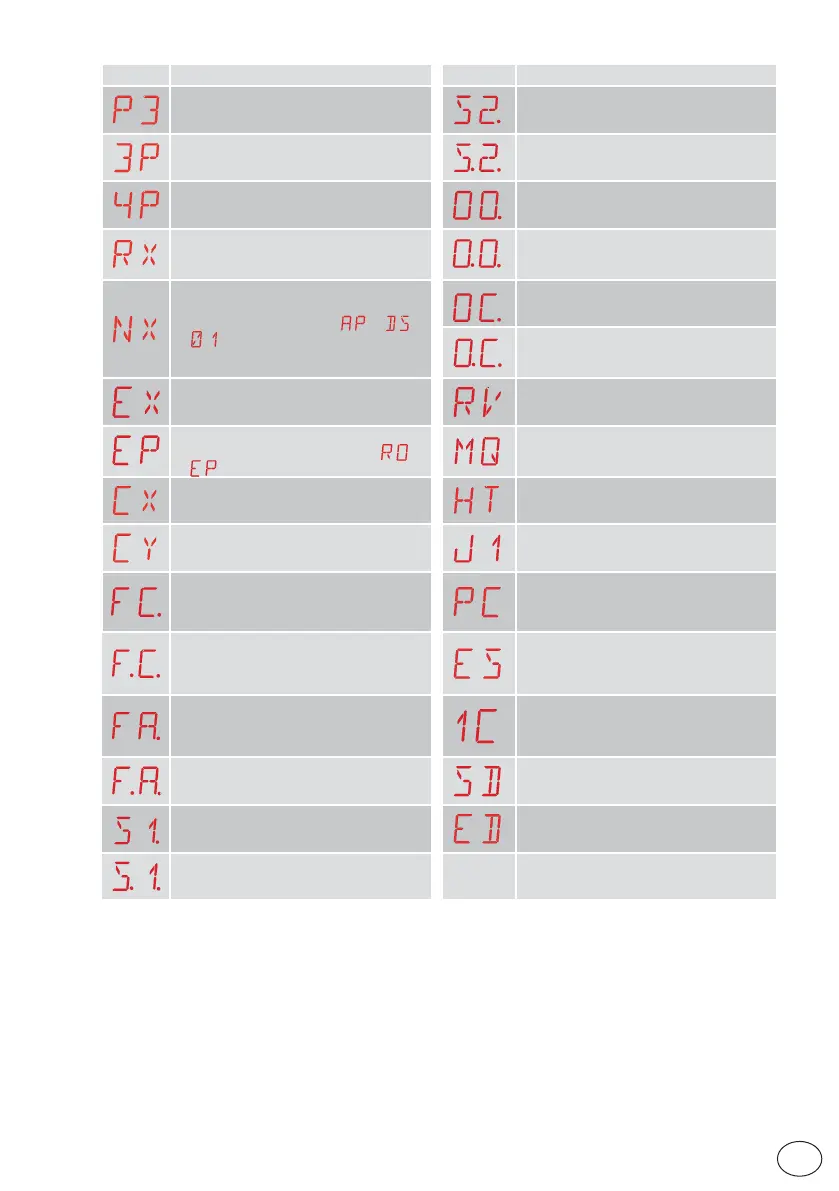

Display Description Display Description
P3 - Partial opening command S2. - Detection of stop during opening -
motor 1
3P - Opening command with operator
present
S.2. - Detection of stop during opening -
motor 2
4P - Closing command with operator
present
OO. - Reaching of obstacle detection limit
during opening - motor 1
RX - Radio reception (of any memorised
key of a transmitter present in the
memory)
O.O. - Reaching of obstacle detection lim-
it during opening - motor 2
NX - Radio reception (of any non-memo-
rised key)
NOTE: with the selection
→ →
, it is also visualised when a com-
mand is received from a non-stored
transmitter.
OC. - Reaching of obstacle detection limit
during closing - motor 1
O.C. - Reaching of obstacle detection lim-
it during closing - motor 2
EX - Rolling-code radio reception out of
sequence
RV - Enabling/disabling of built-in radio
receiver via RDX
EP - Radio reception not complying with
the parameter configuration
→
MQ - Learning operation of mechanical
end stops in progress
CX - Command received from AUX1 board HT - Heating of the motors (NIO function)
in progress
CY - Command received from AUX2 board JR1 - Variation of the JR1 jumper status
FC. - Closure limit switch - motor 1 PC - Recognition of connected HOST
(Personal Computer)
F.C. - Closure limit switch - motor 2 ES - Switch to Green Mode (energy-sav-
ing)
FA. - Opening limit switch - motor 1 1C - Closing operation (1 gate wing at a
time)
F.A. - Opening limit switch - motor 2 SD - Recognition of microSD card
S1. - Detection of stop during closure -
motor 1
ED - Log storage on microSD
S.1. - Detection of stop during closure -
motor 2
