25
IP2246EN
EN

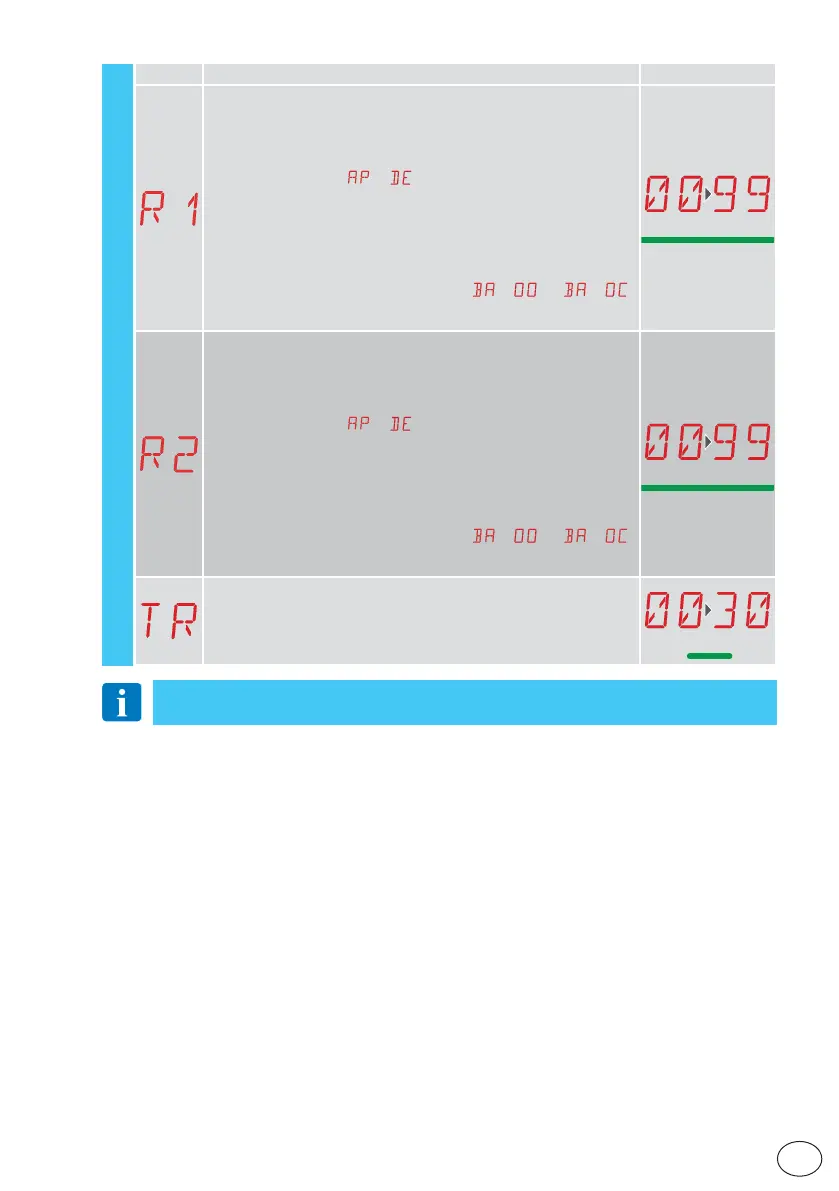

Display Description Selections available
R1 - Adjustment of thrust on obstacles and current - motor 1 [%]
The control panel is fitted with a safety device which, when it detects
an obstacle:
- stops the opening movement and, if outside the limit area for detect-
ing obstacles, performs a disengagement operation whose dura-
tion can be set with
;
- reverses the movement during closure operations outside the limit
area for detecting obstacles;
- stops the movement during closure operations within the limit area
for detecting obstacles.
The limit area for detecting obstacles during opening and closing is de-
termined by the type of limit switch installed. If there is no limit switch, it
is determined on the basis of the selections
and .
00 - Minimum thrust
99 - Maximum thrust
See paragraph 11.2.1
R2 - Adjustment of thrust on obstacles and current - motor 2 [%]
The control panel is fitted with a safety device which, when it detects
an obstacle:
- stops the opening movement and, if outside the limit area for detect-
ing obstacles, performs a disengagement operation whose dura-
tion can be set with
;
- reverses the movement during closure operations outside the limit
area for detecting obstacles;
- stops the movement during closure operations within the limit area
for detecting obstacles.
The limit area for detecting obstacles during opening and closing is de-
termined by the type of limit switch installed. If there is no limit switch, it
is determined on the basis of the selections
and .
00 - Minimum thrust
99 - Maximum thrust
See paragraph 11.2.1
TR - Motor delay time [s]
Delay time for closure of gate wing 1 in relation to gate wing 2.
00-30 s
10
NOTE:
make adjustments gradually and only after performing at least three complete oper-
ations to allow the control panel to be set correctly and detect any friction during operations.
BA - Basic adjustment
