4.4 IPRO.LINK (IPL500D)

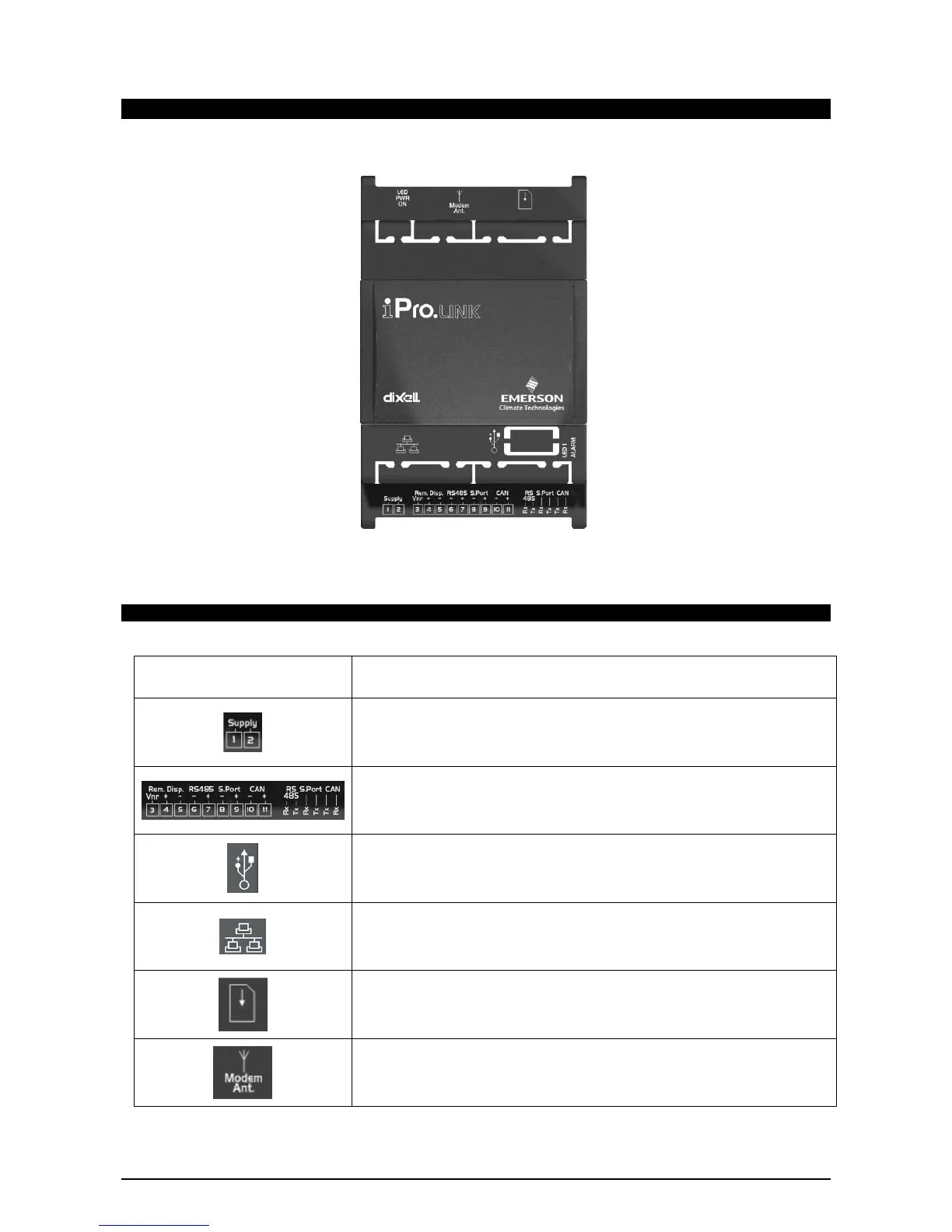

4.4.1 Description of the connections
Connector Description
Connector for 24Vac/dc power supply
Connector for remote terminal (VISOGRAPH), maximum 1 terminal per iPRO.
RS485 Slave connector
Serial port connector (LAN or RS485)
CANBUS connector (for expansion and driver for electroni expansion valve)
Communication leds
USB port for downloads (BIOS, ISaGRAF® application, maps of parameters, remote
display applications, network configuration, website) and uploads (log files)
Ethernet port for TCP/IP connections
SIM CARD slot (only for version with GPRS modem)
Connection for GPRS modem antenna
