1592025700 IPROFAMILY stp GB 2012.08.08.doc iPro Series 59/72
7.3.5 Probes and transducers with 24Vac/dc power supply
3 or 4-row sensors that require +24Vac/dc power supply

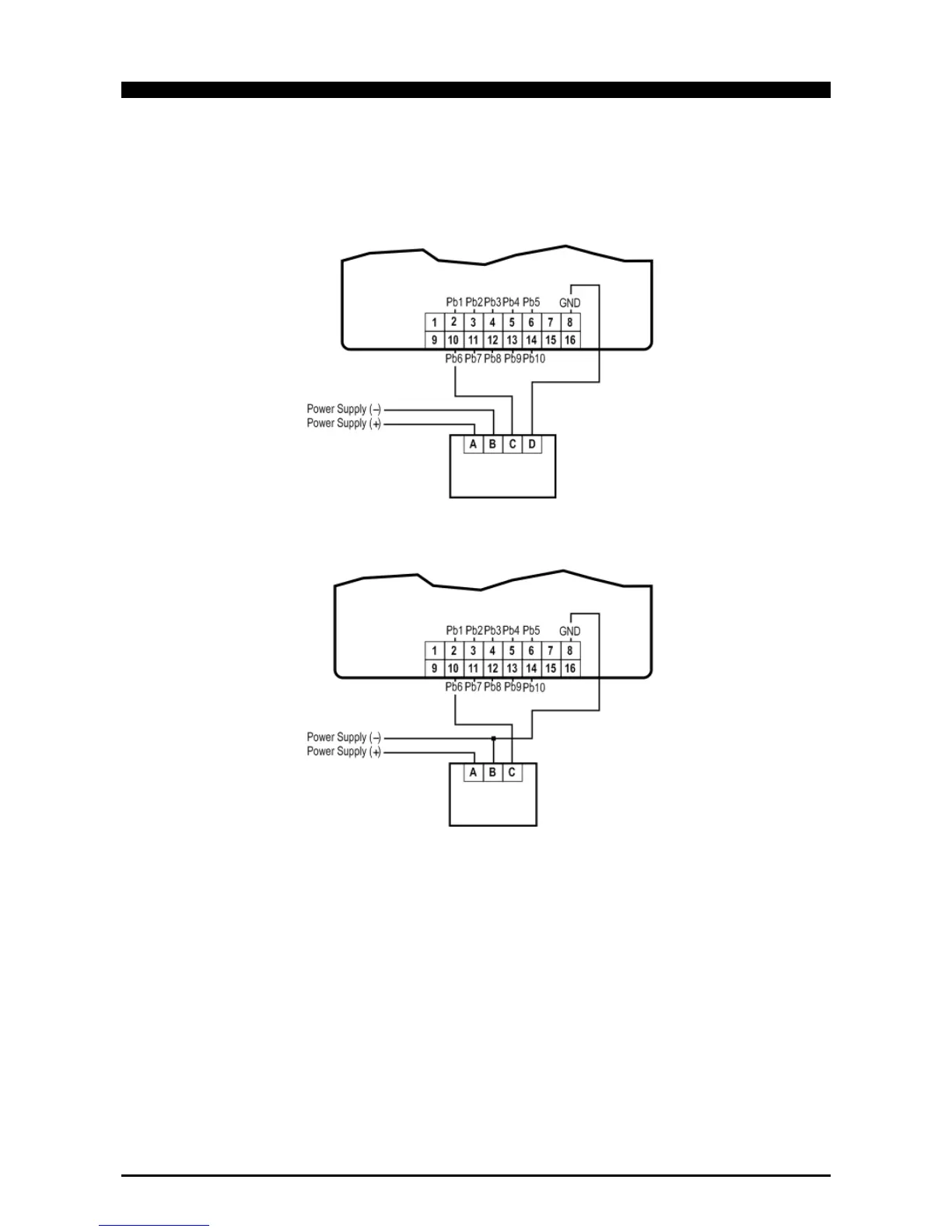

Each sensor must be connected through one of the inputs (from Pb1 to Pb10), whereas the power supply as
shown in the diagram below.
This is an example for versions IPG-IPC.
For all the others version, verify the correct number of the pin in the connector.
Recommendations:
- respect the “+” and “-“ polarities of the power supply.
- the power supply of the sensor must be separate from that of the programmable controller
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
