dixell iPro SERIES User Manual

1592025700 IPROFAMILY stp GB 2012.08.08.doc iPro Series 33/72

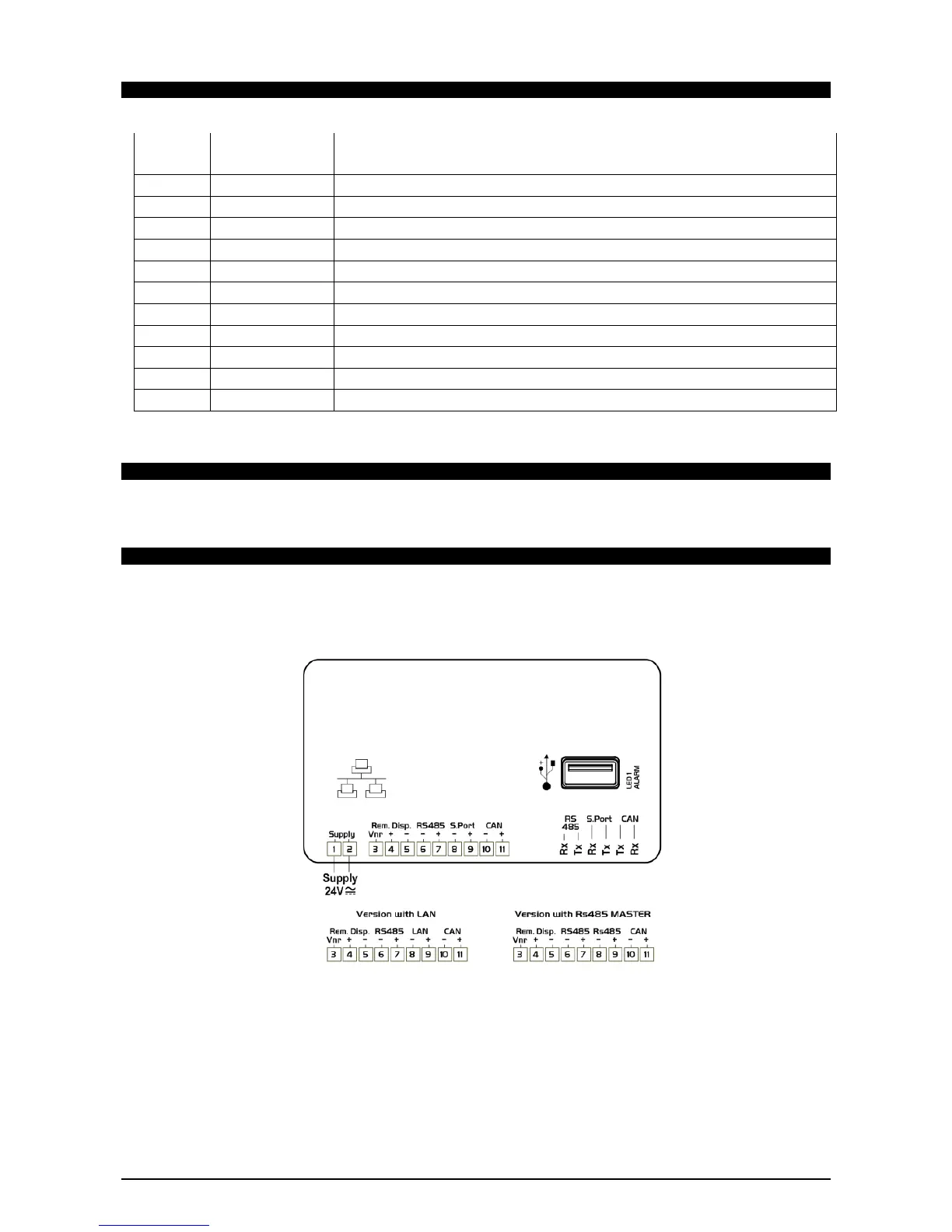

4.4.2 Description of the inputs and outputs
Input
No.
Type of Input Description
1 Supply Reference “-“/GND power (24Vac or 24Vdc)
2 Supply Reference “+“ power supply (24Vac or 24Vdc)
3 Remote Display Connection for VISOGRAPH remote terminal (Vnr)
4 Remote Display Connection for VISOGRAPH remote terminal (+)
5 Remote Display Connection for VISOGRAPH remote terminal (-)
6 RS485 Slave RS485 Slave connection (-)
7 RS485 Slave RS485 Slave connection (+)
8 Serial Port LAN or RS485 MASTER Connection (-) – depend on the model
9 Serial Port LAN or RS485 MASTER Connection (+) – depend on the model
10 CAN CANBUS connection (-)
11 CAN CANBUS connection (+)
4.4.3 Technical specifications
4.4.3.1 Wiring diagrams
