1592025700 IPROFAMILY stp GB 2012.08.08.doc iPro Series 58/72

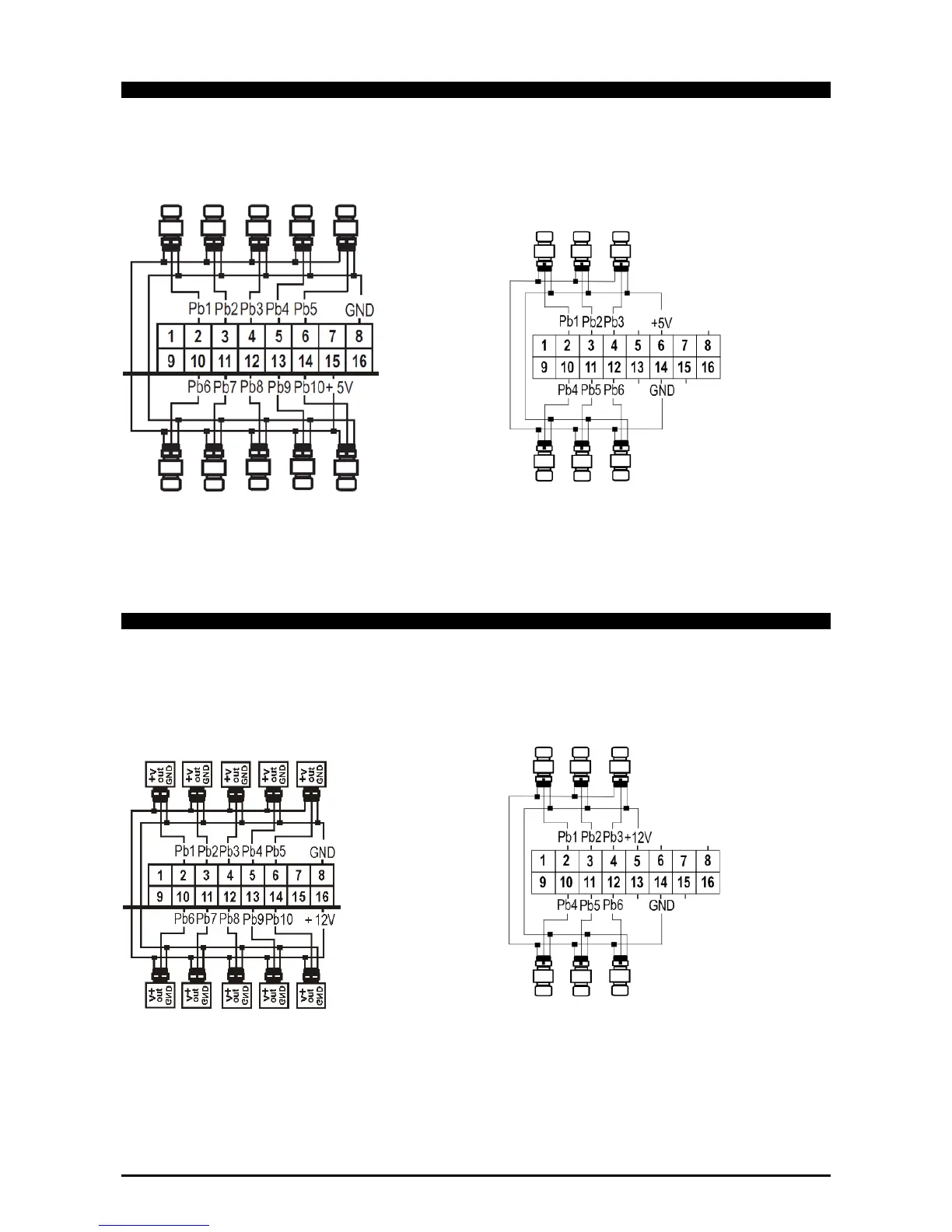

7.3.3 Pressure transducers and ratiometric pressure transducers (0 - 5V)
3-row sensors that require +5Vdc power supply.
Each sensor must be connected through one of the inputs (from Pb1 to Pb10) and the power supply
(+5V/GND) as shown in the diagram below.
IPG-IPC IPG-IPC 4 DIN
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
7.3.4 Live probes (0 - 1V, 0 - 5V, 0 - 10V)
3-row sensors that require +12Vdc power supply.
Each sensor must be connected through one of the inputs (from Pb1 to Pb10) and the power supply
(+12V/GND) as shown in the diagram below.
IPG-IPC IPG-IPC 4 DIN
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
