1592025700 IPROFAMILY stp GB 2012.08.08.doc iPro Series 40/72
4.6 IPX125D – IPX115D

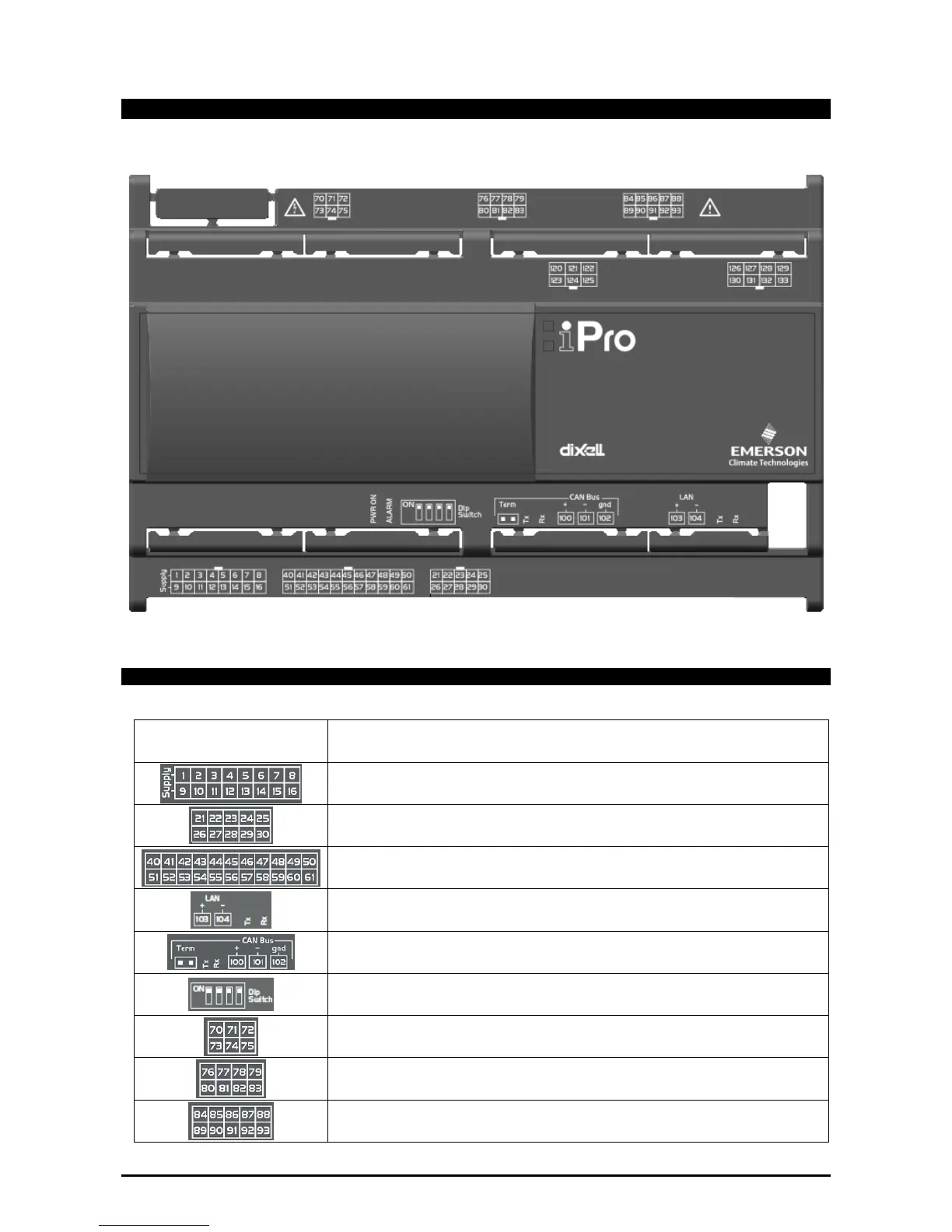

4.6.1 Description of the connections
Connector Description
Connector for 24Vac/dc power supply
Analogue inputs (Pb1 - Pb10, PbC)
Additional power (+5Vdc, +12Vdc, GND)
Opto-insulated analogue outputs (Out1 - Out6, GND)
24Vac/dc power supply for the opto-insulated analogue output
Potential free opto-insulated digital inputs (DI1 - DI20, DIC)
Opto-insulated 24Vac/dc digital inputs (DI1 - DI20, GND)
LAN serial port connector
Rx and Tx LED to indicate that communication is active
CANBUS Connector
Rx and Tx LED to indicate that communication is active
Closed circuit terminal (Term)
Dip-switch to set the address of the device.
Digital relay outputs
3 NO relays + 1 changeover relay, 1 common
Digital relay outputs
6 NO relays, 2 common
Digital relay outputs
3 NO relays + 2 changeover relays, 3 common
