1592025700 IPROFAMILY stp GB 2012.08.08.doc iPro Series 64/72
7.5.4 Devices with 24Vac/dc power supply
3 or 4-row devices that require +24Vac/dc power supply
Each device must be connected through one of the outputs (from Out1 to Out6), whereas the power supply

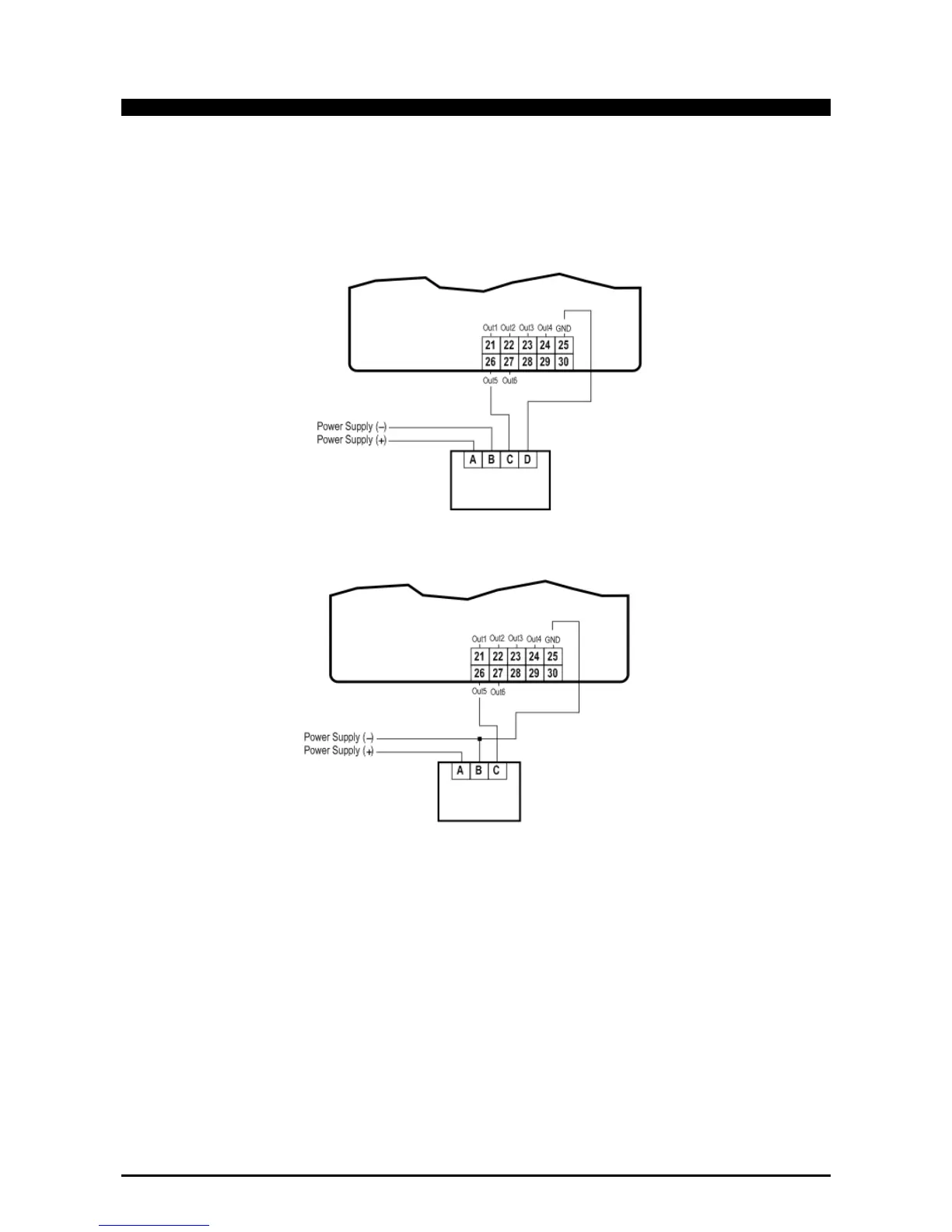

as shown in the diagram below.
This is an example for versions IPG-IPC.
For all the others version, verify the correct number of the pin in the connector.
Recommendations:
- respect the “+” and “-“ polarities of the power supply.
- the power supply of the device must be separate from that of the programmable controller
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
