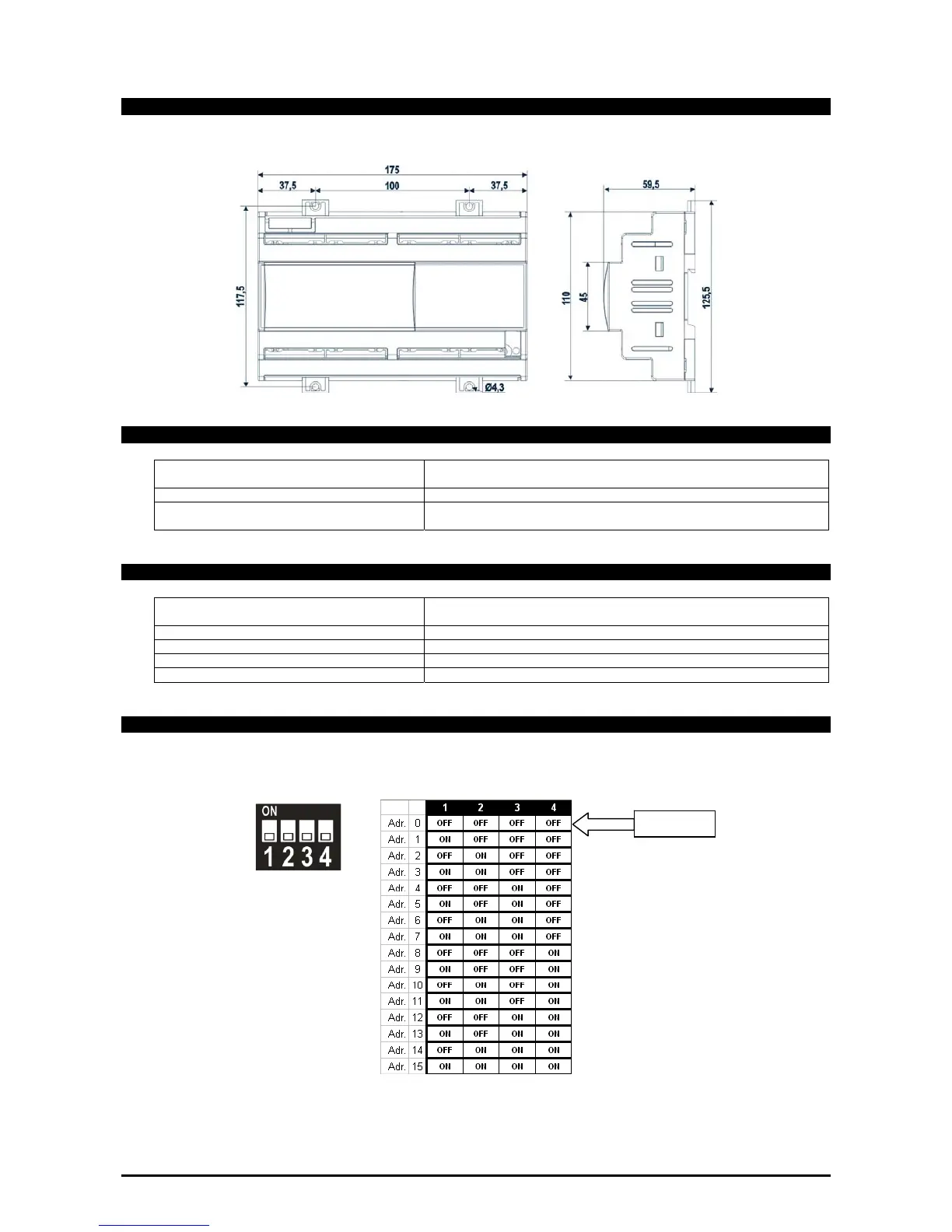

4.7.3.6 Mechanical specifications
10 DIN module
4.7.3.7 Electrical specifications
Power Supply: 24Vac +10/-15%, 50/60Hz
20 - 36Vdc
Consumption: 20VA (Vac), 15W (Vdc)
Connectors: Phoenix quick coupling connectors for low voltage
STELVIO 90° screw connectors for digital outputs (250Vac, 6A max)
4.7.3.8 Plastic container
Mount: On a DIN rail (EN 50022, DIN 43880)
Fastened with screws via the removable plastic flaps.
Material: PC-ABS Thermoplastic
Self-extinguishing: V0 (UL94)
Comparative Tracking Index (CTI): 300V
Colour: White
4.7.3.9 Setting the address of the device
The address of the device is set via a dip-switch and numbering is binary as shown in the table
below:
If the address is changed while the device is switched on, to confirm the new address
remember to switch off and switch on again the device.
Notused
