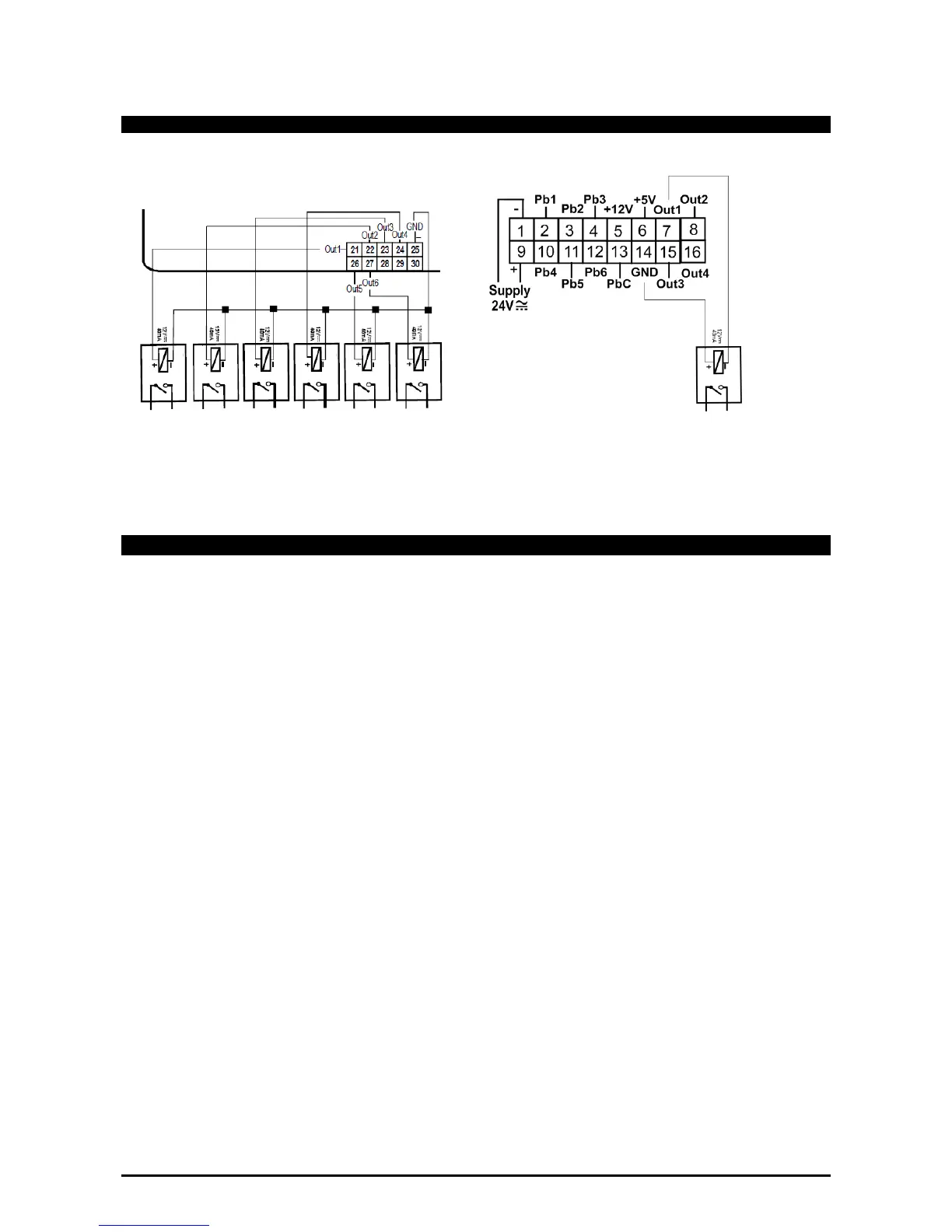

7.5.5 Analogue output for relays (coil power supply 12Vdc)
IPG-IPC IPG 4 DIN
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
7.6 CONNECTION OF THE DIGITAL OUTPUTS
Depending on the model, the digital outputs can have different connection specifications.
The relays have been split into groups, each with a separate common.
The same voltage must always be used for the various groups of relays and within each group.
For the electrical specifications, refer to the relative paragraphs of the different models.
Certain models have SSR relays (solid state relay), which are suitable to control devices where numerous
commutations are required, which would not be supported by an electromechanical relay. For the electrical
specifications, refer to the specifications of the model using such relays.
