1.4 Memory Chip Replacement
The 1802 is shipped with the memory chip already installed in the unit.
However, if you need to replace the chip,
follow the instructions below.
DO NOT install the memory chip with power to the telephone entry system turned ON. Attempting to install the memory
chip with power on will irrevocably damage the chip. Memory chip is a static sensitive component. Discharge any static
electricity from your hands by touching a proper ground device before touching the control board. Handle the memory chip with
care, the pins bend easily.
DO NOT install the memory chip UPSIDE DOWN. this will cause permanent damage to the chip. Be sure that the memory
chip is seated correctly in the socket.
CAUTION

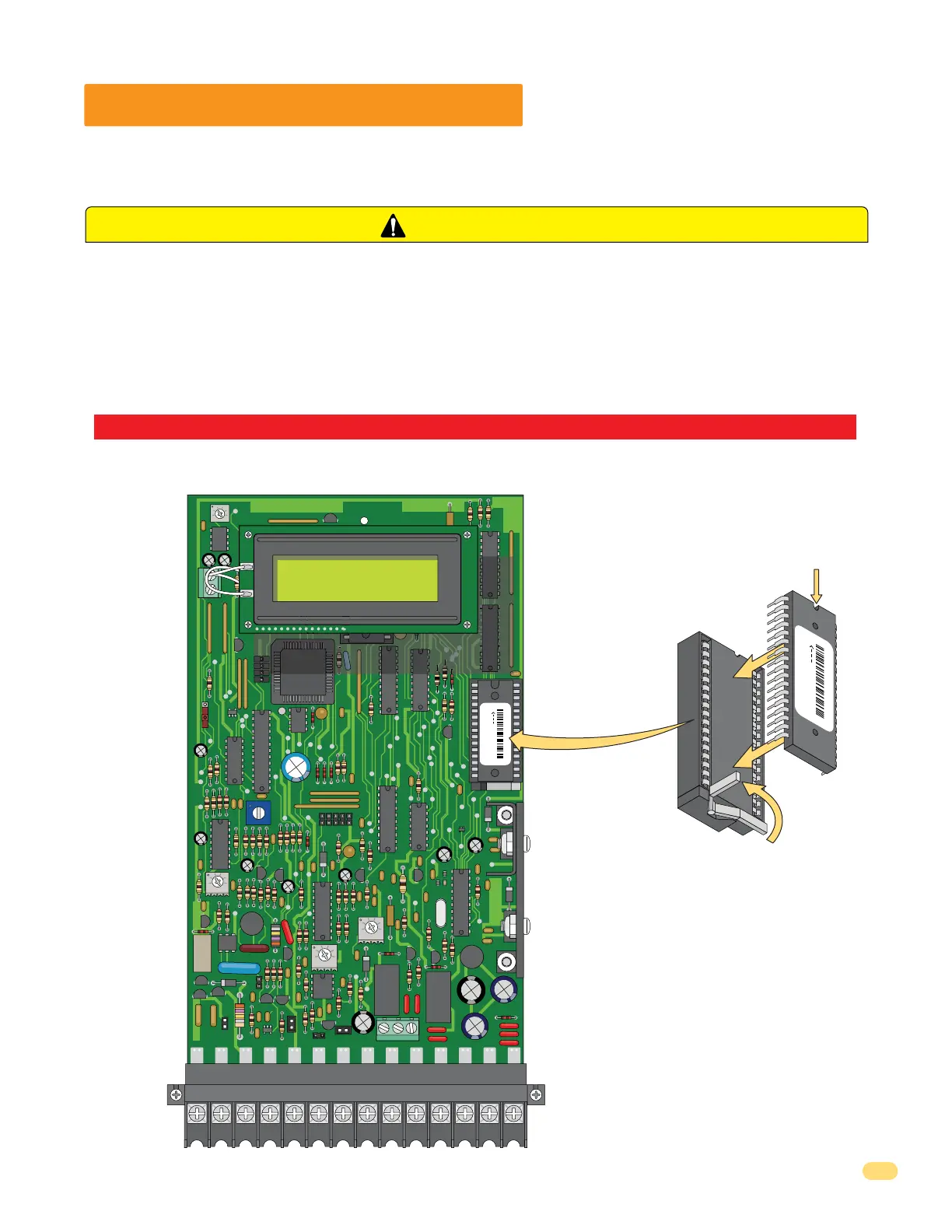

1862-010 Circuit Board Memory Chip Location
Locked
Release
Power MUST be OFF to the Circuit Board!!
Discharge any static electricity from your hands by touching a proper ground device before installing chip!
Dimple MUST be at
the top of the chip!
1810-075
sn XX
THIS SIDE UP
0000010100010
1810-075
sn XX
THIS SIDE UP
0000010100010
