DKS 1802 - Terminal Descriptions; Telephone Entry System Wiring and Adjustments

1802-065-D-10-14
15
RING
CLCK
SENSE
SPK
VOL
FEEDBACK
MIC VOL
KEYPAD
321
321
321
NO
HS
TONE
OFF
TONE
ON
HF
NC C
Phone Line Connection
16AC16ACBAT NC NOC
SPKR COMMICGPSWCGNDPHONE
1234567891011121314

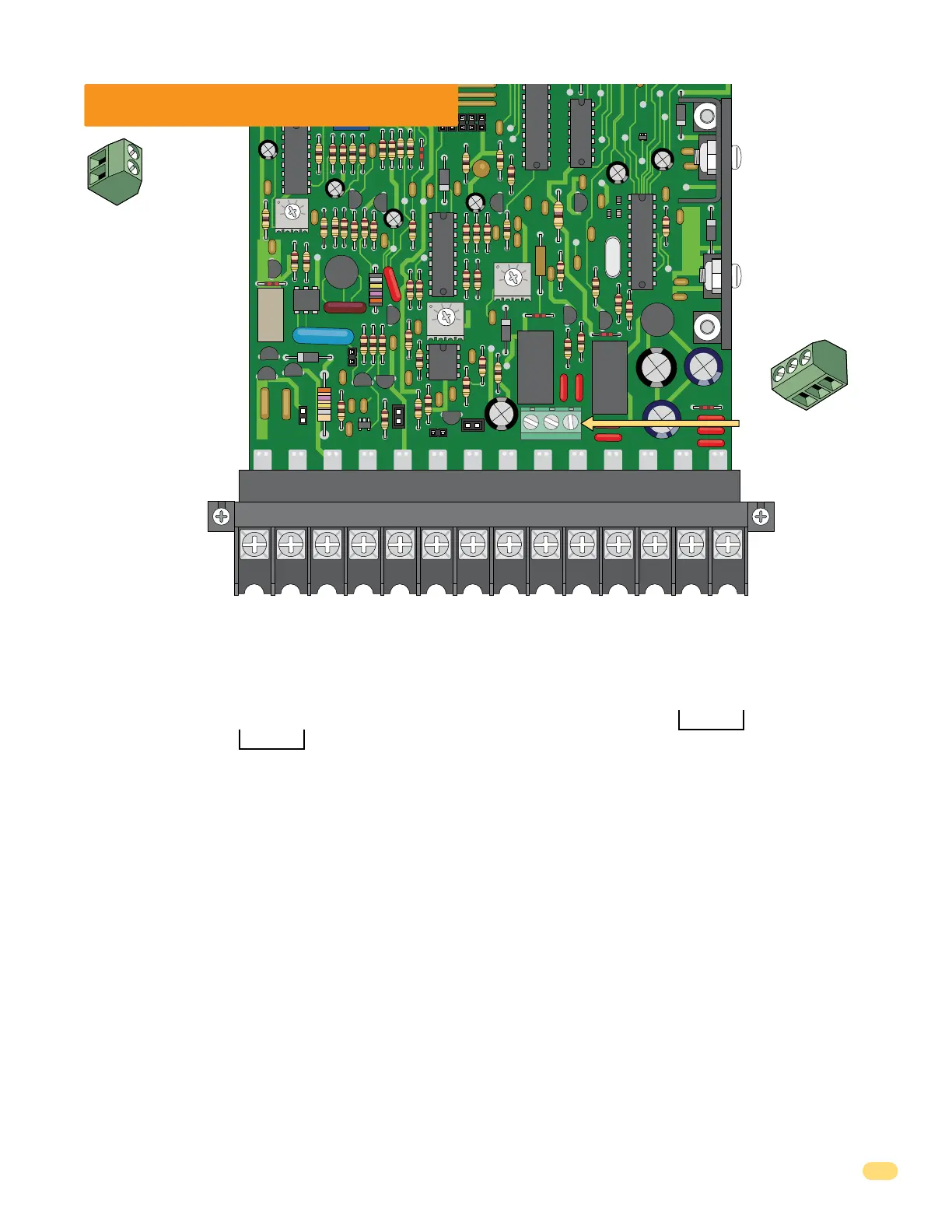

Main Terminal
16 VAC Input Power
20 VA Minimum
16 VAC Input Power Back-up Battery POSITIVE (12 VDC) (connect negative to terminal 8) Relay 1 Normally Open – 30 Volt, 3 Amp max. Relay 1 Normally Closed – 30 Volt, 3 Amp max. Speaker Output (Purple Wire). Relay 1 Common Common for Switch Input 1 terminal #4, speaker, Back-Up Battery NEGATIVE (12 VDC) Microphone ground Input (White Wire).
MIC
Microphone Input (Green Wire). Switch Input 1. A closure between terminals 4 and 8 will cause Relay 1 to activate for the programmed strike time or dial a preprogrammed phone number – see section 3.1.8. Postal Switch connection. Earth Ground Only (See Section 2.1.3). NOT a low voltage common. Phone Line Connection
Switch Input 2
Terminal
Non-Removable
Relay 2 Terminal
Non-Removable
100 ft. max. with 18 AWG wire. 200 ft. max. with 16 AWG wire. Install ferrite filter on these wires - see section 2.1.5.
800 ft. max. with 24 AWG wire. 1600 ft. max. with 22 AWG wire. (Wiring MUST be twisted and isolated from the ground)
Located in the
upper left corner
of circuit board.
NO
NC
C
Normally Open – 30 Volt, 3 Amp max. Normally Closed – 30 Volt, 3 Amp max. Common – 30 Volt, 3 Amp max.
A closure between these
terminals will cause Relay 2
to activate for the
programmed strike time or
dial a preprogrammed
phone number (see section
3.1.8).
2
1
2.2 Terminal Descriptions
