1802-065-D-10-14
44
RING
ON
CLCK
SENSE
SPK
VOL
FEEDBACK
MIC VOL
OFF
KEYPAD
321
321
321
MASTER
CODE
NO
HS
TONE
OFF
TONE
ON
HF
NC C
CONTRAST
DOORKING 1862-010
16AC16ACBAT NONCC
COMSPKR
MICMICGPSWCGND
PHONE
5.3 Accessories

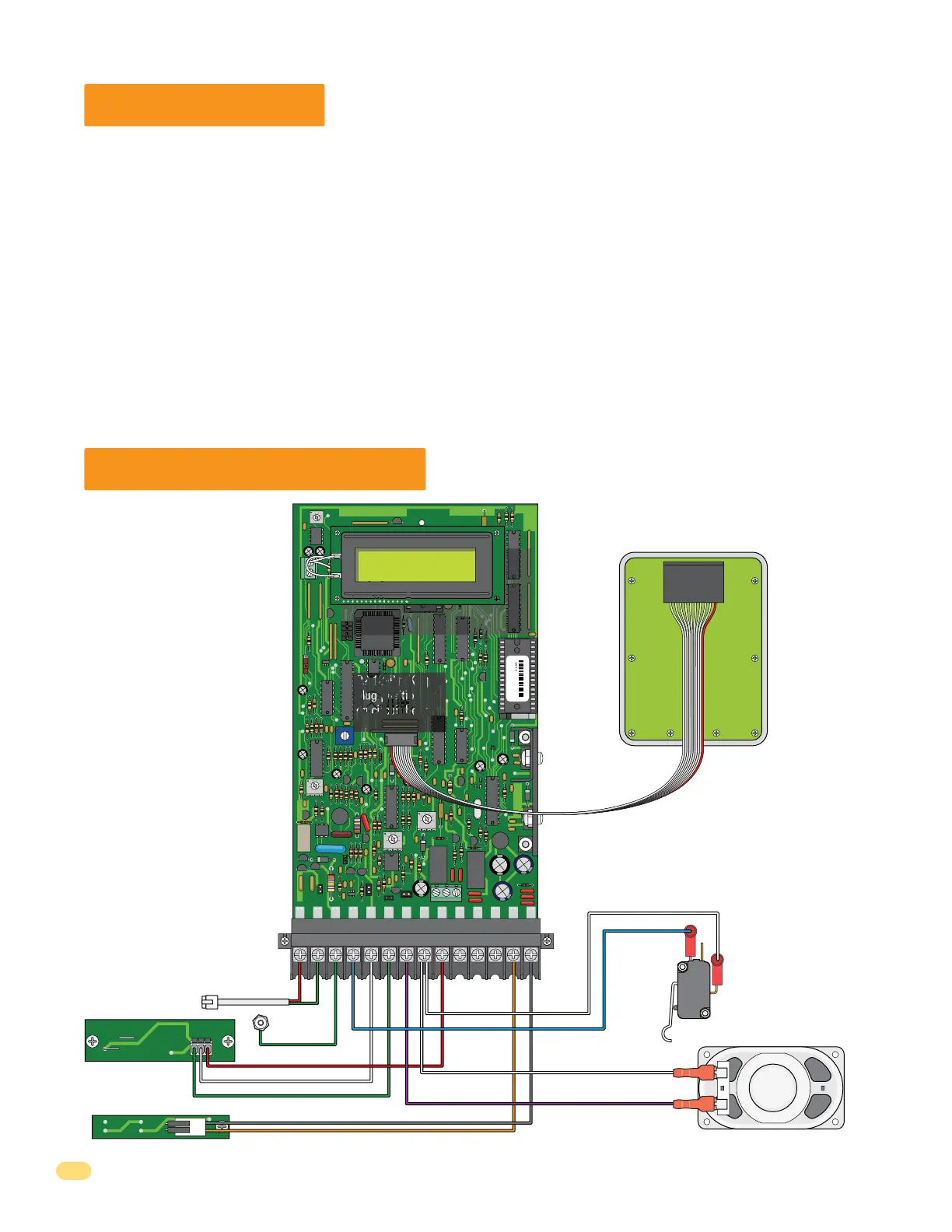

1802 Wiring Schematic
Keypad
Microphone
1998-010
LED Keypad Light
Speaker
Purple
Blue
White
White
Gray
Red
Orange
White
Green
CLCK
K
CK
L
P2 10-Pin Keypad
plug position
on circuit board -
Red wire left.
Postal Lock
Switch (Switch Input 1)
Green
Ground
Phone Line
Red
Wire
Right
1810-075
sn XX
THIS SIDE UP
0000010100010
Surge Suppressors
Phone line suppressor. P/N 1877-010.
Low voltage (28 V) suppressor. P/N 1878-010.
High voltage (115 V) suppressor. P/N 1879-080.
1802 Adapter Plate
Needed when mounting to mounting posts. P/N 1802-111.
Mounting Posts & Kiosk
Off-Set pad mount. P/N 1200-036.
Standard goose-neck, pad mount. P/N 1200-045.
Standard goose-neck, In-ground mount P/N 1200-046.
Standard dual-mount. P/N 1200-049.
Self-standing Kiosk. P/N 1200-160.
Telephone Test Set
Includes clips, cord and carrying case. P/N 1800-050.
Back-Up Battery
12 volt .8 amp hour gel cell provides stand by power during
power interruptions. P/N 1801-008.
1802EPD Heater Kit
Allows the 1802EPD Telephone Entry System LCD display to
maintain normal operation to approximately -20°F (-29°C).
P/N 2600-582.
1802EPD CCTV Camera Kit
High resolution color camera kit. P/N 1812-145.
Secondary Keypads: Allows remote activation of the system
relays by use of the access codes. Does not provide any voice
communication to the main unit or to the resident telephone.
P/N 1812-082 (surface mount); P/N 1812-197 (flush mount)
