DKS 1802 - Master Code Switch; Ring Pin Jumper; Hands Free - Hand Set Jumper

1802-065-D-10-14
16
RING
ON
CLCK
SENSE
SPK
VOL
FEEDBACK
MIC VOL
OFF
KEYPAD
321
321
321
MASTER
CODE
NO
HS
TONE
OFF
TONE
ON
HF
NC C
CONTRAST
DOORKING 1862-010
16AC16ACBAT NONCC
COMSPKR
MICMICGPSWCGND
PHONE
1810-075
sn XX
THIS SIDE UP
0000010100010

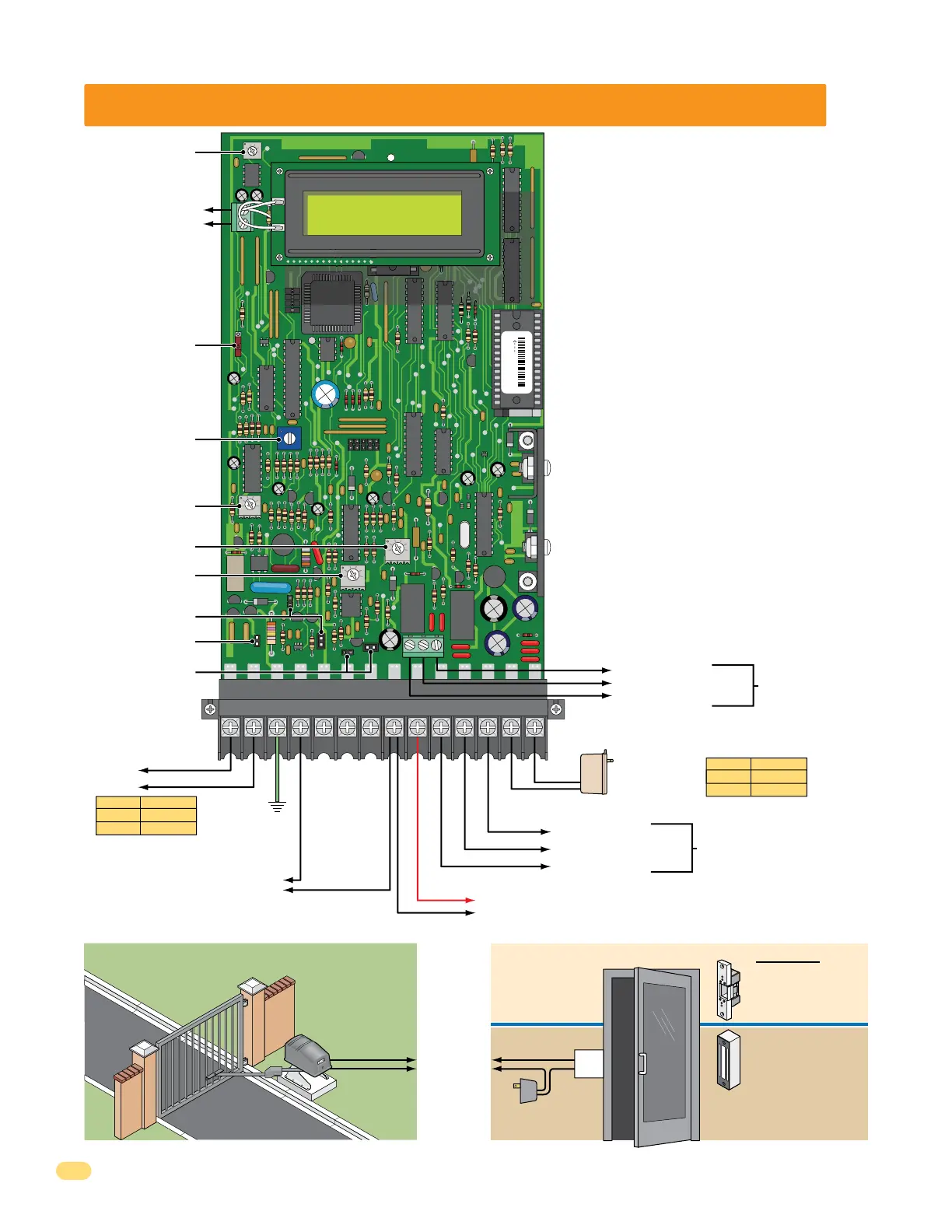

2.3 Telephone Entry System Wiring and Adjustments
Door ControlGate Control
Main Terminal
Door Locks
Gate Operator
Power for electric strike or magnetic
lock is NOT provided by the system.
Use separate UL listed power supply.
Magnetic lock is wired to
the Normally Closed (NC)
relay input.
“BAT” - 12 VDC Back-Up Battery Input
Back-up battery power for the telephone entry system.
Electric strike is wired
to Normally Open (NO)
relay input.
Gate Operator
is wired to
Normally Open
(NO) relay
input.
Lock Power
UL listed
To a Relay Input
To a
Relay Input
Door
Lock
Wiring MUST be twisted and
completely isolated from ground.
See section 2.1.4.
“PSW” Switch Input 1 -
See section 1.6 for Postal lock connection.
A switch closure across these terminals activates
Relay 1 for its programmed strike time or dials a
preprogrammed phone number.
See section 3.1.8 Switch Input Feature.
Switch Input 2 -
A switch closure across these
terminals activates Relay 2 for
its programmed strike time or
dials a preprogrammed phone
number.
See section 3.1.8 Switch Input
Feature.
Note: LCD display must be
removed to access this terminal
with 1802EPD models.
“PHONE”
“PHONE”
Central Office
Phone Line Input
touch tone, loop start
“CGND”
Earth Ground
See section 2.1.3.
Black (Neg)
Red (Pos)
Relay Input 1
“NO” - Normally Open (NO)
“NC” - Normally Closed (NC)
“C” - Common (C)
Relay Input 2
“C” - Common (C)
“NC” - Normally Closed (NC)
“NO” - Normally Open (NO)
Power Input
16.5 VDC, 20 VA power.
See section 2.1.1.
20 VA
Wire Size Distance
18 AWG
16 AWG
Up to 100 ft
Up to 200 ft
Wire Size Distance
24 AWG
22 AWG
Up to 800 ft
Up to 1600 ft
LCD Display Contrast
Adjust
See 2.3.3
Master Code Switch
See 2.3.4
Speaker Adjust
See 2.3.1
Ring Pin Jumper
See 2.3.5
Tone On/Off Jumper
See 2.3.1
Handset/ Hands Free
Jumper
See 2.3.6
Microphone Adjust
See 2.3.1
Click Sensitivity
Adjust
See 2.3.2
Feedback Adjust
See 2.3.1
