DKS 6002 - Installation Dimensions

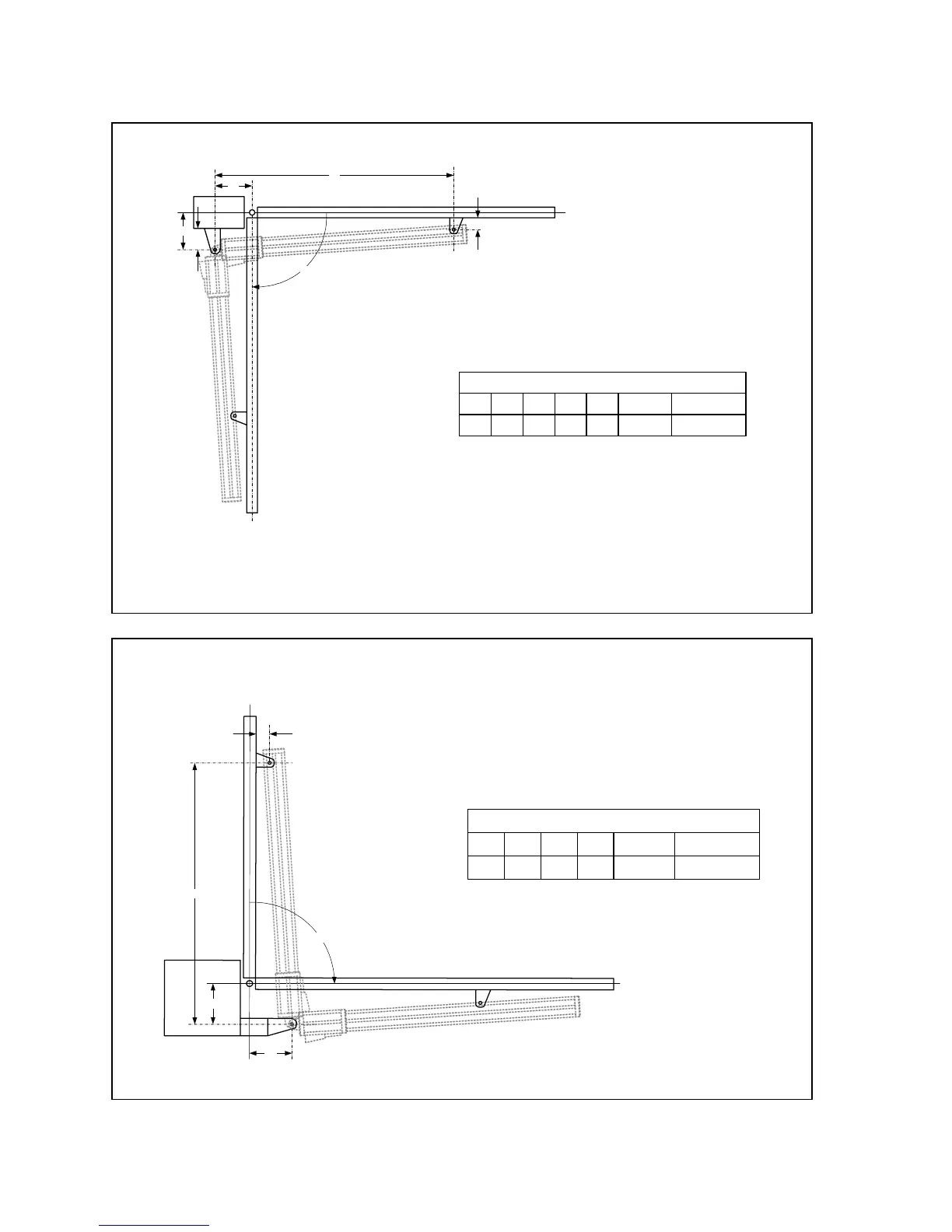

1.2 Installation Dimensions
OPEN TO THE INSIDE
Gate
Opened
Gate
Closed
X
L
90°
Note 1: MINIMUM Dimensions.
For Gates up to 14 Feet
A B L Y
1
X
1
90° / Sec Rod Stroke
7 7 46.75 2.62.6 20 14
B
A
Y
Figure 2
OPEN TO THE OUTSIDE
Note 1: MINIMUM Dimensions.
For Gates up to 14 Feet
A B L X
1
90° / Sec Rod Stroke
7 7 46.75 2.6 20 14
Gate Closed
Gate Open
90°
X
B
A
L
Figure 3
