4.3 Manual Release
The gate can be operated manually in the event of a power failure or malfunction by removing the
cover and inserting the release key.
NOTE: Never attempt to manually operate any gate with an operator attached to it until you
have verified that power to the operator has been shut-off.

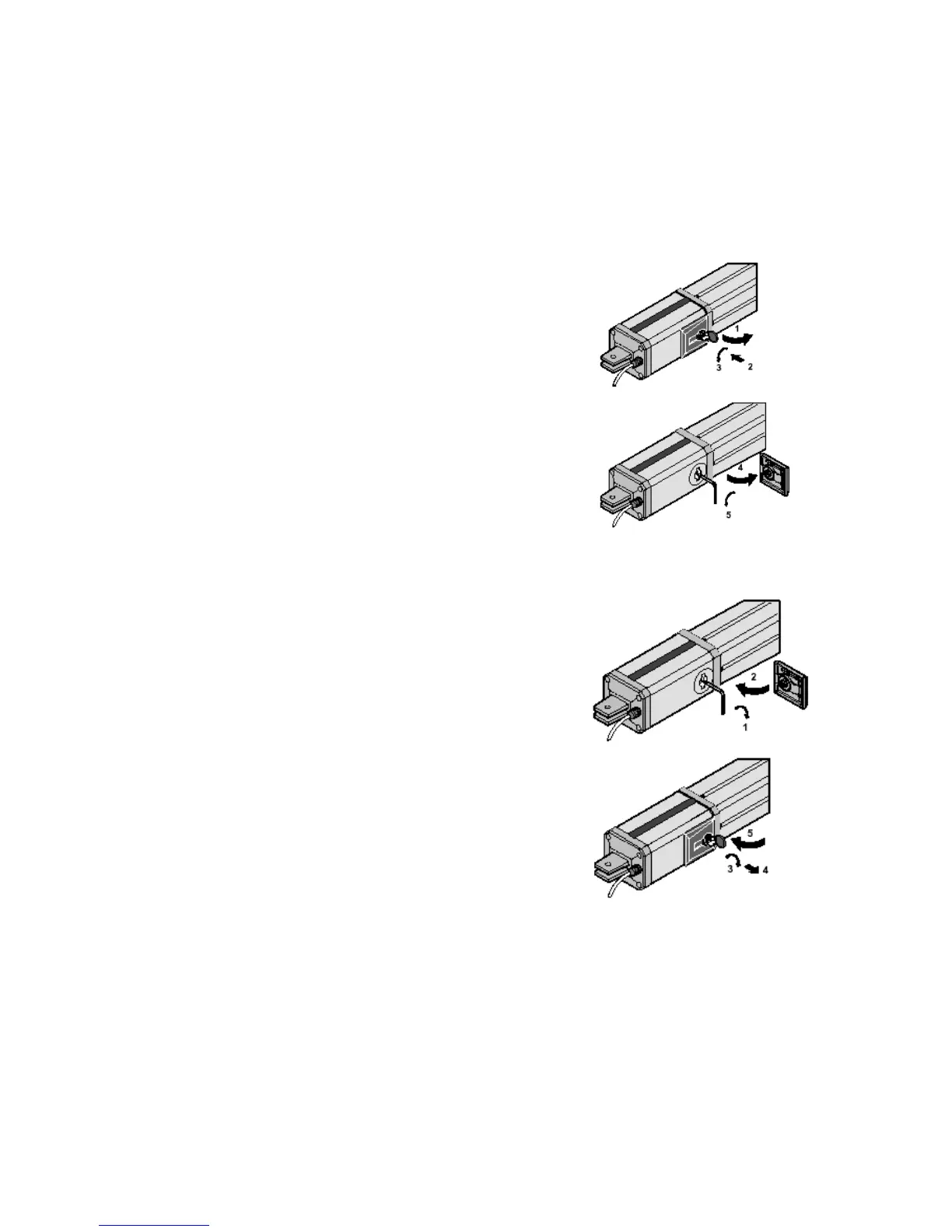

To Release the Actuator - Refer to Figure 21.
Figure 21
1. Open the key cover.
2. Insert the key.
3. Unlock the cover.
4. Open the cover and remove the allen wrench.
5. Insert the allen wrench into the release
mechanism and rotate it 90°.
6. The actuator is now in manual operation.
•
Returning to Normal Operation – Figure 22.
Figure 22
1. Insert the allen wrench into the release
mechanism and rotate it 90°.
2. Place the allen wrench back into the cover and re-
install the cover onto the actuator.
3. Lock the cover.
4. Remove the key.
5. Close the key cover.
6. The actuator is now in normal operation.
