2.2 Control Box
• Install the control box close to the gate so that the MASTER actuator cable can be easily
routed into the control box.
• Be sure that conduits are installed in accordance with local electrical codes.
4.0
16.25
1.25
2.0
.875 KO on hinge
side of cabinet
12.25
12.0
6.0
8.0
4.0
2.0
1.5
.875 KO
4-Places
1.125 KO
1-Place
.5
.5 11.0
3.0
5.0
7.0
1.25

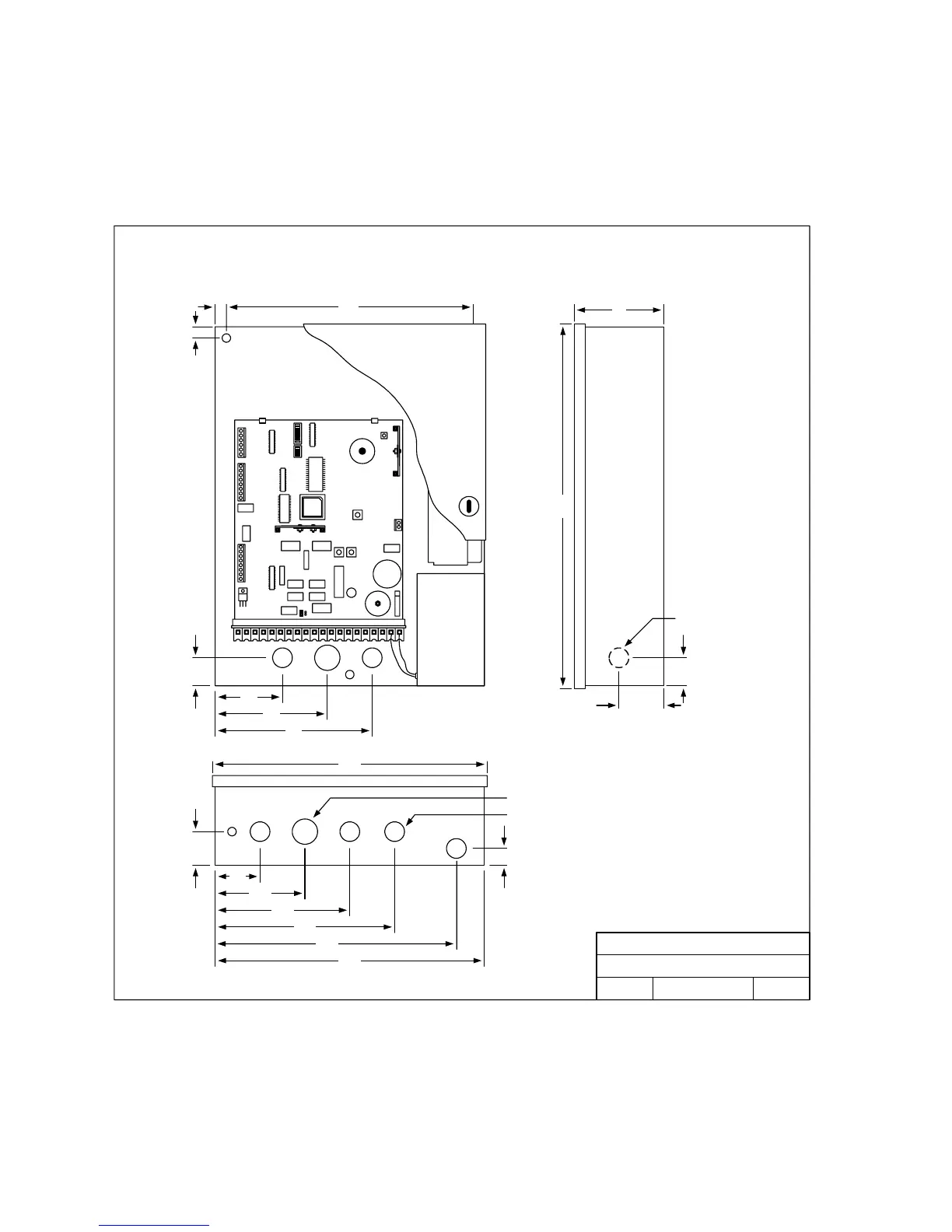

DOORKING, INC., INGLEWOOD, CA 90301
Title:
Date: Rev.Dwg. No.
Model 6002/6400 Control Mounting Dimensions
B
5/04 M6001-065-2
10.75
.75
Transformer
Housing
Figure 13
Page 18
